EFG Sapphire Tube – High-Performance Optical and Industrial Applications

Product Description:

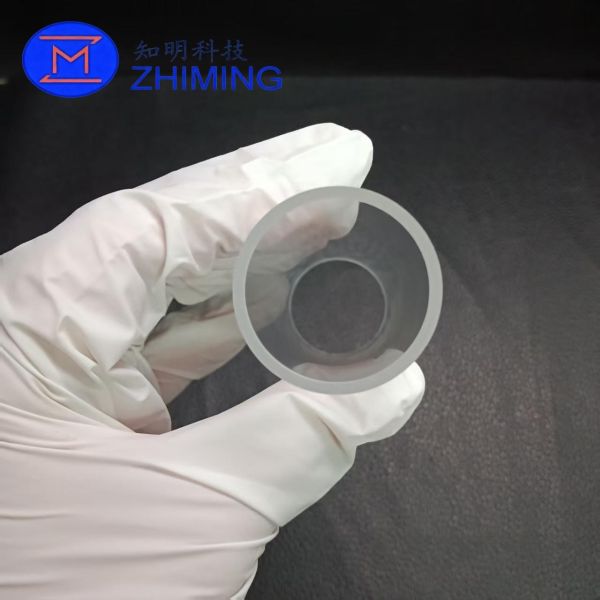

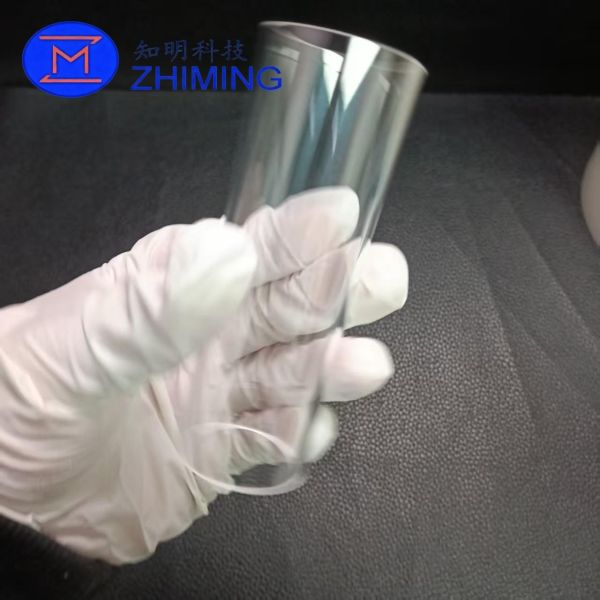

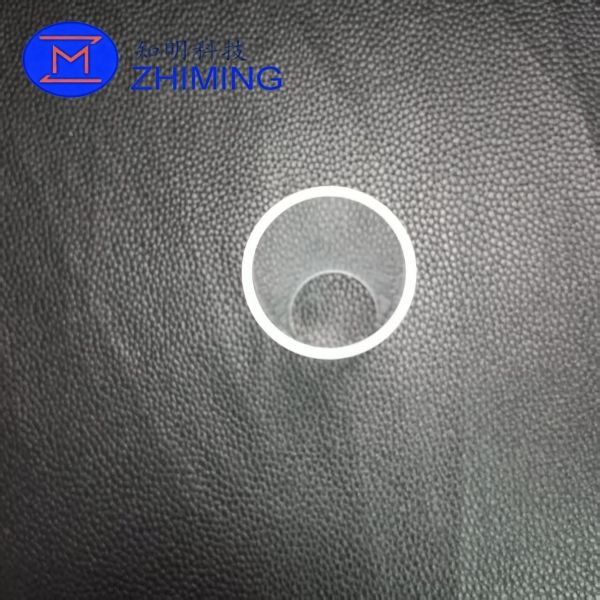

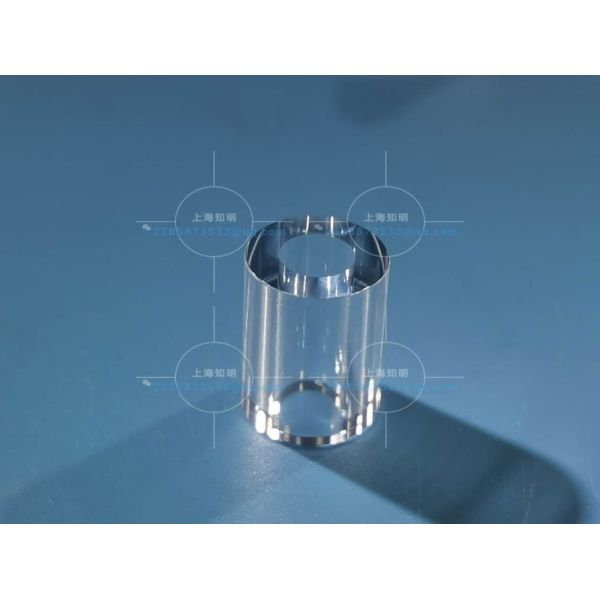

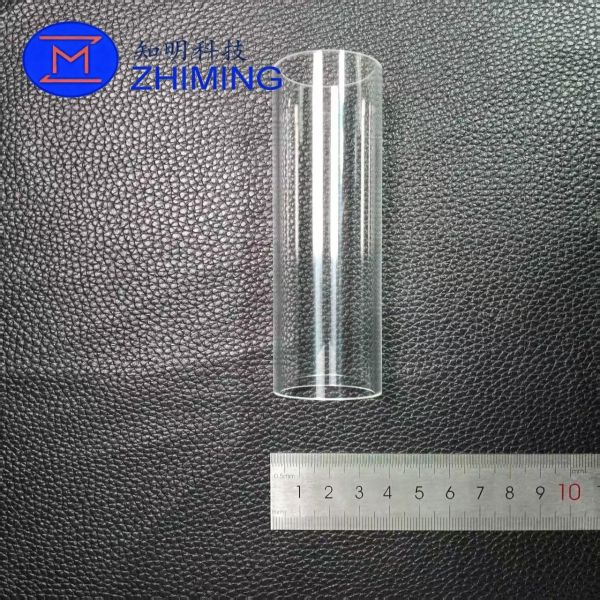

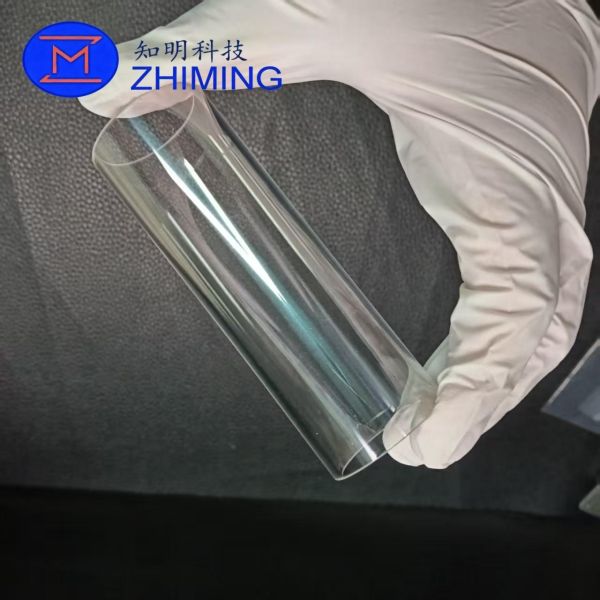

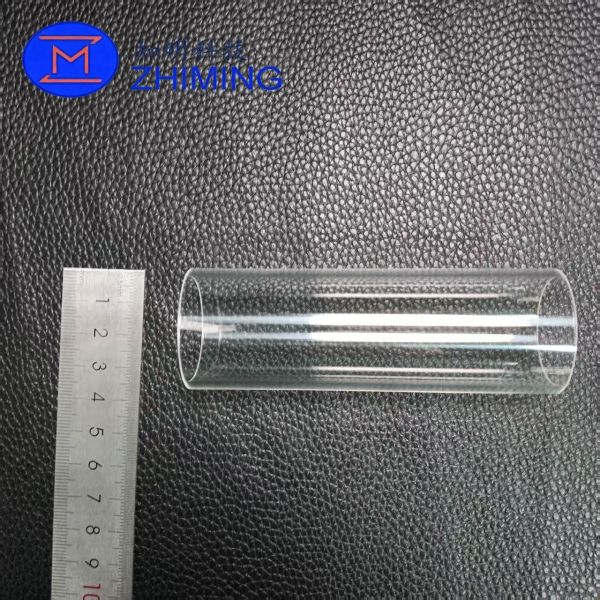

Our EFG Sapphire Tubes, engineered with precision using the Edge-Defined Film-Fed (EFG) growth method, provide exceptional strength, thermal stability, and optical clarity. These tubes, with a diameter of 34mm and a length of 100mm, are designed for demanding applications where durability, high temperature resistance, and chemical inertness are critical.

Sapphire, a single crystal of aluminum oxide (Al₂O₃), is renowned for its hardness, ranking 9 on the Mohs scale, just behind diamond. This unique property makes sapphire tubes ideal for environments that require resistance to scratching, wear, and extreme mechanical stress. With a high melting point of 2050°C, sapphire tubes are well-suited for high-temperature applications, and their excellent thermal conductivity ensures stable performance even in the most heat-intensive environments.

The EFG method used to manufacture these tubes allows for a high degree of dimensional precision, ensuring consistency in performance across a range of industrial processes. These tubes can be polished to a mirror finish, enhancing their optical properties, making them ideal for use in laser systems, optical instruments, and various scientific applications.

Key Features:

• Superior Hardness: Sapphire tubes are scratch-resistant and maintain their surface integrity even under harsh mechanical conditions, ensuring longevity and durability.

• High Temperature Resistance: These tubes can withstand temperatures up to 2000°C in vacuum environments, making them ideal for use in high-temperature processes such as semiconductor manufacturing and laser systems.

• Chemical Inertness: Sapphire tubes are chemically inert, offering exceptional resistance to corrosion from harsh chemicals, including fluorine plasma, acids, and alkalis. This makes them highly suitable for semiconductor processing and aggressive industrial applications.

• Exceptional Optical Clarity: Double-side polished for maximum optical clarity and minimal light scattering, ideal for use in laser optics and other optical systems where precision is critical.

• Thermal Conductivity: Excellent heat dissipation properties, ensuring stable operation in systems that generate significant heat, such as lasers and plasma reactors.

Applications:

1. Semiconductor Processing:
   Sapphire tubes are used in various processes, including plasma etching, chemical vapor deposition (CVD), and plasma-enhanced CVD (PECVD). Applications include:

   • Plasma containment tubes

   • Process gas injectors

   • Thermocouple protection sheath (Thermowell)

   • CVD reactor windows

2. Laser and Optical Systems:
   The unique combination of hardness and optical clarity makes sapphire tubes ideal for use in high-performance laser systems, where they can serve as:

   • Laser beam delivery systems

   • Protective windows in laser welding, cutting, or engraving systems

   • Cooling channels in diode laser systems

   • Optical instruments like spectrometers and light guides

3. Test and Analytical Instruments:
   Sapphire tubes are essential in a variety of analytical instruments, offering excellent transparency and resistance to high pressures and temperatures. Common uses include:

   • NMR spectroscopy

   • ICP-MS (Inductively Coupled Plasma Mass Spectrometry)

   • Mass spectrometry

   • Thermo-optic temperature measurement

   • Inline petroleum process analysis

   • Biological and chemical sample analysis

4. Lighting Fixtures:
   Sapphire tubes can transmit visible, infrared, or ultraviolet light at high intensities and under extreme conditions, making them suitable for use in:

   • High-intensity flash lamps

   • UV sterilization systems

   • Infrared countermeasures

   • High-power lighting systems (e.g., for aerospace, defense, and industrial uses)

5. Medical and Biotech Applications:
   Sapphire’s biocompatibility and optical properties make it a valuable material in medical diagnostics and research. It is used in applications such as:

   • Endoscopic instruments

   • HPLC (High-Pressure Liquid Chromatography) flow cells

   • Optical windows for imaging systems

6. Aerospace and Defense:
   Sapphire’s strength and ability to withstand extreme temperatures and pressure make it ideal for aerospace applications such as:

   • Optical domes for missiles and satellites

   • Sensor protection in harsh environments

   • Transparent windows for high-altitude aircraft

Specifications:

FAQs:

1. What are sapphire tubes used for?
   Sapphire tubes are used in various high-performance applications, such as laser systems, semiconductor processing, optical instruments, and scientific analysis. Their durability, high temperature resistance, and optical clarity make them essential for industries requiring materials that can withstand harsh conditions.

2. What is the benefit of the EFG method in sapphire tube production?
   The EFG method allows for precise control of the tube’s dimensions while minimizing waste. This method results in a higher quality product with better optical properties and dimensional accuracy compared to traditional mechanical processing. It also ensures that the sapphire tubes maintain uniformity and strength, which is critical for high-pressure and high-temperature applications.

3. Why is sapphire chosen for semiconductor and laser applications?
   Sapphire’s hardness, thermal stability, and optical clarity make it an ideal material for use in semiconductor processing and laser systems. It can withstand extreme temperatures, resist chemical corrosion, and provide excellent optical performance, making it superior to other materials like quartz or ceramics in many high-tech applications.
