​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​
​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​
​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​
​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​
​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​
​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​
​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​
​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​
Specifications
Brand Name :
ZMSH
Model Number :
SiC Ceramic Balls
Certification :
rohs
Place of Origin :
CHINA
MOQ :
100
Price :
by case
Payment Terms :
T/T
Delivery Time :
2-4weeks
Packaging Details :
package in 100-grade cleaning room
Material :
Silicon Carbide
Grade :
G5 G10 G3
Hardness :
HV2600
Surface :
High polished,mirror surface
Density :
3.05-3.15g/cm3
MOQ :
100pcs
Size :
0.5-100mm
Packaging :
Vacumm package
Description

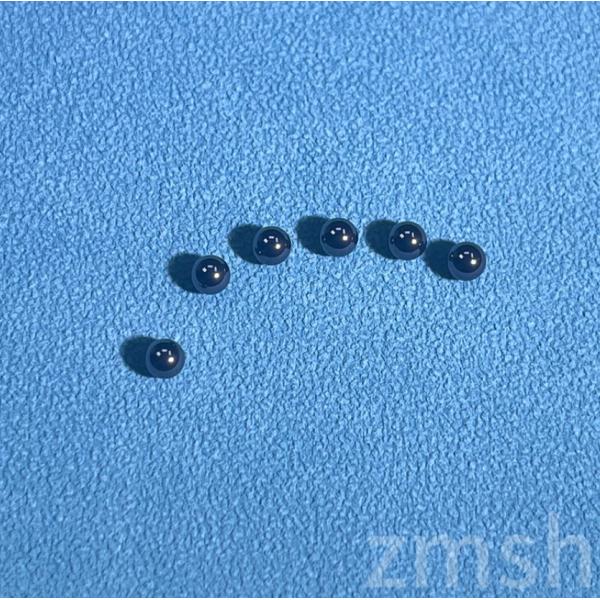

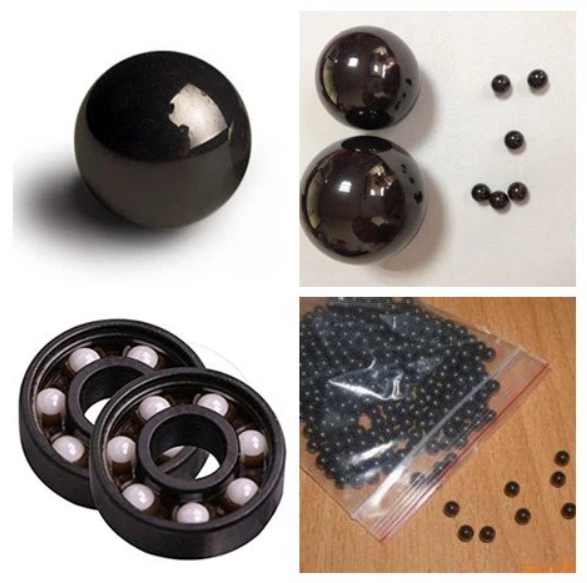

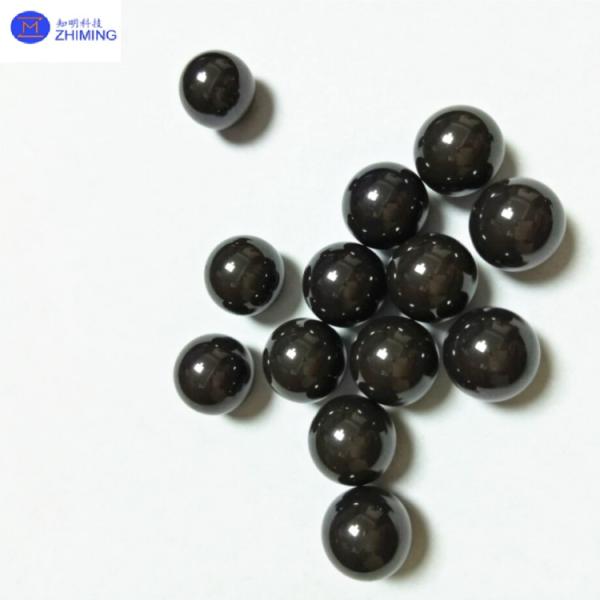

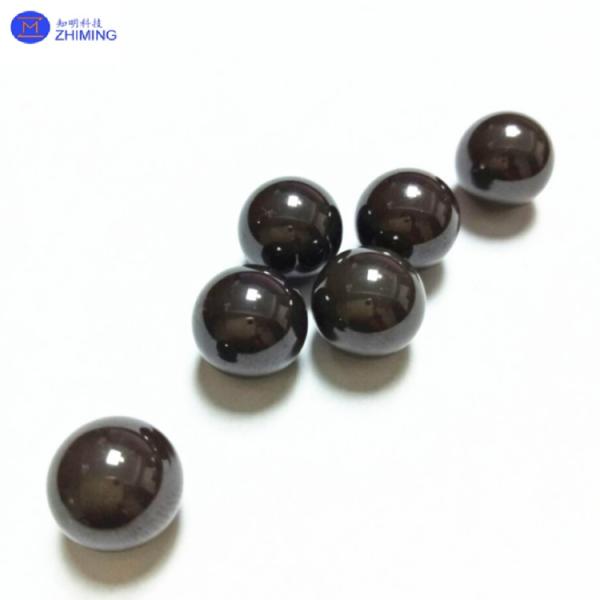

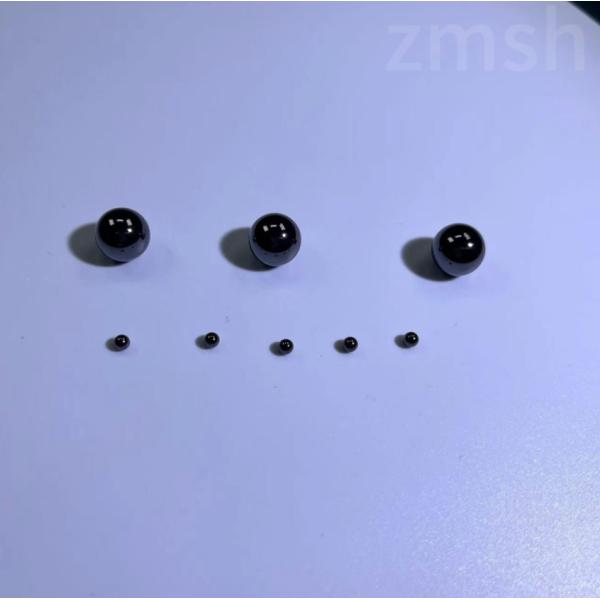

​​SiC Ceramic Bearing Balls Brief

​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​

Silicon Carbide (SiC) Ceramic Balls are an advanced ceramic material renowned for their ​​exceptional hardness​​, ​​extremely high wear resistance​​, ​​outstanding chemical corrosion resistance​​, and ​​excellent thermal shock resistance​​. With a density of approximately ​​3.10-3.20 g/cm³​​, they are lighter than many metals, helping reduce component weight and inertia. These balls can be manufactured via processes like ​​pressureless sintering​​, offer a flexible size range from sub-millimeter to several centimeters, and can be precision-ground to ​​G5 grade or higher. Surface finish can be polished according to application needs to meet specific requirements for precision and friction characteristics.

Key Technical Specifications

Product Name

SIC Ceramic Balls

Brand

ZMSH

Material

Silicon Carbide

Grade

G5 G10 G3

Hardness

HV2600

Surface

High polished,mirror surface

Density

3.05-3.15g/cm3

Color

Gray

Maxium T

1600℃

Size

0.5-100mm

MOQ

100pcs

Sample

Free sample available

Payment

T/T, L/C, etc.

Packaging

Vacumm package

SiC Ceramic Balls Characteristic

Characteristic Dimension​​

​​Core Advantage​​

​​Exceptional Hardness​​

Mohs hardness up to Grade 9​​, Vickers hardness (Hv) typically in the range of ​​2000-2500​​, its hardness is ​​second only to diamond​​.

​​Excellent Wear Resistance​​

Due to its ultra-high hardness, it can ​​significantly withstand wear in high-friction environments​​, ensuring an ​​exceptionally long service life​​.

​​High Thermal Stability​​

​​Melting point as high as ~2050°C​​, can maintain stable strength and hardness at ​​1600°C​​ or even higher temperatures, ​​strength remains almost unchanged at high temperatures​​.

​​Low Thermal Expansion Coefficient​​

Thermal expansion coefficient as low as ~​​4.5×10⁻⁶/K​​, making it ​​less prone to cracking or deformation​​ under drastic temperature changes, with excellent thermal shock resistance.

​​Outstanding Chemical Inertness​​

Exhibits excellent corrosion resistance to ​​most strong acids, strong alkalis​​, and salts, suitable for extreme chemical environments with ​​pH 1-14​​ (e.g., electroplating solutions, seawater desalination systems).

​​Lightweight​​

Density is approximately ​​3.10-3.20 g/cm³​​, ​​less than 40% of steel balls​​. This can significantly reduce the inertial load of high-speed rotating equipment, with an energy saving rate of ​​15%-20%​​.

​​Low Friction Coefficient​​

The friction coefficient is relatively low (approx. ​​0.02-0.1​​). Combined with its high hardness, it can reduce motion resistance, friction heat accumulation, and equipment temperature rise.

​​Electrical Insulation & Non-Magnetic​​

It is a good ​​electrical insulator​​ (resistivity >10¹² Ω·cm) and is ​​non-magnetic​​. This is crucial for avoiding interference with precision electromagnetic equipment.

​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​

SiC Ceramic Balls Applications

  • Precision Bearings​​: High-speed spindles, aerospace engines, dental drills
  • ​​Chemical Corrosion Resistance​​:Pump/valve seals, reactor bearings, marine equipment
  • ​​Semiconductor Manufacturing​​: Wafer polishing, precision measuring instruments
  • ​​Water Filtration Systems​​: Oil-water separation, wastewater treatment, drinking water purification
  • ​New Energy & High-Temperature Applications​​: Wind turbine spindles, electric vehicle motors, gas turbines

​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​

Related SiC Ceramic Balls Recommendations

1. Diameter 10mm SiC Ceramic Ball High Temperature Resistance High Hardness Material

​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​

2. Sic/Silicon Carbide Ceramics Ball Custom Size Bearing Beads Small Parts

​​SiC Ceramic Bearing Balls G5 Grade High Hardness​​

SiC Ceramic Balls Q&A​

Q1: Why choose silicon carbide (SiC) ceramic balls over traditional materials?​​

​​A1:​​ They offer ​​exceptional hardness (Mohs 9+), wear resistance, and thermal stability (up to 1600°C)​​, significantly extending service life in high-stress environments like precision bearings and semiconductor processing.

​​Q2: In which industries are SiC ceramic balls commonly used?​​

​​A2:​​ They are critical in ​​semiconductor manufacturing (wafer polishing), chemical corrosion-resistant systems, high-temperature energy applications (e.g., wind turbines), and water filtration​​ due to their durability and inertness.

Tag: #​​SiC Ceramic Balls, #Customized, #SiC​, #​​Precision Bearings , #Bearing Balls, #High-Performance Components, # Wear Resistance, #G5 Grade, #High Hardness​​
