35mm Rechargeable Lithium Battery Tubular Motor 10Nm for Heavy Motorized Roller Blinds
35mm Rechargeable Lithium Battery Tubular Motor 10Nm for Heavy Motorized Roller Blinds
35mm Rechargeable Lithium Battery Tubular Motor 10Nm for Heavy Motorized Roller Blinds
35mm Rechargeable Lithium Battery Tubular Motor 10Nm for Heavy Motorized Roller Blinds
35mm Rechargeable Lithium Battery Tubular Motor 10Nm for Heavy Motorized Roller Blinds
35mm Rechargeable Lithium Battery Tubular Motor 10Nm for Heavy Motorized Roller Blinds
Specifications
Model Number :
GZ35
Applications :
Roller, Roman, Wooden Venetian Blinds
Control Protocol :
RF / Zigbee
MOQ :
1 SET
Delivery Time :
7 - 10 WORK DAY
Charging Options :
12V DC Adapter
Payment Terms :
D/A,D/P,T/T
Power Source :
Built-in Battery
Limit System :
Electronic Limit
Price :
To Be Negotiated
Max Coverage Area :
Up to 10 Square Meters
Supply Ability :
10,000 Sets / Month
Motor Type :
35mm DC Tubular Motor
Certification :
CE, CCC
Place of Origin :
MADE IN CHINA
Packaging Details :
CARTON
Brand Name :
GALIME
Special Functions :
Dot-Move & Precise Light
Description
35mm Rechargeable Lithium Battery Tubular Motor 10Nm for Heavy Motorized Roller Blinds
Versatile Wire-Free Power for Expansive Shading Systems

The GZ35 Lithium Battery Tubular Motor (10Nm) is a premium wire-free drive unit engineered for a vast array of interior and exterior window treatments. Powered by a built-in 2600mAh rechargeable lithium battery, it eliminates the need for complex hardwiring, making it an ideal solution for both structural retrofits and new commercial builds.

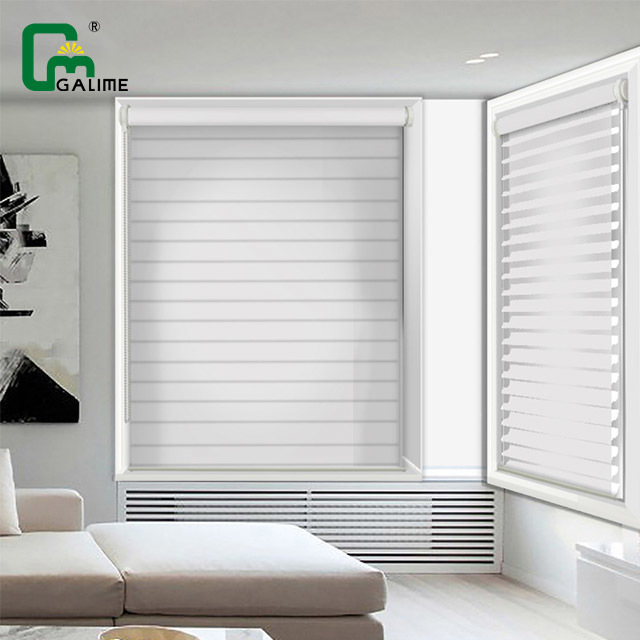

Delivering a robust 10 N.m of torque, this motor effortlessly drives shading applications for small, extra-high, or wide windows (recommended for coverage up to 10 square meters). Its versatile design supports everything from heavy motorized roller blinds and wooden Venetian blinds to Roman shades, windproof roller shutters, aluminum alloy roll windows, and professional projection screens.

Key Features
  • Heavy-Duty Drive & Broad Compatibility: Outputting an impressive 10 N.m of torque at 9 rpm, this 35mm tubular motor provides reliable lifting power for expansive window installations up to 10 square meters. It is universally adaptable across multiple shading formats.
  • 100% Wire-Free & Solar-Ready Architecture: Equipped with a built-in 2600mAh high-capacity lithium battery, it ensures a clean, drill-free installation with zero electrical mains dependency. The charging interface fully supports direct connection to an external solar panel.
  • Precision Light Adjustment & Tilt Control: Engineered with an advanced dot-move (jog) and light-adjust function, the motor provides meticulous micro-control over curtain positioning, especially critical for accurately tilting wooden Venetian blind slats.
  • Intelligent Electronic Limits & Third Position: Features precise electronic limit setup that prevents over-rolling and fabric damage. Supports a "Third Limit" memory function for custom intermediate stop positions.
  • Optimized Low-Power Connectivity: Designed with low-power standby architecture to significantly extend operational life between charges. Available in dedicated RF (433.92MHz) or Zigbee control options for stable signal reception.
Technical Specifications
Parameter Specification
Model GZ35 Lithium Battery
Rated Torque 10 N.m
Rated Speed 9 rpm
Motor Tube Diameter 35 mm
Tube Length 600 mm
Motor Weight 1.4 Kg
Operating Voltage 12V DC
Rated Current (Absorption) 1.5 A
Power Consumption 18 W
Power Supply Built-in 2600mAh Lithium Battery
Charging Interface 3.5DC / JST
External Solar Panel Supported (Model: GC8005)
Protection Rating IP44
Certifications CE, CCC
Frequently Asked Questions
Why doesn't the lithium battery version feature built-in Wi-Fi?
Wi-Fi requires a continuous, high-energy connection to the router, which would rapidly drain the battery. To ensure the GZ35 motor operates for months on a single charge, we engineered it with low-power protocols (RF 433.92MHz or Zigbee). This low-power standby architecture maximizes battery life. If App or voice control is required, the Zigbee version can easily bridge to your local network via a standard smart home gateway.
What is the recommended application scope for this 35mm (10 N.m) tubular motor?
With a robust 10 N.m torque output, this 35mm motor is specifically designed for heavy-duty or oversized window treatments. It comfortably drives shading systems up to 10 square meters. Its versatile design makes it the perfect power source for large motorized roller blinds, heavy wooden Venetian blinds, Roman shades, and even exterior windproof roller shutters in both commercial and premium residential projects.
How is the motor charged, and is it completely maintenance-free with a solar panel?

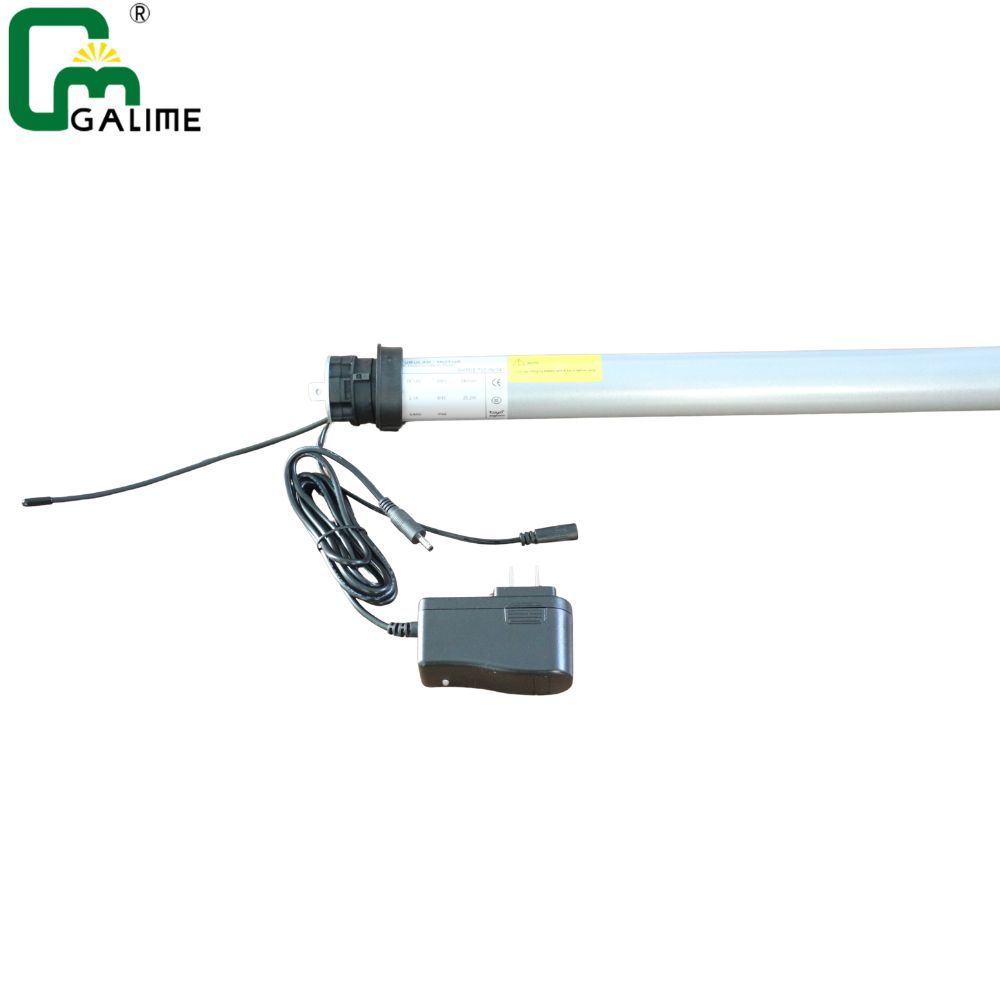

The motor features a standard 3.5DC/JST interface and can be charged using a conventional adapter. However, for a truly maintenance-free, wire-free setup, it is fully compatible with our external solar panel (Model: GC8005). The solar panel continuously trickle-charges the built-in 2600mAh battery using natural daylight, ensuring uninterrupted daily operation without the need for manual recharging.
