Stone Gabion Wire Mesh
Stone Gabion Wire Mesh
Stone Gabion Wire Mesh
Stone Gabion Wire Mesh
Stone Gabion Wire Mesh
Stone Gabion Wire Mesh
Specifications
Brand Name :
Zhuoda
Model Number :
ZD-01
Certification :
ISO9001
Place of Origin :
Anping China
MOQ :
100 Sets
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10000 Sets
Delivery Time :
5-7days
Packaging Details :
BY Pallets
Model Numbe :
Gabion Wire Mesh
Material :
Galvanized Iron Wire, Galvanized Iron Wire
Type :
Welded Mesh Weave Mesh
Application: :
Gabions
Hole Shape :
Hexagonal
Wire Gauge :
2.0-4.0mm
Surface treatment :
Hot Dipped Galvanized
Usage: :
Garden Decoration
Opening size :
60x80 80x100 80x120 100x120
Certificate :
ISO9001
Description

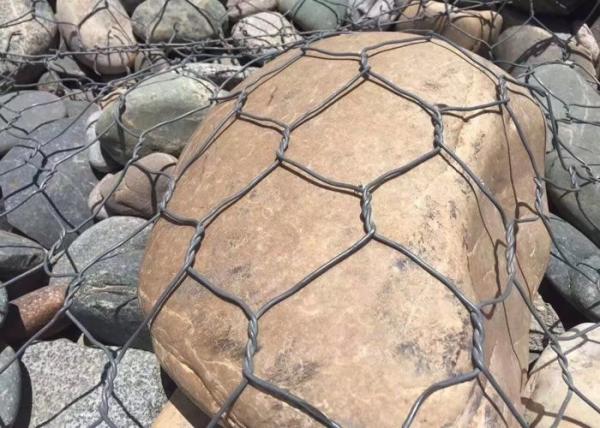

Stone Cage Nets Galvanized Iron Wire Hexagonal Wire Mesh Gabion Wire Mesh


Gabion Wire Mesh Introduction:

Gabion wire mesh box are wire containers made of hexagonal wire netting.wire diameter varies with the hexagonal nettings.for hexagonal wire netting without pvc coating,the wire diameter ranges from 2.0mm to 4.0mm.for those PVC coated hexagonal wire netting,the outside diameter ranges from 3.0mm to 4.5mm.The wire of the outside frame edga is one wire gauge thicker than the wire used for hexagonal wire netting.

Gabion Wire Mesh material:

Materials: Quality Galvanized Wire, Galfan Wire etc.
Sizes: 1x1x0.5m,1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x1m, 3x1x0.5m, 4x1x0.5m, 4x1x1m, 6x2x0.3m,Custom orders available.

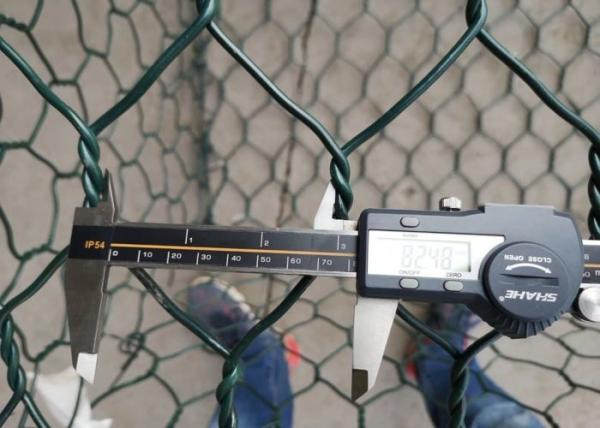

Mesh Size:60*80mm, 80*100mm,100*120mm, 120*150mmCustom orders available.

Surface Treatment: Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.

We guarantee high quality gabion mesh, make sure all our products are flat surface, refined aperture, strong structure and corrosion-resistance to protect the dam and rivebank.


Gabion wire mesh various characteristics:

A. Economic. Just fill the stone into the gabions and seal it.
B. Simple installation. No special technology needed.
C. Weather proof under natural destroy, corrosion resistant.
D. No collapse even under big scope of deforming.
E. Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
F. Good permeation can prevent the damage by hydrostatic.
G. Less transport freight. It can be folded together for transport and further installation.

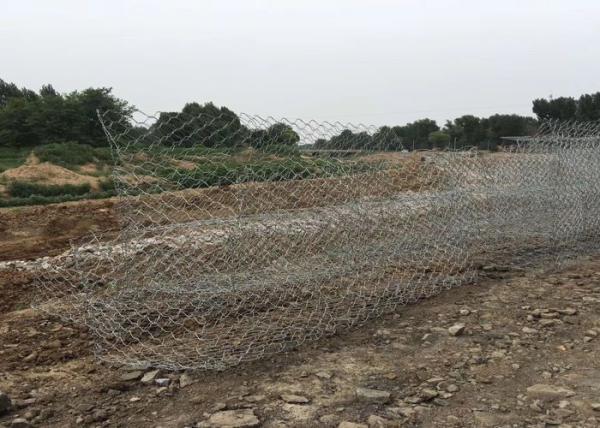

Gabion wire mesh application:

Gabion Wire Mesh Boxes are made of high quality steel wire, which has 2 types of fabrication: double or triple twist fabric. The fabric structures are flexible and variable. Compared with welded gabion baskets, woven gabion baskets have durability for a long service life.

Gabion Wire Mesh specificaiton:

Gabion box (mesh size):
80*100mm
100*120mm		 Mesh Wire diameter 2.7mm zinc coating:60g,245g, ≥270g/m2
Edge wire diameter 3.4mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g,≥220g/m2
Gabion mattress(mesh size):
60*80mm		 Mesh Wire diameter 2.2mm zinc coating:60g, ≥220g/m2
Edge wire diameter 2.7mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g, ≥220g/m2
Special sizes Gabion
are available		 Mesh Wire diameter 2.0-4.0mm superior quality,competitive price and
considerate service
Edge wire diameter 2.7-4.0mm
Tie wire diameter. 2.0-2.2mm

Length Width Height Diaphragm CUM The tolerance
M M M Unit M3
2 1 0.3 1 0.6
3 1 0.3 2 0.9
4 1 0.3 3 1.2 length+-3%
2 1 0.5 1 1 width+-5%
3 1 0.5 2 1.5 height+-5%
4 1 0.5 3 2
1 1 0.5 0 1 Hole size
1.5 1 1 0 1.5 60x80mm
2 1 1 1 2 80x100mm
3 1 1 2 3 100x120mm
4 1 1 3 4


Stone Gabion Wire MeshStone Gabion Wire MeshStone Gabion Wire Mesh
