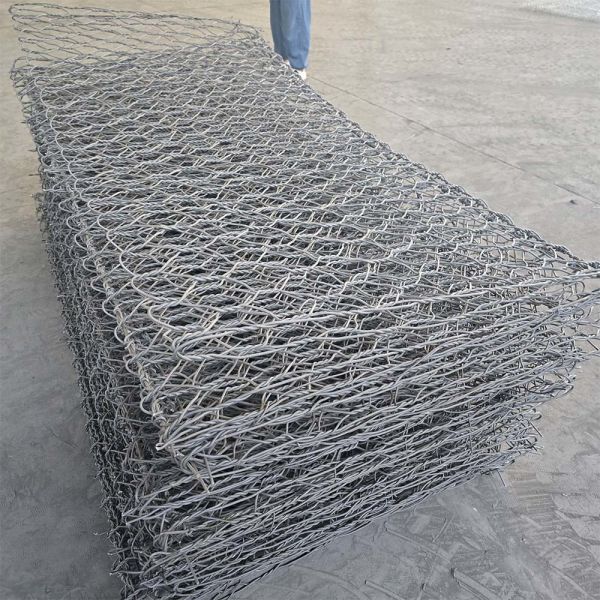

Hot-Dip Galvanized Gabion Basket Wall Retaining Wall 2x1x1m River Floodplain Stone Revetment
Hot-Dip Galvanized Gabion Basket Wall Retaining Wall 2x1x1m River Floodplain Stone Revetment
Specifications
Brand Name :
KN
Model Number :
KN-gabion wall
Certification :
CE ISO SGS COC PVOC
Place of Origin :
CN
MOQ :
100 pc
Price :
USD 35-50
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 pc per day
Delivery Time :
15 work days
Packaging Details :
pallet
Product Name :
Hot-Dip Galvanized Gabion Basket Wall Retaining Wall 2x1x1m River Floodplain Stone Revetment
Key Words :
Gabion wall
Tensile Strength :
350-500N/mm²
Color :
green,black,
Size :
2m x 1m x 1m
Mesh Hole :
6*8cm,8*10cm...
Type :
Hexagonal wire mesh, Double Twist
Wire Diameter :
2.0-4.0mm
Design :
Modern
Mesh Size :
80mm x 100mm
Description
Hot-Dip Galvanized Gabion Basket Wall Retaining Wall 2x1x1m River Floodplain Stone Revetment
Woven gabion mesh is a flexible, hexagonal wire netting made by twisting two adjacent wires together repeatedly—this is the “double-twist” method. Unlike welded mesh, which can snap at the joints under heavy loads, woven gabion mesh maintains its integrity even if a single wire breaks, because the twist distributes stress along the entire mesh. This makes it ideal for projects where movement, settlement, or water flow is expected.

To build a gabion structure, the mesh is cut, folded into boxes (or baskets), and laced together on site. Then stones are packed inside—usually 100–250 mm in diameter for standard baskets. The voids between stones allow water to drain freely, so no special drainage pipes are needed. Over time, silt and seeds accumulate in the gaps, and vegetation naturally takes root, making the structure stronger and more attractive.

Compared to concrete, woven gabion structures are cheaper, easier to repair, and more environmentally friendly. Compared to welded gabion mesh, the woven type offers better flexibility and resistance to breakage under uneven settlement.

Key Features
  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)
Technical Advantages
  • 3x Lifespan: 50-100 years corrosion resistance
  • Load Capacity: Up to 50kN/m² vertical pressure
  • Eco-Friendly: 100% recyclable materials with zero chemical runoff
  • Modular Assembly: Interlocking panels for 70% faster installation
Applications
  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention
Customization Services
  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
Gabion Specifications
Mesh hole model
8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 3.4mm >265g/m² 2.7mm >245g/m²
4 1 1 Binding wire diameter of 2.7m
6 1 1 Binding wire diameter of 2.0m
