Hot-Dip Galvanized Gabion Wire Mesh Basket Retaining Wall
Hot-Dip Galvanized Gabion Wire Mesh Basket Retaining Wall
Specifications
Brand Name :
KN
Model Number :
gabion cages
Certification :
CE ISO SGS COC PVOC
Place of Origin :
CN
MOQ :
100 pc
Price :
USD 15-19
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 pc per day
Delivery Time :
15 work days
Packaging Details :
pallet
Product Name :
Hot-Dip Galvanized Gabion Wire Mesh Basket Retaining Wall
Key Words :
gabion basket
Lacing_Wire :
2.2mm
Gabion Basket Size :
1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m
Mesh_Type :
hexagonal
Zinc Coating :
≥ 240g/m²
Surface Treatment :
Galvanized, Galfan, PVC Coated
Pvc Color :
Dark Green, Gray
Description
Hot-Dip Galvanized Gabion Wire Mesh Basket Retaining Wall

Woven gabion mesh, also known as double-twisted hexagonal wire mesh, is a key component for manufacturing gabion structures such as boxes, mattresses, and sacks. The mesh is produced by cold-forming steel wire into a hexagonal shape with a double-twisted selvedge along the edges, which prevents the mesh from unraveling even if the wire breaks at one point. Typically, the wire is coated with zinc (hot-dipped galvanized), Zn-Al alloy (Galfan), or PVC to resist corrosion in harsh environments. The double-twist weaving method distributes mechanical stress evenly, making the mesh highly durable under dynamic loads like flowing water or soil movement.

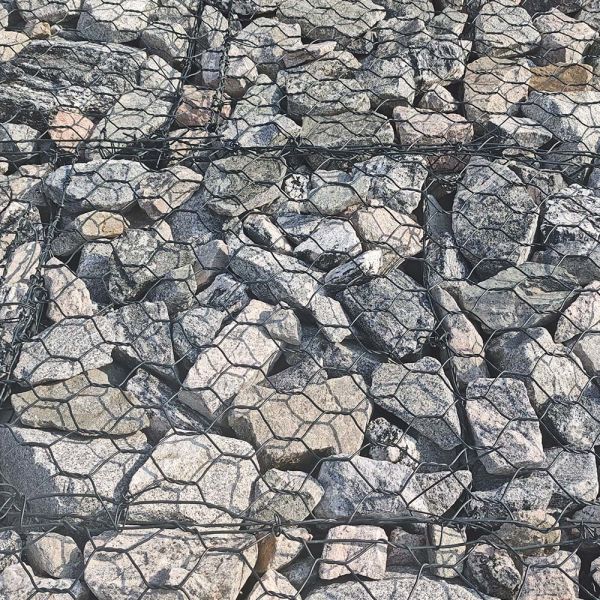

Common wire diameters range from 2.0 mm to 4.0 mm, and mesh openings (the distance between parallel wires) vary from 60×80 mm to 100×120 mm, depending on the project requirements. Woven gabion mesh is supplied either in flat panels for on-site folding or as prefabricated cages. Once assembled and filled with stones, the structures serve as flexible, permeable, and cost-effective solutions for retaining walls, river training, slope stabilization, and channel lining. The gaps between stones allow water to drain freely, eliminating hydrostatic pressure build-up behind the wall, while vegetation can grow through the voids over time, blending the structure into the natural environment.

Key Product Features
  • Product Name: Gabion Box
  • Standard Sizes: 1m × 1m × 1m, 2m × 1m × 1m, 3m × 1m × 1m
  • Available Colors: Silver, Green, Black
  • Mesh Sizes: 80mm × 100mm, 60mm × 80mm, 100mm × 120mm
  • Primary Applications: Soil retaining, flood control
Technical Advantages
  • Extended Lifespan: 50-100 years corrosion resistance
  • High Load Capacity: Up to 50kN/m² vertical pressure
  • Eco-Friendly: 100% recyclable materials with zero chemical runoff
  • Modular Assembly: Interlocking panels enable 70% faster installation
Product Name Gabion Box
Packing Pallet, Bundle
Material Galvanized Steel Wire, PVC Wire, Galfan Wire
Size 1m × 1m × 1m, 2m × 1m × 1m, 3m × 1m × 1m
Price Negotiable
Surface Treatment Heavy Zinc Coated
Color Silver, Green, Black
Application Soil Retaining, Flood Control
Certification ISO9001
Wire Diameter 3.0mm, 2.7mm
Lifespan 20-30 Years
Key Features Gabion Retaining Wall, Gabion Mattress, Gabion Basket
Project Specifications
Minimum order quantity of 100 pieces with negotiable pricing. Standard packaging of 100 pieces per bundle for convenient transportation and storage. Quick delivery within 7 days ensures timely project completion.
Customization Services
  • Sizes: 2×1×1m (standard) up to 6×2×1m (heavy-duty)
  • Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
