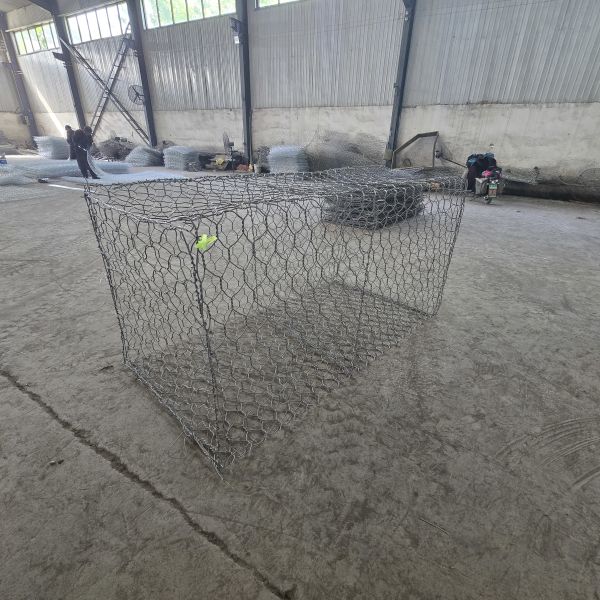

Heavy Duty Galvanized Woven Gabion Retaining Wall With Customized Box Sizes
Heavy Duty Galvanized Woven Gabion Retaining Wall With Customized Box Sizes
Specifications
Brand Name :
KN
Model Number :
KN- Gabion Retaining Wall
Certification :
ISO CE
Place of Origin :
China
MOQ :
100pcs
Price :
USD 12-17
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
3000000 pcs/ month Gabion Retaining Wall
Delivery Time :
7 days
Packaging Details :
Wooden pallets
Product name :
Gabion Retaining Wall
Aperture :
60*80;80*100;100*120;...
Wire Diameter :
2.0-2.7mm
Material :
Q 195 steel wire
Assembly :
Easily Assembled
Key Words :
Gabion Retaining Wall
Description
Heavy Duty Galvanized Woven Gabion Retaining Wall With Customized Box Sizes
Product Description
Confirm the mesh size
Choose the appropriate mesh opening size according to your needs
The general mesh opening size is 9*11mm, 11*13mm, 7*9mm
Heavy Duty Galvanized Woven Gabion Retaining Wall With Customized Box Sizes<img alt="" data-cke-saved-src="
Specifications
Product Name Welded Gabion Box/Hexagonal Gabion Box
Material Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Pattern Welded
Packaging Wood pallet
Connections Spiral wire, U clip, Hog ring
Aperture (mm) Wire Diameter (mm) PVC Coated Wire Diameter Inner/outer(mm) Gabion Basket Size(m) Gabion Mattress Size(m)
60×80 2.0-2.8 2.0/3.0-2.8/3.8 1×1×0.5m, 1×1×1m, 2×1×0.5m, 2×1×1m, 3×1×0.5m, 3×1×1m, 4×1×0.5m, 4×1×1m (available custom) 1×1×0.3m, 2×1×0.3m, 3×1×0.3m, 4×1×0.3m, 4×2×0.3m, 6×2×0.3m (available custom)
80×100 2.2-3.2 2.2/3.2-3.0/4.0 Same as above
80×120 2.2-3.2 2.2/3.2-3.0/4.0 Same as above
100×120 2.4-3.5 2.4/3.4-3.2/4.2 Same as above
100×150 2.4-3.5 2.4/3.4-3.2/4.2 Same as above
120×150 2.7-4.0 2.7/3.7-3.5/4.5 Same as above
Other sizes can be customized.
Heavy Duty Galvanized Woven Gabion Retaining Wall With Customized Box Sizes
Features:

1. Blends easily and harmoniously with the natural surroundings.
2. Low cost
3. Good resistance to natural forces
4. Can withstand unpredictable movement or settlement without loss of stability
5. Permeable
6. Simple and fast installation
7. Quality finish and appearance
8. Quick and cheap to install
Heavy Duty Galvanized Woven Gabion Retaining Wall With Customized Box Sizes
Heavy Duty Galvanized Woven Gabion Retaining Wall With Customized Box Sizes

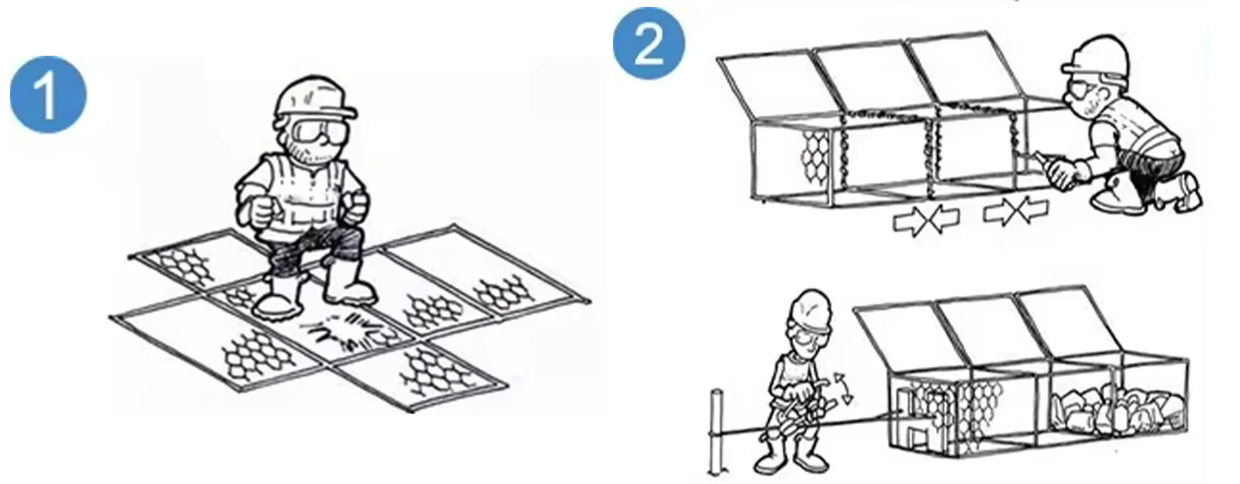

1.Open the cage on a flat ground and lay it flat. Note: Wear goggles, gloves and other protective equipment during construction.
2. Stand up each side and combine them into a mesh box. Each surface of the mesh box has thicker edge wires, and these overlapping
thick edge wires are twisted together at the corners of the mesh surface. These twisted edge wires overlap with the binding wires at the corners.
Robust Galvanized Woven Mesh Cage for Stone Filled Retaining Gabion Structures
Robust Galvanized Woven Mesh Cage for Stone Filled Retaining Gabion Structures

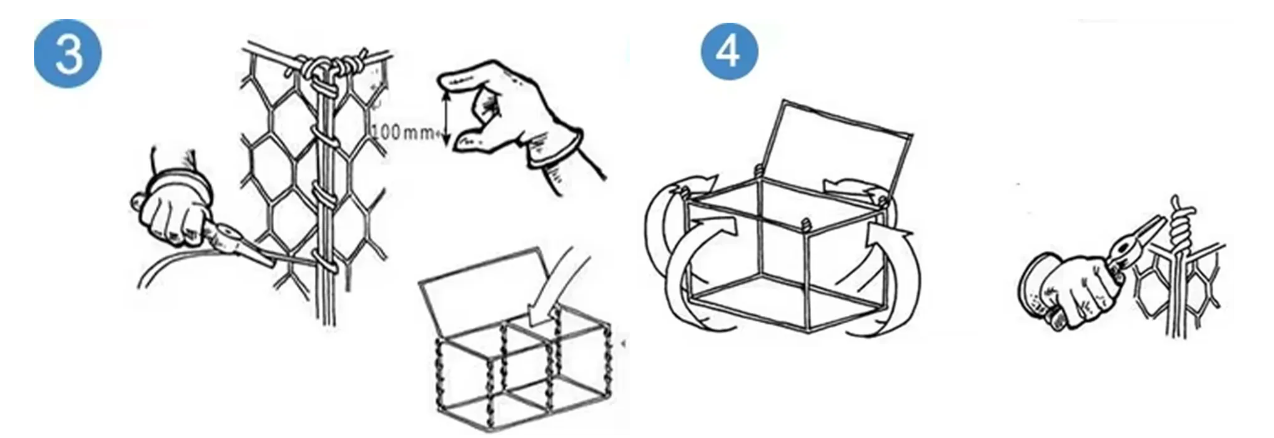

3. Tie the surfaces together. Use a 1-meter-long binding wire, tie it at one end first, then pass it through the mesh every 100mm, and alternately wrap two adjacent edge wires in single and double circles. In order to ensure a tight connection between the mesh surfaces, use force and tighten them when winding.Note: If there are partitions inside the cage, tie them up according to the above method.
4. If gabions of the same size need to be connected together (to form a gabion retaining wall), connect the end of the first one to the front of the second one, and so on. Place a simple wooden "H" shape at 1/3 of the height of the inner side of the last
gabion, and stretch the other side to make it tight until all the gabions are in a stretched and tight state.
Packing & Delivery
Packing, reasonable arrangement of space, saving buyer's cost
Heavy Duty Galvanized Woven Gabion Retaining Wall With Customized Box Sizes
Heavy Duty Galvanized Woven Gabion Retaining Wall With Customized Box Sizes
