Heavy Duty Woven Gabion Wall Erosion Resistant For Flood And Riverbank Protection
Heavy Duty Woven Gabion Wall Erosion Resistant For Flood And Riverbank Protection
Specifications
Brand Name :
KN
Model Number :
KN-gabion wall
Certification :
CE ISO SGS COC PVOC
Place of Origin :
CN
MOQ :
100 pc
Price :
USD 35-45
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 pc per day
Delivery Time :
15 work days
Packaging Details :
pallet
Product Name :
Heavy-Duty Woven Gabion Walls For Hydraulic Projects - Erosion-Resistant Flood & Riverbank Protection
Key Words :
Gabion wall
Finish :
Galvanized or PVC coated
Application :
Retaining Wall, Slope Protection, River Bank Protection
Gabion Size :
2x1x1m, 3x1x1m, 4x1x1m, 2x1x0.5m, 4x1x0.5m
Key Word :
Gabion wall
Aperture Shape :
hexagonal
Color :
Silver, Green, Black
Lacing Wire :
3.4mm
Design :
Modern
Description

Heavy-Duty Woven Gabion Walls For Hydraulic Projects - Erosion-Resistant Flood & Riverbank Protection

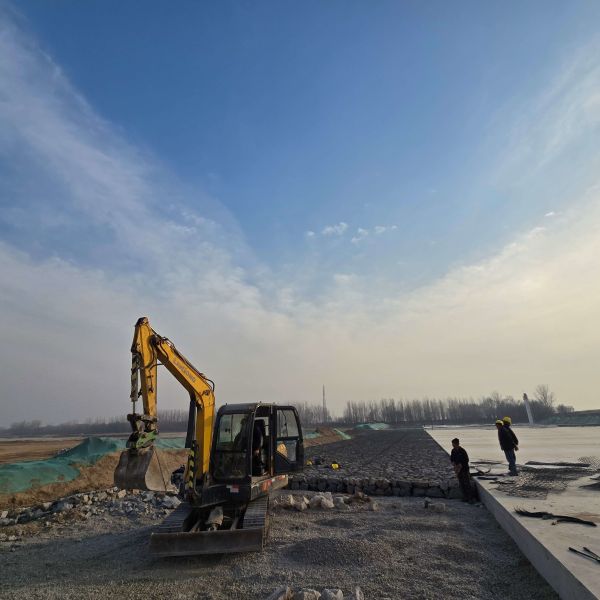

Woven Gabion Wall, made of double-twisted hexagonal galvanized steel wire mesh, serves as a robust retaining structure for hydraulic projects like floodplain embankments, coastal dike reinforcement, and spillway channel lining. Designed to withstand hydrodynamic forces, it provides erosion control in riverbank stabilization, reservoir slope protection, and canal revetments. Compliant with EN 10223-3 standards, standard dimensions (2x1x1m to 4x2x1m) allow rock-filled configurations for load distribution in high-velocity water zones, ensuring integration into levees, breakwaters, and stormwater management systems.

Key Features

  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention

Customization Services

  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
gabion specifications Mesh hole modle
8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
Mesh diameter Zinc Mesh diameter Zinc
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter Zinc Side wire diameter Zinc
4 1 1 3.4mm >265g/² 2.7mm >245g/m²
6 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m
