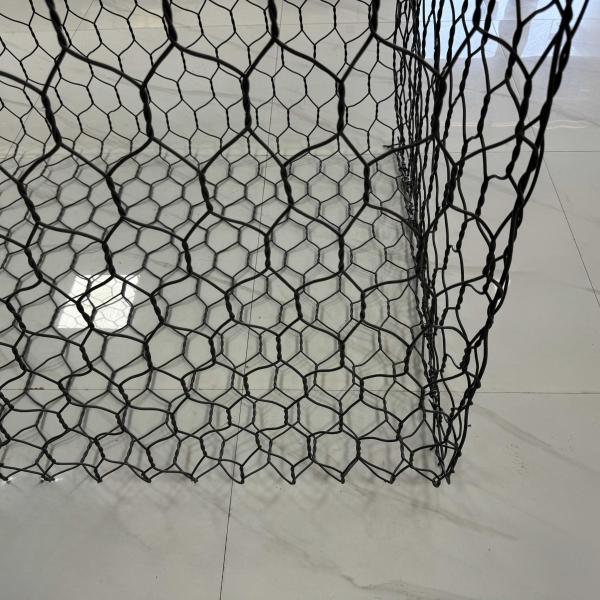

Galvanized 2mx1mx0.5m Stacking gabion stone wall


Product Description:

Heavy galvanized coated gabion stone wall
Mesh hole : 80*100 mm
Mesh wire : 2.7 mm
Tie wire : 2.2 mm
Selvedge wire : 3.4 mm
Including binding wire for gabion box.
We have 7 machines to produce gabion baskets, and daily production is 30,000 square meters. Have a lot of stock and can ship quickly.

gabion stone wall is woven from low-carbon steel wire treated with anti-corrosion technology. The mesh is shaped like a hexagon. The cage has a spacer per meter and is divided into independent units.
Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.

gabion stone wall Application:
The structure can be used for side slope support, foundation pit support, mountain rock surface hanging net shotcrete, side slope vegetation (greening), railway highway isolation fence, it can also be made into box cages, net pads, used in rivers, rivers, Erosion protection of dams and seawalls, as well as cages for the closure of reservoirs and rivers.

• Control and guide rivers and floods

The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.

• Channel canal bed

The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.

• Slope protection

The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.

Advantages of gabion stone wallstructure:
1. The flexible structure can adapt to the changes of the slope without being destroyed, and has better safety and stability than the rigid structure;
2. Strong anti-scouring ability, can withstand the maximum water flow speed up to 6m/s;
3. The structure is inherently water-permeable, and has strong tolerance to the natural and filtering effects of groundwater. Suspended matter and silt in the water can be deposited in the rockfill, which is beneficial to the growth of natural plants. Restore the original ecological environment.
