Hot Dipped Galvanized Hexagonal Gabion Basket for River Erosion Control
Hot Dipped Galvanized Hexagonal Gabion Basket for River Erosion Control
Specifications
MOQ :
1000
Delivery Time :
5-8 working days
Application :
Gabions,Cages,slope protection,Fence Mesh,Construction Wire Mesh
Price :
Negotiate
Craft :
Double‑twisted hexagonal woven mesh
Edge Wire :
Reinforced thicker wire on basket perimeter
Surface treatment :
Hot Dipped Galvanized, PVCcoated, Galvanized+PVC Coated
Packing :
Pallet,Bundle
Model Number :
KN211
Type :
Hexagonal wire mesh, Double Twist
Payment Terms :
L/C,T/T,Western Union
Key Word :
Gabion Basket
Surface :
2.4mm, 2.5mm, 2.7mm, 2.8mm, 3.05mmHot‑dipped galvanized / Galfan / PVC coated
Supply Ability :
30000 square meter per 7 days
Product Name :
Hot Dipped Galvanized Hexagonal Gabion Basket for River Erosion Control
sample :
Free
Certification :
ISO, CE, COC, CO
Place of Origin :
CHIAN
Color :
green,black,
Brand Name :
KN
Aperture :
80*100mm,100*120mm,60*80mm,etc,
Packaging Details :
In Bundle for Container, LCL shipping will use Pallet Gabion Basket
Description

Hot Dipped Galvanized Hexagonal Gabion Basket for River Erosion Control

Short Marketing Slogans

  • Galvanized Gabion Basket for River Control & Slope Stabilization
  • Factory Direct Stone Filled Gabion Basket with Multiple Anti‑rust Coatings
  • Custom Size Gabion Basket for Engineering & Landscape Projects

Hot Dipped Galvanized Hexagonal Gabion Basket for River Erosion Control

Common Gaboin Basket Size :

Gabion Basket Size Notes
Length (M) Width(M) Height(M) Diaphragm CBM (m³)
1 1 1 0 1
2 1 1 1 2
3 1 1 2 3
4 1 1 3 4
5 1 1 4 5
6 1 1 5 6
Other Size Accept Customized

  • Optimized Product Titles

    1. Hot Dipped Galvanized Hexagonal Gabion Basket for River Erosion Control & Flood Protection
    2. PVC Coated Anti-Corrosion Gabion Basket Stone Cage for Slope Stabilization & Landscape Retaining Wall

Gabion Basket Technical Data as Followed:

Technical Data List
Parameter Description Typical Value / Range
Material Base material used for constructing the mesh HDP/Galvanized Wire, PVC Wire
Coating Surface treatment for enhanced corrosion resistance Galvanized, HDP Galvanized, PVC Coated
Wire Diameter The thickness of the wires used in the mesh

Mesh Wire: 2.0~3.05mm

Selvage Wire: 2.4~4.0mm

Tie Wire: 2.0~2.4mm
Mesh Opening Size The size of the openings between wires, determining the size of stones that can be contained

60*80mm, 80*100mm, 100*120mm,120*150mm
Overall Dimensions Standard Gabion Roll and Gabion Basket Size

Gabion Roll Width: 1~4m

Gabion Basket: 1*1*1m,2*1*1m,3*1*1m,4*1*1m,,5*1*1m,6*1*1m,
Lifespan Expected service life under normal installation and maintenance conditions

Generally 6~20 years, depends on environment.

Hot Dipped Galvanized Hexagonal Gabion Basket for River Erosion Control

Product Introduction

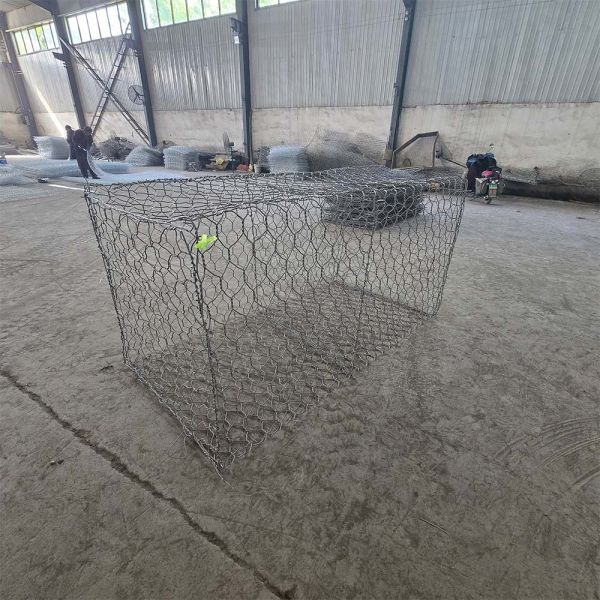

Gabion basket is box‑shaped stone cage assembled from double‑twisted hexagonal wire mesh, manufactured from high‑quality low‑carbon steel wire. Multiple anti‑corrosion surface treatments including hot‑dipped galvanized, Galfan zinc‑aluminum alloy and PVC coating are available to fit different working environments.

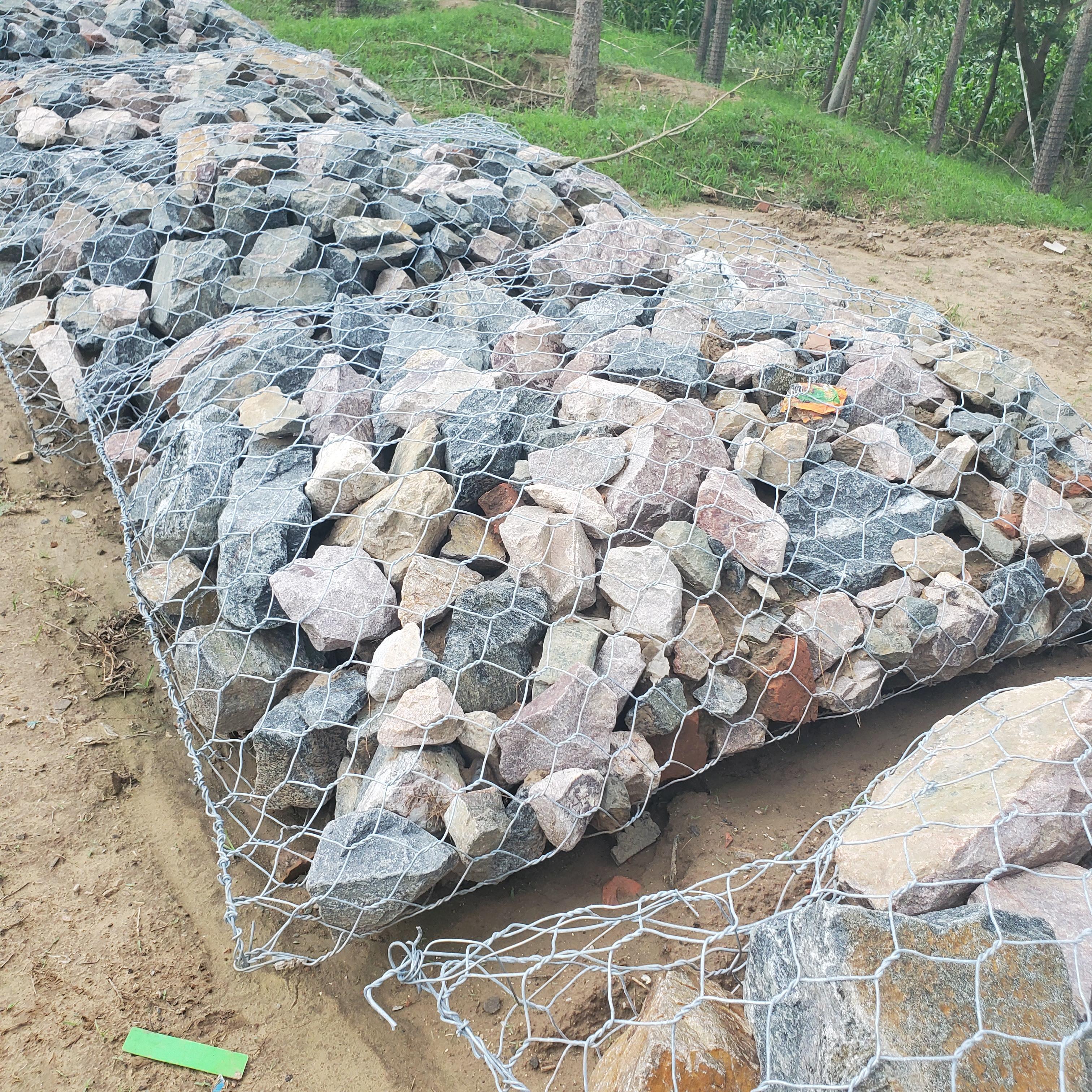

After filling with hard stone aggregates on‑site, gabion baskets form flexible, permeable gravity‑support structures. The gabion basket can accommodate ground settlement and geological shifting without structural failure. It is widely used in river erosion control, slope stabilization, flood defence, road embankment reinforcement and garden landscape retaining wall projects.
We can customize wire diameter, mesh opening and basket dimensions according to project drawings. Reinforced thicker edge wire improves overall basket strength and anti‑break performance.

Hot Dipped Galvanized Hexagonal Gabion Basket for River Erosion Control

Hot Dipped Galvanized Hexagonal Gabion Basket for River Erosion Control
