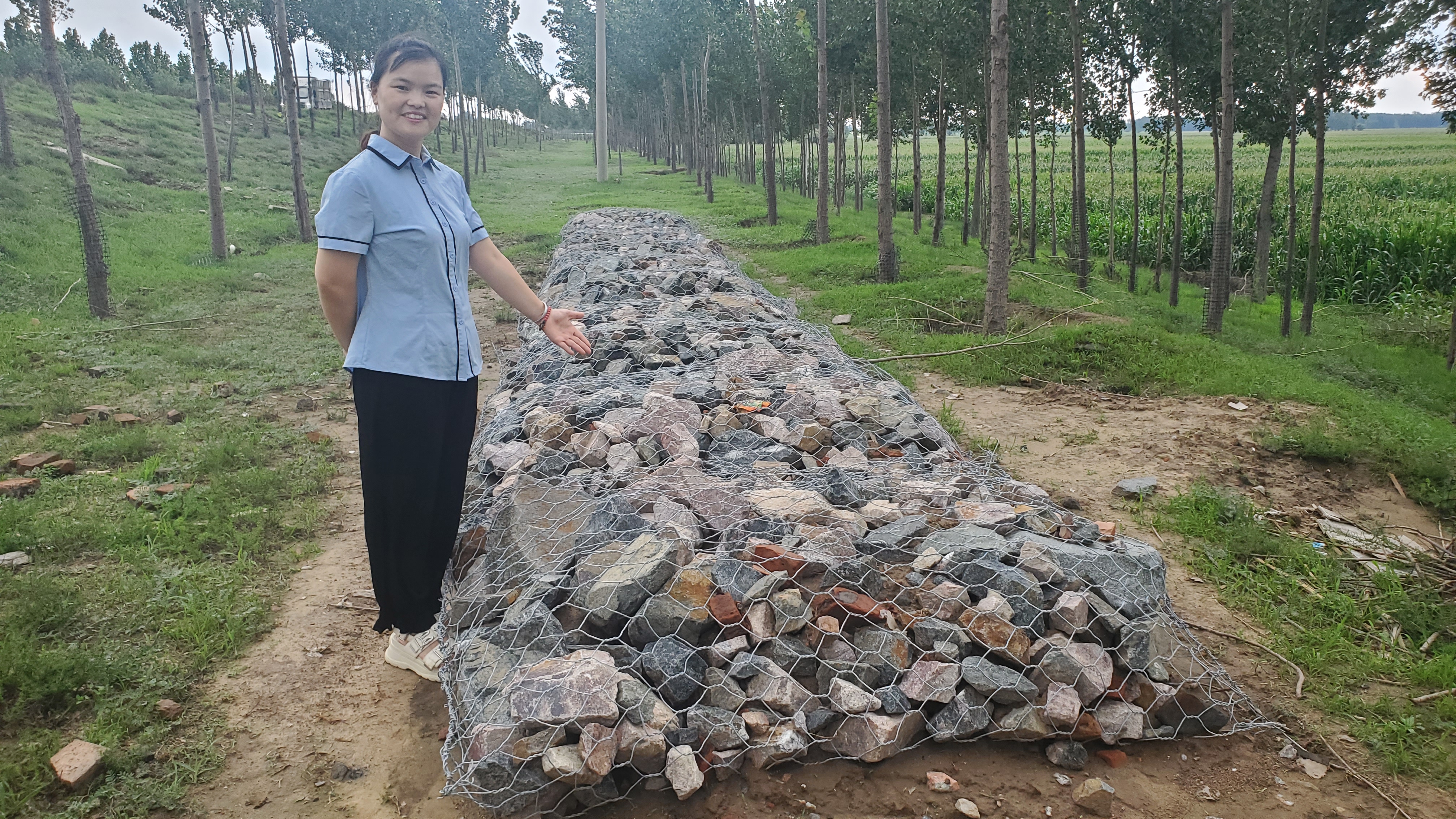

Galvanized & PVC Coated Gabion Wall Stone Cage for Landscape Garden Retaining Wall
Galvanized & PVC Coated Gabion Wall Stone Cage for Landscape Garden Retaining Wall
Specifications
Gabion Unit Size :
1×0.5×0.5m, 2×1×0.5m, 3×1×0.5m, Customized
Surface treatment :
Hot Dipped Galvanized, PVCcoated, Galvanized+PVC Coated
MOQ :
1000
Place of Origin :
CHIAN
Application :
Gabions,Cages,slope protection,Fence Mesh,Construction Wire Mesh
Model Number :
KN211
Color :
green,black,
Packaging Details :
In Bundle for Container, LCL shipping will use Pallet
Wire Diameter :
2.0mm - 4.0mm
Aperture :
60×80mm, 80×100mm, 100×120mm, 120×150mm
Packing :
Pallet,Bundle
Payment Terms :
L/C,T/T,Western Union
Type :
Hexagonal wire mesh, Double Twist
sample :
Free
Brand Name :
KN
Supply Ability :
30000 square meter per 7 days
Product Name :
Galvanized & PVC Coated Gabion Wall Stone Cage for Landscape Garden Retaining Wall
Certification :
ISO, CE, COC, CO
Price :
Negotiate
Delivery Time :
5-8 working days
Material :
Galvanized Iron Wire,Low-Carbon Iron Wire,pvc wire, Galfan Wire
Hole shape :
Hexagonal, Double Twist
Description

Galvanized & PVC Coated Gabion Wall Stone Cage for Landscape Garden Retaining Wall

Marketing Slogans

- Eco-Friendly Gabion Wall for Landscape & Civil Engineering - High Strength Anti-Rust Gabion Retaining Wall for Outdoor Construction - Custom Size Stone Filled Gabion Wall Factory Direct Supply

Galvanized & PVC Coated Gabion Wall Stone Cage for Landscape Garden Retaining Wall

FAQ

Q1: How long is the service life of gabion wall? A1: Hot dipped galvanized type lasts 20-30 years; Galfan and PVC coated type can reach 50-60 years.
Q2: Can gabion wall be customized in size? A2: Yes, all dimensions, mesh sizes and wire thickness can be customized according to project requirements.
Q3: Is gabion wall suitable for coastal areas? A3: Yes, PVC coated Galfan gabion wall is specially designed for salt

Common Gaboin Basket Size :

Gabion Basket SizeNotes
Length (M)Width(M)Height(M)DiaphragmCBM (m³)
11101
21112
31123
41134
51145
61156
Other Size Accept Customized

Gabion Mattress SizeNotes
Length (M)Width(M)Height(M)DiaphragmCBM (m³)
110.3/0.500.3/0.5
210.3/0.510.6/1
310.3/0.520.9/1.5
410.3/0.531.2/2
520.3/0.543/5
620.3/0.553.6/6
Other Size Accept Customized

Product Usage:

Gabion Basket Technical Data as Followed:

Technical Data List
ParameterDescriptionTypical Value / Range
MaterialBase material used for constructing the meshHDP/Galvanized Wire, PVC Wire
CoatingSurface treatment for enhanced corrosion resistanceGalvanized, HDP Galvanized, PVC Coated
Wire DiameterThe thickness of the wires used in the mesh

Mesh Wire: 2.0~3.05mm

Selvage Wire: 2.4~4.0mm

Tie Wire: 2.0~2.4mm

Mesh Opening SizeThe size of the openings between wires, determining the size of stones that can be contained

60*80mm, 80*100mm, 100*120mm,120*150mm

Overall DimensionsStandard Gabion Roll and Gabion Basket Size

Gabion Roll Width: 1~4m

Gabion Basket: 1*1*1m,2*1*1m,3*1*1m,4*1*1m,,5*1*1m,6*1*1m,

LifespanExpected service life under normal installation and maintenance conditions

Generally 6~20 years, depends on environment.

Cost-Effective & Professional Service (From Canada Bulk Buyer)
“Comparing with several suppliers, this gabion wall has the best craftsmanship and reasonable price. The team provides professional installation advice and complete export documents. Long-term cooperative supplier.”
— Eric W., Purchasing Manager

package & loading:

Galvanized & PVC Coated Gabion Wall Stone Cage for Landscape Garden Retaining Wall

Galvanized & PVC Coated Gabion Wall Stone Cage for Landscape Garden Retaining Wall
