Heavy Zinc Hexagon Gabion Mesh Baskets 2.8mm Stone Filled Wire Mesh Wall
Heavy Zinc Hexagon Gabion Mesh Baskets 2.8mm Stone Filled Wire Mesh Wall
Heavy Zinc Hexagon Gabion Mesh Baskets 2.8mm Stone Filled Wire Mesh Wall
Heavy Zinc Hexagon Gabion Mesh Baskets 2.8mm Stone Filled Wire Mesh Wall
Specifications
Brand Name :
HBGB
Model Number :
GB-002
Certification :
ISO 9001
Place of Origin :
China
MOQ :
50 PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day
Delivery Time :
10-25days
Packaging Details :
compacted before packaging, in bundle
Product name :
Gabion mesh basket
Material :
low carbon steel wire Q195
Surface treatment :
PVC coated, heavy zinc, galfan wire
Wire diameter :
popular 2.7mm (2.0-4.0mm)
Aperture :
8 x 10 cm (standard)
Hole shape :
hexagonal
Usage :
Slope Retaining Wall
Sample :
for free
If factory :
yes
Customer's logo :
support
Description

Hexagonal Gabion mesh baskets filled with stone for slope stabilization

Gabion Mesh Basket Introduction:

Gabion Mesh is also called gabion box, stone gabion mesh,gabion basket, hexagonal wire netting gabion and gabion wall etc.

According to its weave method, it includes hexagonal gabion mesh and welded gabion mesh. It also could be classified into gabion box, gabion mat( ), gabion mesh sack, hesco barrier (hesco bastion, flood barrier, security gabion) and system. Gabion mesh could be electro galvanized gabion mesh,hot dipped galvanized gabion mesh, zinc-aluminum-mischmetal (Zn-Al-MM) alloy gabion mesh (Galfan gabion mesh), polyester powder(PVC) coated gabion mesh and polyester powder(PVC) coated after galvanized gabion mesh etc.

For both of hexagonal gabion mesh and welded gabion mesh, field installation is quick and easy. In fact, welded type gabion’s installation time can be as much as 40% less than required by hexagonal type gabion. Unlike hexagonal type, Welded Gabion hold their shape better – they don’t bulge out when filled,they are easy to handle, which means more work,less labor and highter productivity.

Gabion Mesh Basket Surface Treatment:

1. Hot dip galvanized. The amount of zinc can reach 300g / m2. Strong antiseptic

2. Galfan (zinc aluminum alloy). This is divided into two materials, zinc-5% aluminum-mixed rare earth alloy steel wire, zinc-10% aluminum mixed rare earth alloy steel wire. Super corrosion resistance

3. PVC coating. The thickness of the plastic coating is generally 1.0mm, for example: 3.7mm after 2.7mm. Strong antiseptic

Gabion Mesh Basket Applications:

The structure can be used for slope support, foundation pit support, mountain rock surface hanging net spraying, slope planting
(greening), railway highway isolation fence, it can also be made into box cages, net pads, used in rivers, Anti-scouring
protection for dams and sea ponds and cages for reservoirs and river closures.

Gabion Mesh Basket Specifications:

Mesh Size

Galvanized Gabion( Dia.mm)

PVC Gabion (Inside Dia/Outside Dia.mm)

Max Wide Cut

60x80mm

Φ2.0-2.8

Φ2.0/3.0-2.8/3.8

4300

80x100mm

Φ2.2-3.2

Φ2.2/3.2-3.0/4.0

4300

80x120mm

Φ2.2-3.2

Φ2.2/3.2-3.0/4.0

4300

100x120mm

Φ2.4-3.5

Φ2.4/3.4-3.2/4.2

4300

100x150mm

Φ2.4-3.5

Φ2.4/3.4-3.2/4.2

4300

120x150mm

Φ2.7-4.0

Φ2.7/3.7-3.5/4.5

4300

Normal box size

(m)

Mesh size

(mm)

No. of diaphragms

(no.)

Capacity per box

(m3)

1.0x1.0x0.5

50x50

75x75

50x100

100x100

0

0.50

1.0x1.0x1.0

0

1.00

1.5x1.0x0.5

0

0.75

1.5x1.0x1.0

0

1.50

2.0x1.0x0.5

1

1.00

2.0x1.0x1.0

1

2.00

3.0x1.0x0.5

2

1.50

3.0x1.0x1.0

2

3.00

4.0x1.0x0.5

3

2.00

4.0x1.0x1.0

3

4.00

Woven type Gabion mesh basket:

Heavy Zinc Hexagon Gabion Mesh Baskets 2.8mm Stone Filled Wire Mesh Wall

Packing & loading pictures:

Heavy Zinc Hexagon Gabion Mesh Baskets 2.8mm Stone Filled Wire Mesh Wall

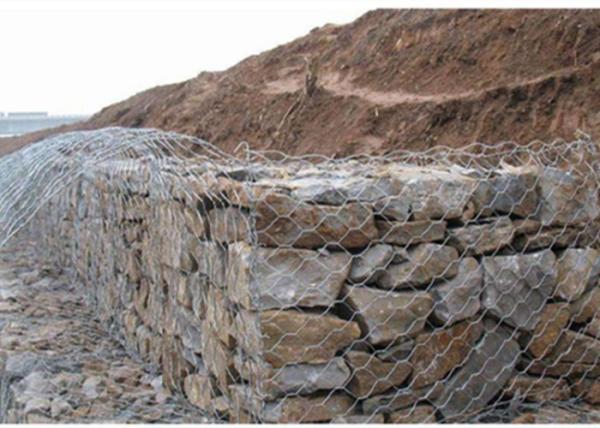

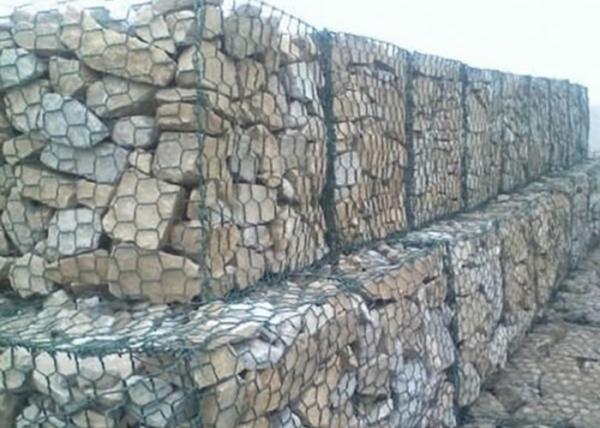

Application:

Heavy Zinc Hexagon Gabion Mesh Baskets 2.8mm Stone Filled Wire Mesh Wall
