Bto 22 Concertina Razor Barbed Wire Hot Dipped Galvanized Anti Climb
Bto 22 Concertina Razor Barbed Wire Hot Dipped Galvanized Anti Climb
Bto 22 Concertina Razor Barbed Wire Hot Dipped Galvanized Anti Climb
Bto 22 Concertina Razor Barbed Wire Hot Dipped Galvanized Anti Climb
Specifications
Brand Name :
HBGB
Model Number :
BTO -10, BTO -12, BTO-18, BTO-22, CBT-60, CBT-65
Certification :
ISO 9001
Place of Origin :
China
MOQ :
50 rolls
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 rolls per day
Delivery Time :
10 - 20 days
Packaging Details :
1) compression rolls, 5 rolls, 10 rolls, or more rolls as one bundle 2) 1 roll, 3 rolls or 5 rolls in one carton
Product name :
Razor barbed wire
Material :
stainless steel
SS grade :
ss 304, 316, 430
Blade thickness :
0.3,0.35,0.4,0.45,0.5mm
Type :
Razor Barbed Wire Coil
Weight of coil :
10-100Kg/coil
Length of covering :
10m or customized
Barb distance :
75-150mm
Packing :
woven bags
Description

Bto 22 Concertina Wire Hot Dipped Galvanized Anti Climb Razor Wire

Razor barbed wire description:

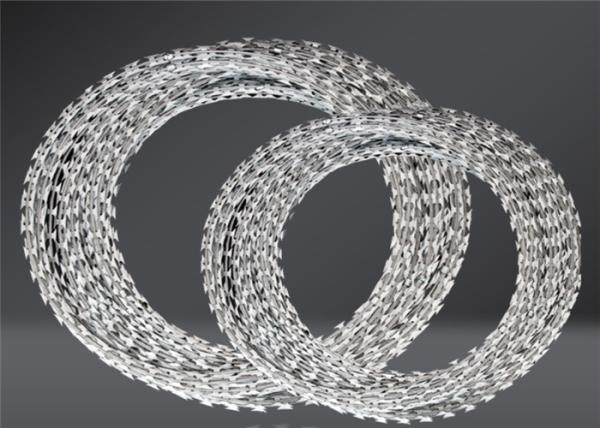

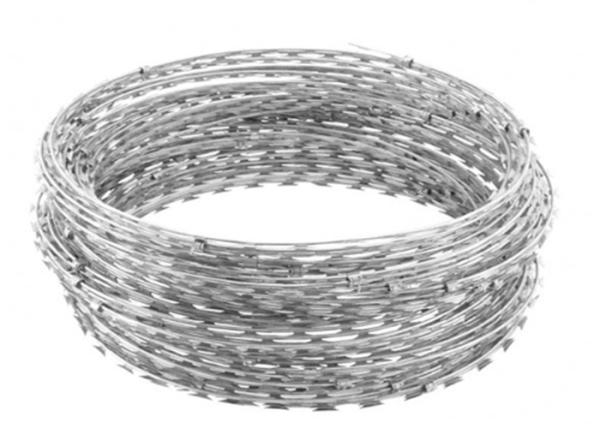

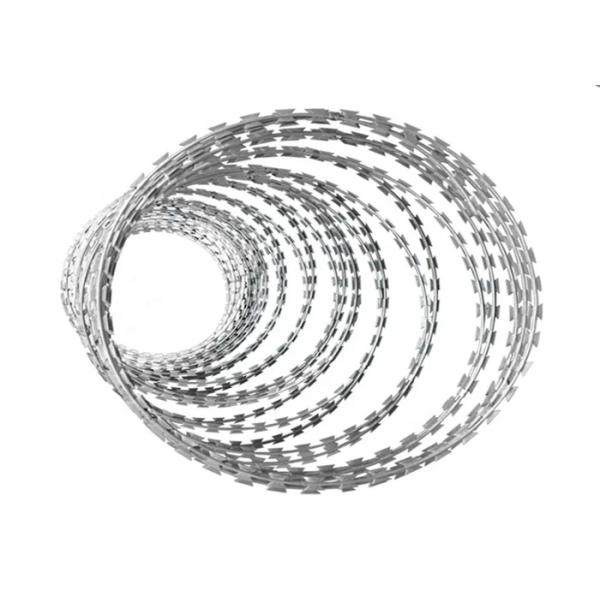

It is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.

Bto 22 Concertina Razor Barbed Wire Hot Dipped Galvanized Anti Climb

Razor barbed wire characteristics:

Razor Barbed Wire
Material High quality low carbon steel wire, iron wire, etc.
Category Hot dipped galvanized,Electric galvanized ,PVC coated
Coil Diameter 600 mm
Line Wire Diameter 2.5mm
Barbed Tape Thickness 0.45 ~ 0.5 ± 0.05mm
Length of Barbed Tape 10mm
Width of Barbed Tape 13mm
Spacing of Barbed Tape 25mm
Tensile Strength 1500-1520N/MM2

Razor barbed wire surface treatment:


Electro galvanized core wire and blade
hot-dipped galvanized core wire and blade
stainless steel core wire and blade
PVC coated core wire and blade
Hot-dipped galvanized core wire+stainless steel blade

Razor barbed wire specifications:

Concertina Coil Specification
Coil Diameter 300mm 450mm 730mm 730mm 980mm 980mm 1250mm
(12inch) (18inch) (28inch) (36inch) (36inch) (36inch) (50inch)
Recommended Stretch Length 4m 10m 15-20m 10-12m 10-15m 8m 8m
Coil Diameter When Stretched 260mm 400mm 600mm 620mm 820mm 850mm 1150mm
Spiral Turns Per Coil 33 54/55 54/55 54/55 54/55 54/55 54/55
Clips Per Spiral 3 3 3 5 5 7 9

Barbed Tape Wire Specification
Loop Outside Diameter No.Of Loops Standard Length Per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single Coil
500mm 56 12-13M CBT-60.65 Single Coil
700mm 56 13-14M CBT-60.65 Single Coil
960mm 56 14-15M CBT-60.65 Single Coil
450mm 56 8-9M(3CLIPS) BTO-10.12.18.22.28.30 Cross Type
500mm 56 9-10M(3CLIPS) BTO-10.12.18.22.28.30 Cross Type
600mm 56 10-11M(3CLIPS) BTO-10.12.18.22.28.30 Cross Type
600mm 56 8-10M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
700mm 56 10-12M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
800mm 56 11-13M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
900mm 56 12-14M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
960mm 56 13-15M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type
980mm 56 14-16M(5CLIPS) BTO-10.12.18.22.28.30 Cross Type

Application of razor barbed wire:

Bto 22 Concertina Razor Barbed Wire Hot Dipped Galvanized Anti Climb

Packing and loading:

Bto 22 Concertina Razor Barbed Wire Hot Dipped Galvanized Anti Climb
