Specifications
Brand Name :
SUNRICH
Model Number :
SRC-110-2
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
usd35000-usd48000
Supply Ability :
10 SETS/MONTH
Delivery Time :
35 WORKING DAYS
Packaging Details :
NUDE PACKING
Weaving Width :
4500mm
Dimension :
7200x1400x2400mm
Model :
SRC-110-2
System :
automatic PLC system with servo motor
Color :
Grey
Product Type :
Gabion Machine
Production Speed :
30-50m/min
Structure :
heavy duty
Zinc Coating :
220-280g/m2
Mesh Hole :
110mm × 130 mm
Working Width :
4500mm
Application :
Gabion box&Gabion Mattress&Gabion Cage
Description

1. Product Overview

Gabion Machine is an automated weaving equipment designed to produce gabion boxes, mattresses, and cages from galvanized or PVC-coated steel wires. These structures are widely used in below items:

  • Erosion control (riverbanks, coastlines)
  • Retaining walls (highways, railways)
  • Flood defense (emergency barriers)
  • Architectural landscaping (decorative structures)

2. Gabion Mesh Specifications

Parameter Standard Range Custom Options
Mesh Type Hexagonal woven Double-twist, PVC-coated
Wire Diameter 2.0mm–4.0mm (galvanized) Up to 5.0mm (Zn-5%Al alloy)
Mesh Size 60x80mm, 80x100mm, 100x120mm Any size (CAD-designed)
Cage Dimensions 1m×1m×1m to 3m×1m×1m Foldable/Modular designs
Filler Material Rocks, recycled concrete Geotextile-lined variants

3. Gabion Machine Product Models & Specifications

Model Mesh Size Wire Diameter Mesh Size (m) Speed(m/h)
SRC-60-2 60x80mm 2.0–3.0 mm 2m-5m 180m/h
SRC-80-2 80x100mm 2.0–3.5 mm 2m-5m 220m/h
SRC-100-2 100x120mm 2.0–4.0 mm 2m-5m 250m/h

4. Set of gabion mesh production line including

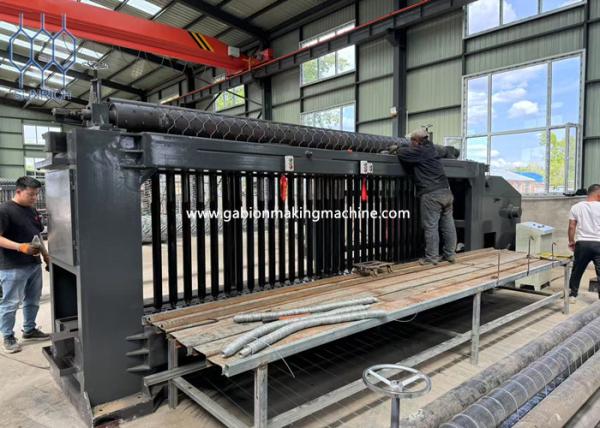

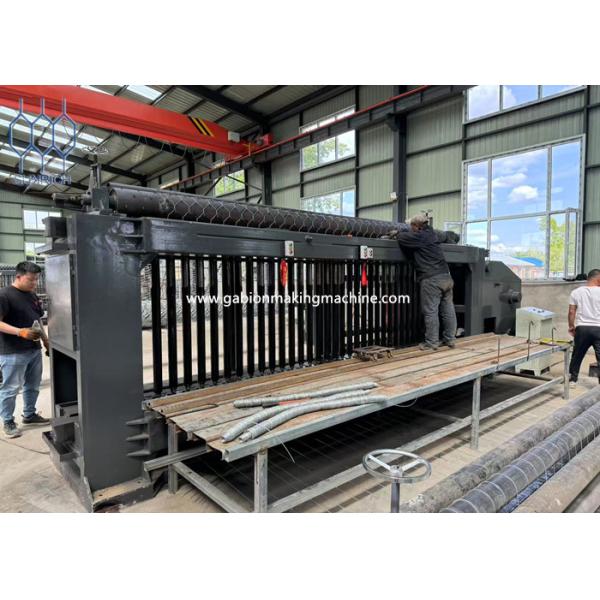

  • Gabion mesh weaving machine

Fully Automated Gabion Box Machine Production Line For River Revetment Slope Protection

  • Wire tension roller

Fully Automated Gabion Box Machine Production Line For River Revetment Slope Protection

  • Spring coiling machine

Fully Automated Gabion Box Machine Production Line For River Revetment Slope Protection

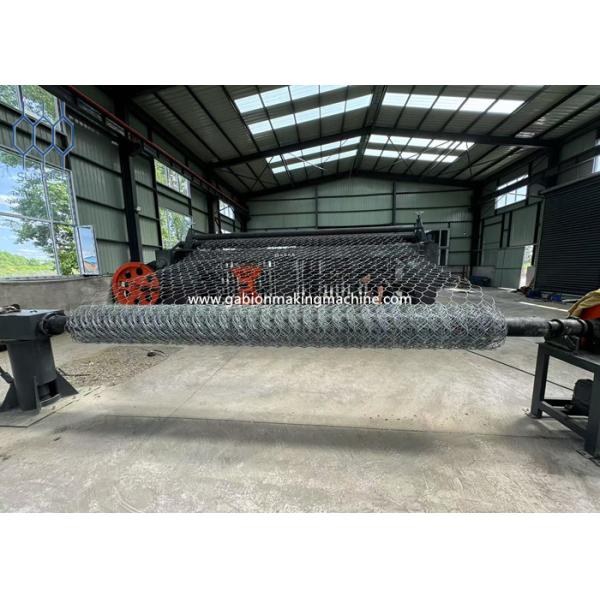

  • Netting winding machine

Fully Automated Gabion Box Machine Production Line For River Revetment Slope Protection

5. Equipment Advantages

  • High Efficiency: Produces 500–700 cages/day (vs. 100–150 manually).
  • Material Savings: AI-driven tension control reduces wire waste by 15%.
  • Energy Smart: Solar/hybrid power compatibility (30% lower CO2).
  • Multi-Function: Some models integrate filling & stitching.

6. Gabion Mesh Production Line Machinery List

Equipment Function Key Specifications Application
Double-Twist Weaving Machine Automatically weaves hexagonal mesh (enhanced strength). - Mesh size: 60×80mm to 100×120mm (adjustable)
- Output: 00–1200㎡/shift (8hrs)
Standard gabion production
Automatic Straightening & Cutting Machine Straightening and Cut gabion mesh sheet accordingly - Cutting precision: ±2mm
- Speed: 30 times/min
- Power: 380V/50Hz
Gabion Box /retaining walls
Edge winding machine Edge mesh sheet both sides - Mesh size: 60×80mm to 100×120mm (adjustable)
- Speed: 3-4pieces/min
- Width: 1-4m
Gabion Box /retaining walls
Gabion Packing machine Press gabion box - Packing size: 2x1x1mm or 3x1x1m
- Press: 60t
- Power: 380V/50Hz
Gabion Box /retaining walls
Iron Wire Straightening and cutting machine Side wire straightening and cutting - Cutting width: 5m
- Max Wire diameter: 5mm
Gabion Box /retaining walls

7. Export Markets & Certifications

  • Asia: India, Vietnam, Philippines, Nepal, Thailand, Indonesia
  • Europe: Poland, Spain, Italy, UK (for EU-standard CE-certified models)
  • Africa: South Africa, Algeria, Tunisia
  • Americas: Brazil, Mexico

8. After-Sales Service

  • Global technicians dispatched within 72 hours.
  • Free training videos and remote diagnostics.
  • Warranty Period: 12-month warranty, spare parts supply.
