Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash Can
Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash Can
Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash Can
Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash Can
Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash Can
Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash Can
Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash Can
Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash Can
Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash Can
Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash Can
Specifications
Brand Name :
FUTENG
Model Number :
FT-58SGM31ZY
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Motor Type :
FT-58SGM31ZY
Gear Box Size :
58*40mm
Rated Voltage :
12v 24v other can be customized
Rated Speed RPM :
1-1500 RPM
Rated Torque :
2-50kgf.cm other can be customized
Stall Torque :
10-300kgf.cm other can be customized
Power :
1w 3w 5w 6w 10w 15w other can be customized
Output Shaft :
D -Cut ,Round other can be customized
Gear Ratio :
1:12.5 / 1:26/1:54/1:75/1:106/1:150/1:161/1:205/1:331/1:394/1:202/1:250/1:313/1:402/1:483/1:548/1:569/1:663/1:777/1:804/1:1168/1:1327
Gearbox Efficiency % :
45% 53% 55%
Samples :
1-100 Pieces
MOQ :
1000 Pieces
Name :
DC Worm Gear Motor
Description
Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash CanFull Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash Can
Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash Can
Full Metal High Torque 12v 24v Worm Gear Motor with Self-Locking Function FT-58SGM31ZY Application for Automatic Trash Can
Product Features:

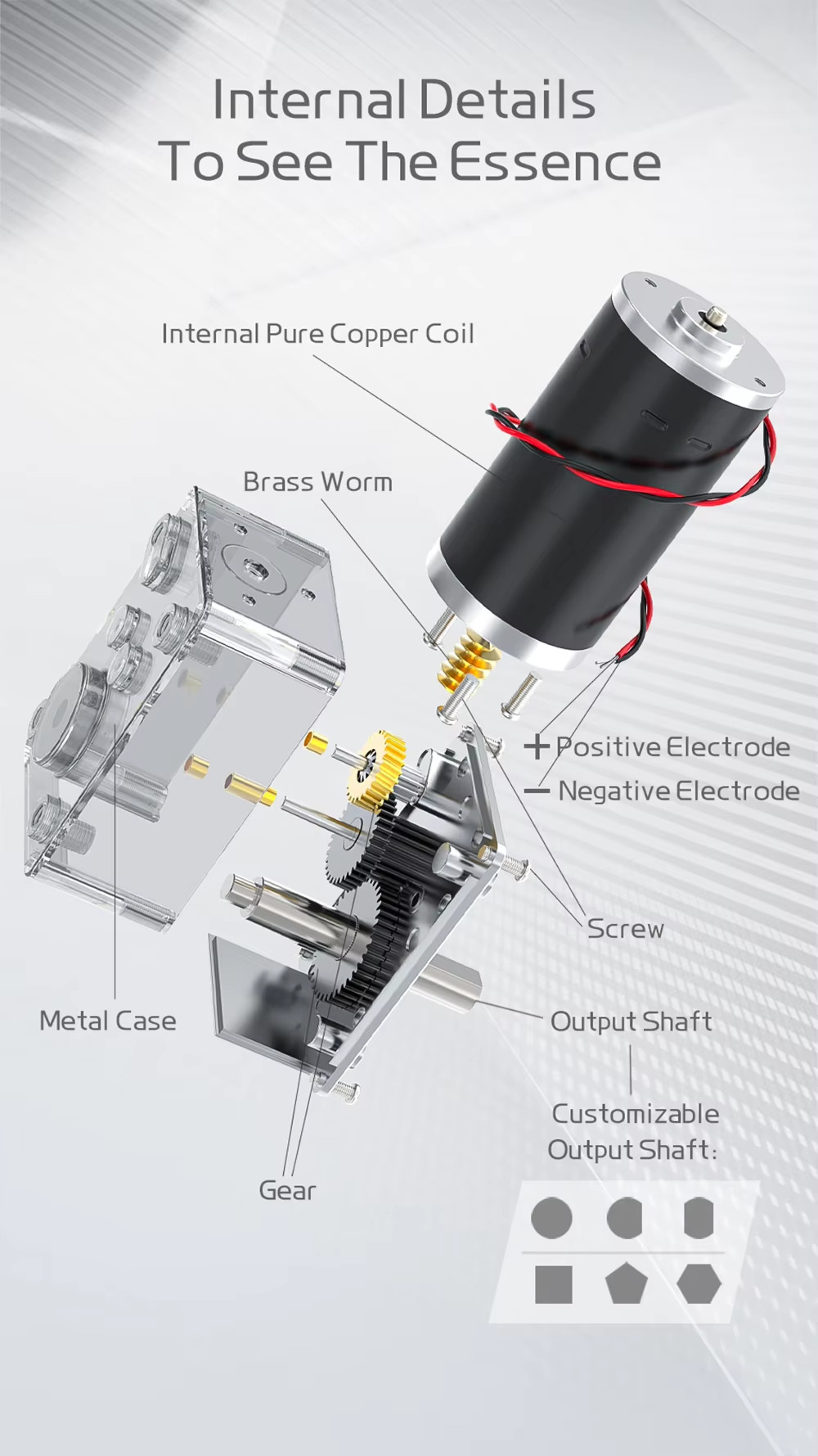

  1. Very sturdy construction inside and outside. The outside shell is well built with excellent access to mounting M4 screws.
  2. Double ball bearing and carbon pad brushes ensure super quiet, smooth operation and extended lifespan, even under maximum load.
  3. Gear DC motor with micro-turbine worm allows changing motor rotation (CW/CCW) by modifying wiring connections.
  4. Turbo worm geared motor features self-locking function - output axis remains fixed when motor is not powered.
  5. Reducer output shaft is arranged vertically with the motor shaft, featuring a relatively short output shaft ideal for space-constrained installations.
Product Advantages
Definition: Gear reduction motor based on ordinary DC motor with matching gear reducer.
Features: Small size, high strength, low noise, long lifespan.
Function: Provides lower speed, larger torque, and self-locking capability.
Advantage: Saves space, increases torque, and reduces speed RPM.
