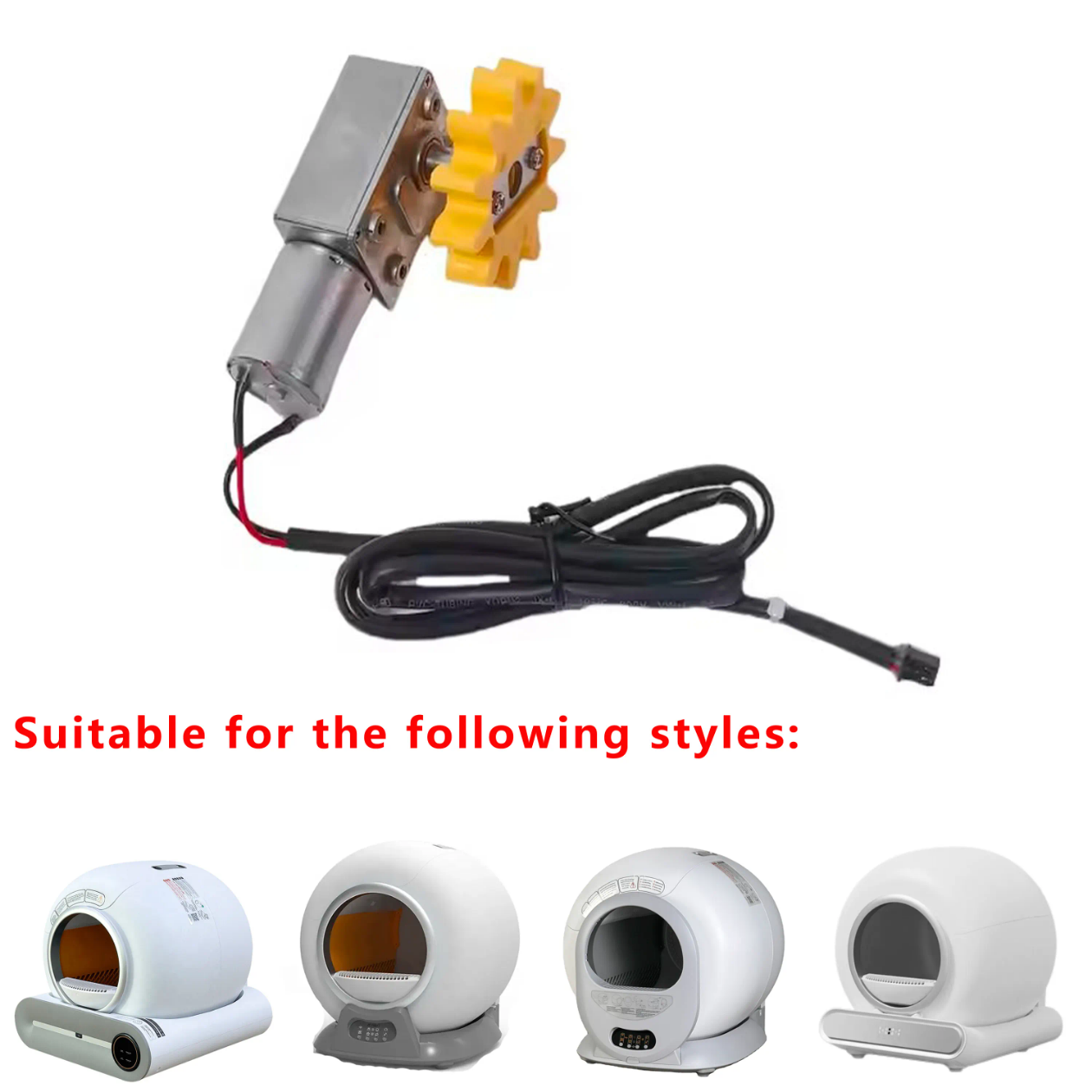

FT-46SGM370 Excellent Quality Big Torque High Efficiency Silent 12v24v 2-500RPM Slow Speed Worm Gear Motor

• Very sturdy construction inside and outside. The outside shell is well built with excellent access to mounting M4 screws.

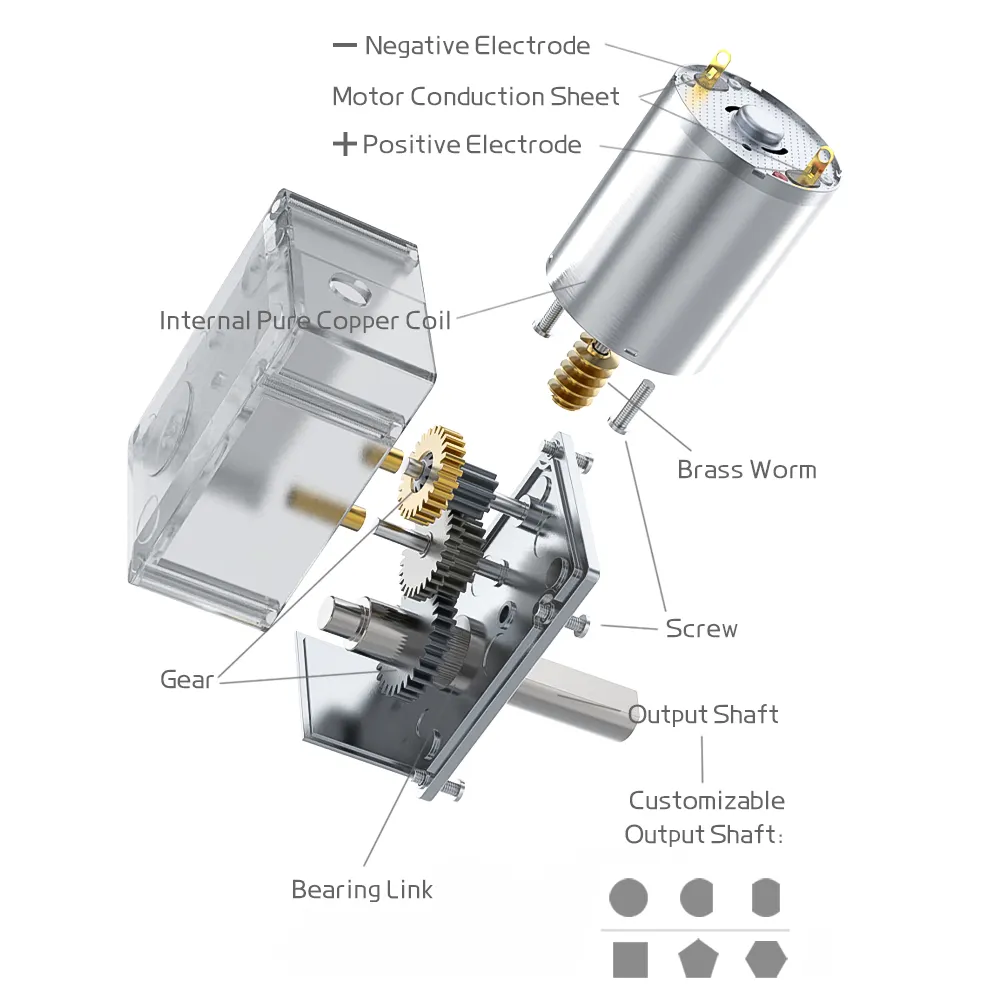

• Double ball bearing and carbon pad brushes construction, ensuring super quiet and smooth operation with longer lifespan even under maximum load.
• Gear DC motor with micro-turbine worm design allows changing wiring connection to alter motor rotation (CW / CCW).
• Turbo worm geared motor with self-locking feature - output axis remains fixed when motor is without electricity.
• Reducer output shaft arranged vertically with motor shaft, providing relatively shorter output shaft than general gear motors, ideal for space-constrained installations.

The gear reduction motor is based on ordinary DC motor and equipped with matching gear reducer.

• Small size, high strength, low noise, long life
• Provides lower speed, larger torque, and self-locking capability
• Simplifies space requirements while increasing torque and reducing RPM

• Motors are not allowed to be used beyond the limit of stall torque.
• Please choose power supply (DC: 12V/24V) reasonably according to product input voltage requirements.

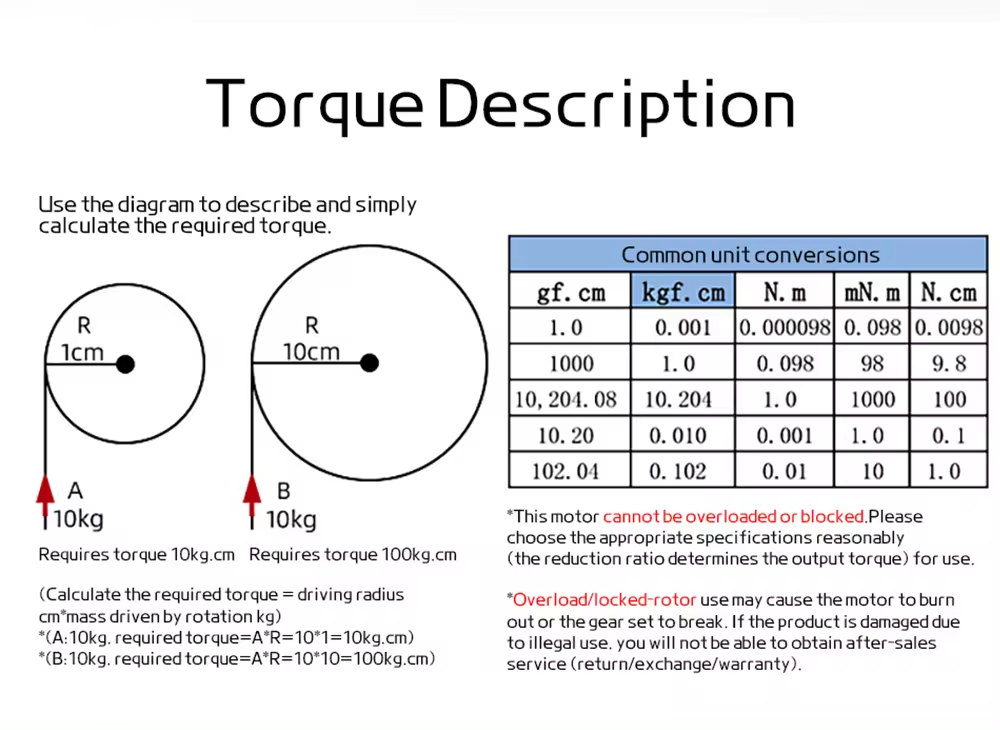

• Load torque = rated torque; load speed = rated speed when load torque matches rated torque. If actual load exceeds rated load, actual output speed should be correspondingly reduced.
• It is recommended to refer to rated torque when selecting model.
• Damage to internal components may occur when approaching/exceeding stall torque limit.
• Reducing motor speed will result in decrease in output torque.
• Approximately 40db noise during motor operation, which may vary slightly with speed changes.
• Reduction ratio determines output torque! Larger reduction ratio provides greater torque and lower speed (speed adjustment alone does not maintain torque).
