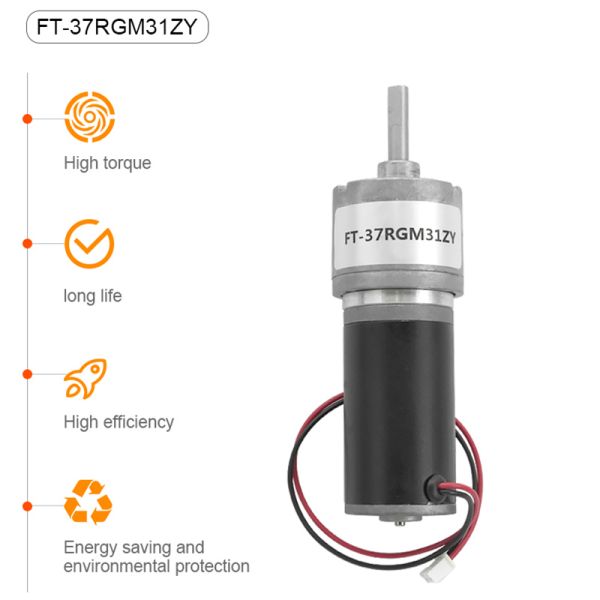

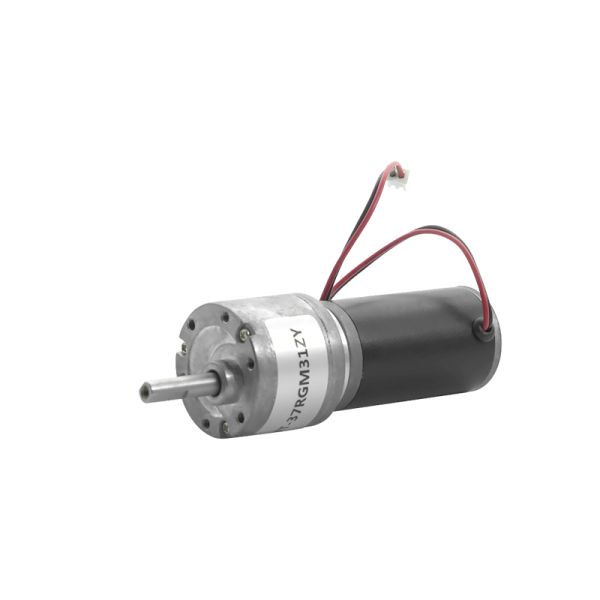

HighTorque DC Spur Gear Motor FT-37RGM31ZY Slow Speed 2-600 Rpm Low Noise
HighTorque DC Spur Gear Motor FT-37RGM31ZY Slow Speed 2-600 Rpm Low Noise
HighTorque DC Spur Gear Motor FT-37RGM31ZY Slow Speed 2-600 Rpm Low Noise
HighTorque DC Spur Gear Motor FT-37RGM31ZY Slow Speed 2-600 Rpm Low Noise
HighTorque DC Spur Gear Motor FT-37RGM31ZY Slow Speed 2-600 Rpm Low Noise
HighTorque DC Spur Gear Motor FT-37RGM31ZY Slow Speed 2-600 Rpm Low Noise
Specifications
Model Number :
FT-37RGM31ZY
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Continuous Current(A) :
about 110mA-550mA
Efficiency :
48%-81%
Commutation :
Brush
Construction :
Permanent Magnet
Rated Power :
1-48w
Rated voltage :
3-24V, 12v/24v
Speed Rpm :
2rpm-600rpm
Torque :
18-50000 g.cm, 160/295/230/170(g.cm)
Type :
Gear Motor
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-37RGM31ZY
Gear box size :
37mm
Rotating speed :
4500/8000/4500/6000(rpm)
Current :
250/550/100/120(mA)
Output :
9.7/44.4/10.8/18.5(w)
Name :
DC Spur Gear Motor
Description

HighTorque DC Spur Gear Motor FT-37RGM31ZY Slow Speed 2-600 Rpm Low Noise

Geared motor model: FT-37RGM31ZY Gearbox diameter: Ø37mm Voltage: 1-24V Speed: 1rpm-2500rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.
Gearbox Data:
Gear stages
2
3
4
5
6
7
Reduction ratio (K)
6.8,10
20,30
61,90
100
115,184 270,300
414,552,614 810,900
1243,1657 2430,2700
Gear box length L(mm)
19
22.5
25
27.5
30
32.5
Rated torque (kg·cm)
1
2
5
6
8
10
Instant torque (kg·cm)
3
6
15
18
24
30
Gearbox efficiency (%)
81%
73%
65%
59%
53%
48%
Motor Data
Motor Model
No Load
Load
Stall
Motor Model
Rated Voltage
Speed
Current
Speed
Current
Output
Torque
Current
Torque
V
(rpm)
(mA)
(rpm)
(mA)
(w)
(g·cm)
(mA)
(g·cm)
FT-545
12
4500
250
3800
810
9.7
160
3700
910
FT-545
12
8000
550
6700
3700
44.4
295
11000
1500
FT-545
24
4500
100
3100
450
10.8
230
1400
730
FT-545
24
6000
120
4800
770
18.5
170
3300
770
