Specifications
Model Number :
FT-16PGM050
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Packaging Details :
Standard Export Carton & Customzied
Delivery Time :
15-30 days/Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Continuous Current(A) :
about 110mA-550mA
Efficiency :
43%-75%
Rated Power :
1-48w
Rated voltage :
3-24v
Speed Rpm :
1rpm-600rpm
Torque :
18 g.cm, 0.05kgf.cm~2.5kgf.cm
Type :
Gear Motor
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-16RGM0500067500-112K-11D
Model :
NdFeB
Round Gearbox size :
16mm*L
Voltage :
3-24VDC
Typical applications :
Automatic door-lock, projector, hairdressing equipment
Direction :
CW, CCW
Voltage, speed, and shaft :
can be customized based
Current :
≤60/70/30/50
Rated Volt :
6/12V
Name :
DC Spur Gear Motor
Description

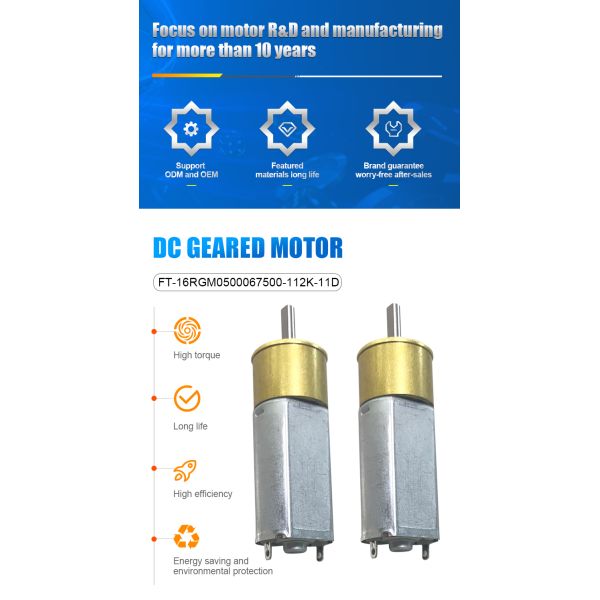

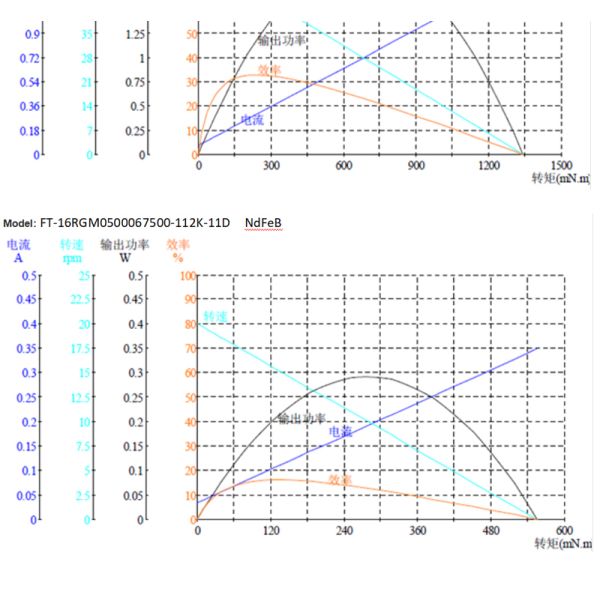

FT-16RGM0500067500-112K-11D NdFeB DC Motor

1. Main voltage: 3-24VDC 2. Typical applications: Automatic door-lock, projector, hairdressing equipment 3. Round Gearbox size: φ16mm*L 4. Torque: 0.05kgf.cm~2.5kgf.cm 5. Direction: CW, CCW 6. Voltage, speed, and shaft can be customized based 7. Encoder 3PPR available

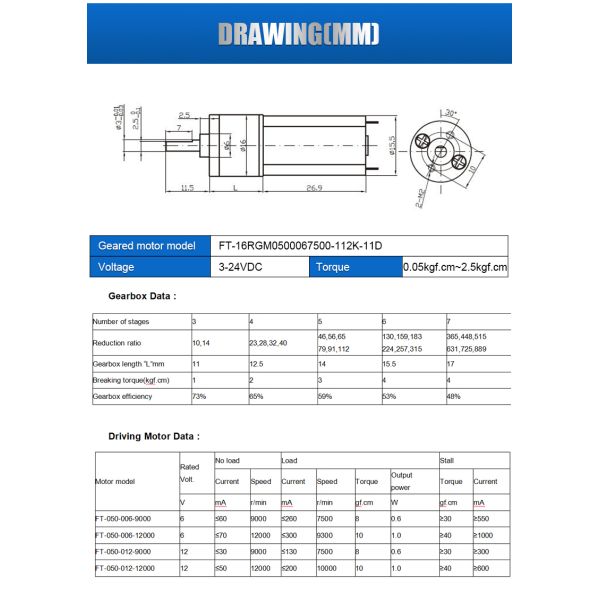

Gearbox Data





Number of stages
3
4
5
6
7
Reduction ratio
10,14
23,28,32,40
46,56,65,79,91,112
130,159,183,224,257,315
365,448,515,631,725,889
Gearbox length “L”mm
11
12.5
14
15.5
17
Breaking torque(kgf.cm)
1
2
3
4
4
Gearbox efficiency
73%
65%
59%
53%
48%
Driving Motor Data









Motor model
Rated
Volt.
No load

Load



Stall



Current
Speed
Current
Speed
Torque
Output
power
Torque
Current

V
mA
r/min
mA
r/min
gf.cm
W
gf.cm
mA
FT-050-006-9000
6
≤60
9000
≤260
7500
8
0.6
≥30
≥550
FT-050-006-12000
6
≤70
12000
≤300
9300
10
1.0
≥40
≥1000
FT-050-012-9000
12
≤30
9000
≤130
7500
8
0.6
≥30
≥300
FT-050-012-12000
12
≤50
12000
≤200
10000
10
1.0
≥40
≥600

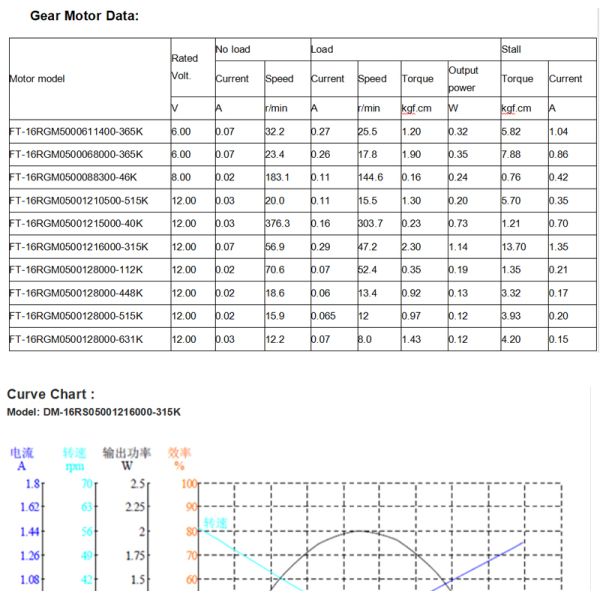

Motor model
Rated Volt
No load

Load



Stall



Current
Speed
Current
Speed
Torque
Output power
Torque
Current

V
A
r/min
A
r/min
kgf.cm
W
kgf.cm
A
FT-16RGM5000611400-365K
6.00
0.07
32.2
0.27
25.5
1.20
0.32
5.82
1.04
FT-16RGM0500068000-365K
6.00
0.07
23.4
0.26
17.8
1.90
0.35
7.88
0.86
FT-16RGM0500088300-46K
8.00
0.02
183.1
0.11
144.6
0.16
0.24
0.76
0.42
FT-16RGM05001210500-515K
12.00
0.03
20.0
0.11
15.5
1.30
0.20
5.70
0.35
FT-16RGM05001215000-40K
12.00
0.03
376.3
0.16
303.7
0.23
0.73
1.21
0.70
FT-16RGM05001216000-315K
12.00
0.07
56.9
0.29
47.2
2.30
1.14
13.70
1.35
FT-16RGM0500128000-112K
12.00
0.02
70.6
0.07
52.4
0.35
0.19
1.35
0.21
FT-16RGM0500128000-448K
12.00
0.02
18.6
0.06
13.4
0.92
0.13
3.32
0.17
FT-16RGM0500128000-515K
12.00
0.02
15.9
0.065
12
0.97
0.12
3.93
0.20
FT-16RGM0500128000-631K
12.00
0.03
12.2
0.07
8.0
1.43
0.12
4.20
0.15
