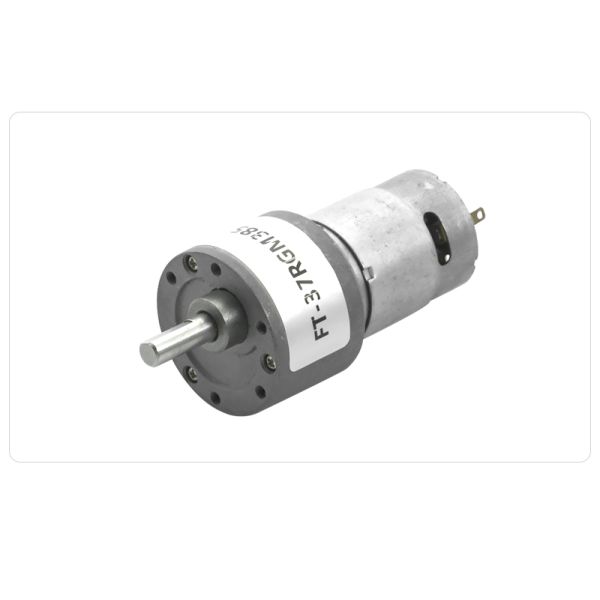

37mm Gear Box with 385 395 Motors High Speed 2-300 Rpm 12V 24V DC Spur Gear Motor
37mm Gear Box with 385 395 Motors High Speed 2-300 Rpm 12V 24V DC Spur Gear Motor
37mm Gear Box with 385 395 Motors High Speed 2-300 Rpm 12V 24V DC Spur Gear Motor
37mm Gear Box with 385 395 Motors High Speed 2-300 Rpm 12V 24V DC Spur Gear Motor
37mm Gear Box with 385 395 Motors High Speed 2-300 Rpm 12V 24V DC Spur Gear Motor
37mm Gear Box with 385 395 Motors High Speed 2-300 Rpm 12V 24V DC Spur Gear Motor
37mm Gear Box with 385 395 Motors High Speed 2-300 Rpm 12V 24V DC Spur Gear Motor
37mm Gear Box with 385 395 Motors High Speed 2-300 Rpm 12V 24V DC Spur Gear Motor
37mm Gear Box with 385 395 Motors High Speed 2-300 Rpm 12V 24V DC Spur Gear Motor
37mm Gear Box with 385 395 Motors High Speed 2-300 Rpm 12V 24V DC Spur Gear Motor
Specifications
Model Number :
FT-37RGM380/385
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Continuous Current(A) :
about 110mA-550mA
Efficiency :
43%-75%
Commutation :
Brush
Construction :
Permanent Magnet
Rated Power :
1-48w
Rated voltage :
3-24V, 12v/24v
Speed Rpm :
5rpm-1000rpm
Torque :
1-58kgf.cm, 50/80/38/110(g.cm)
Type :
Gear Motor
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-37RGM380/385
Rotating speed :
3000/6000/3000/9000(rpm)
Current :
80/135/50/200(mA)
Output :
3.6/9.36/3.6/12(w)
Name :
DC Spur Gear Motor
Description

37mm Gear Box with 385 395 Motors High Speed 2-300 Rpm 12V 24V DC Spur Gear Motor

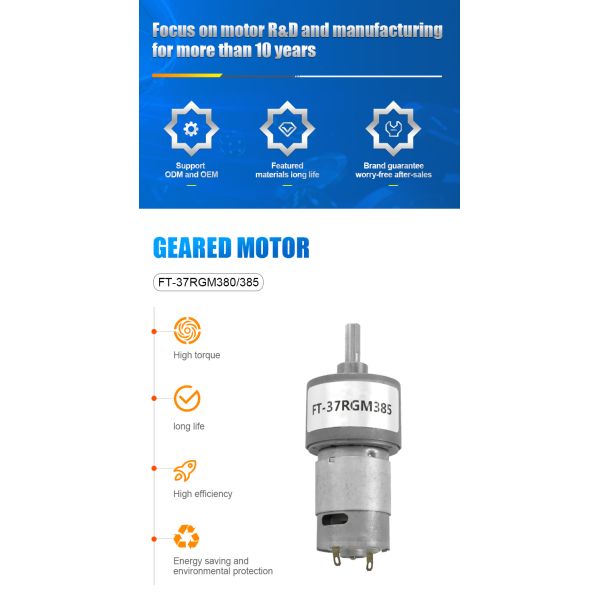

Geared motor model: FT-37RGM380/385 Gearbox diameter: Ø37mm Voltage: 1-24V Speed: 1rpm-2500rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

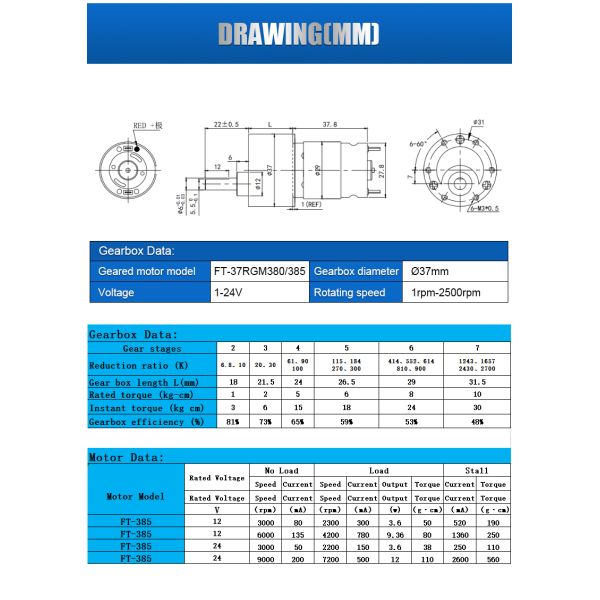

Gearbox Data:






Gear stages
2
3
4
5
6
7
Reduction ratio (K)
6.8,10
20,30
61,90
100
115,184 270,300
414,552,614 810,900
1243,1657 2430,2700
Gear box length L(mm)
18
21.5
24
26.5
29
31.5
Rated torque (kg·cm)
1
2
5
6
8
10
Instant torque (kg·cm)
3
6
15
18
24
30
Gearbox efficiency (%)
81%
73%
65%
59%
53%
48%
Motor Data









Motor Model

No Load

Load



Stall

Motor Model
Rated Voltage
Speed
Current
Speed
Current
Output
Torque
Current
Torque

V
(rpm)
(mA)
(rpm)
(mA)
(w)
(g·cm)
(mA)
(g·cm)
FT-385
12
3000
80
2300
300
3.6
50
520
190
FT-385
12
6000
135
4200
780
9.36
80
1360
250
FT-385
24
3000
50
2200
150
3.6
38
250
110
FT-385
24
9000
200
7200
500
12
110
2600
560
