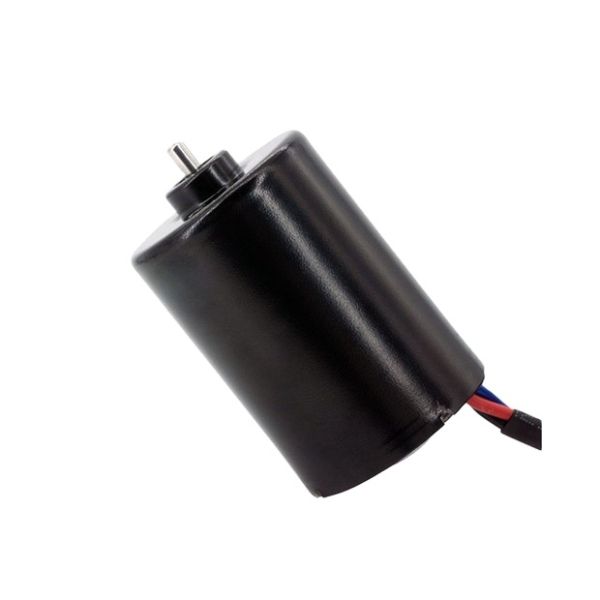

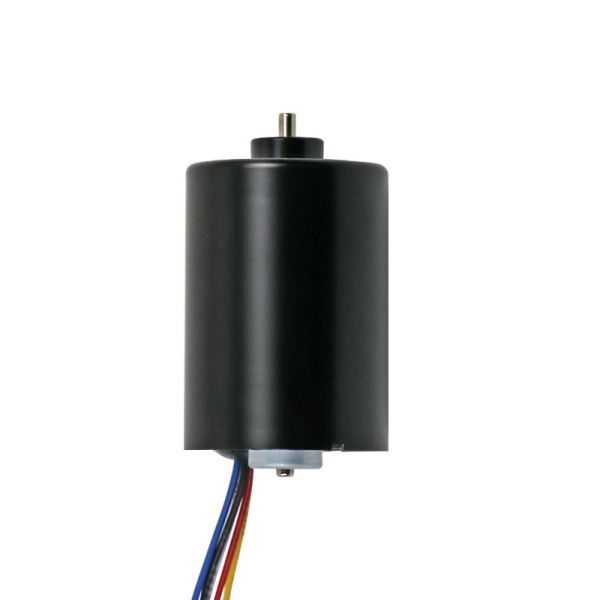

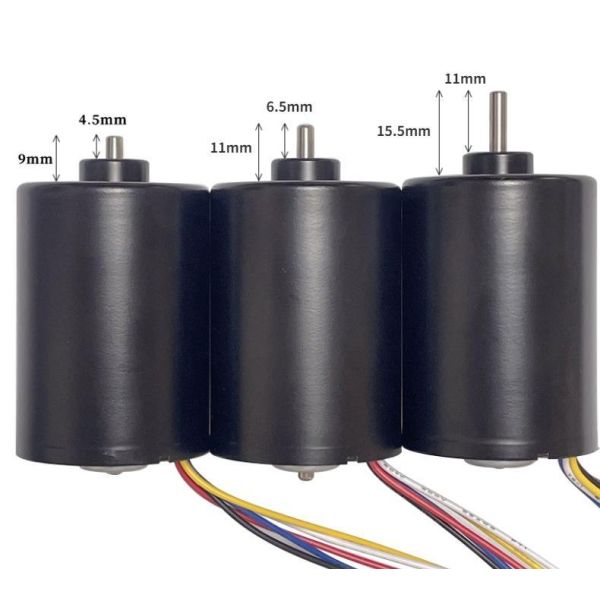

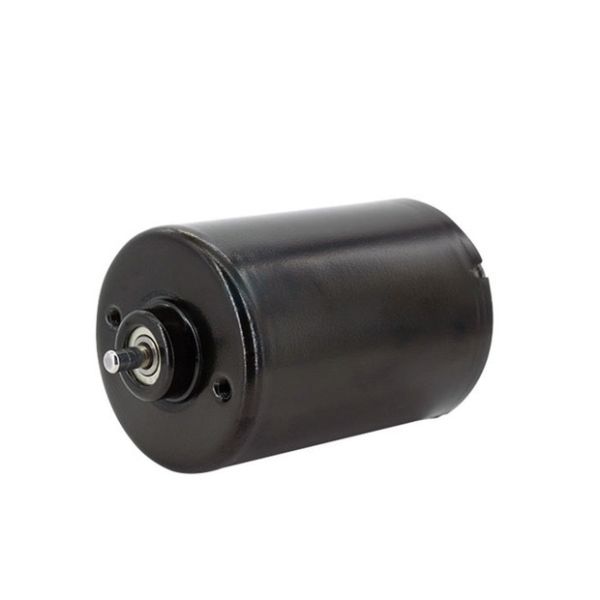

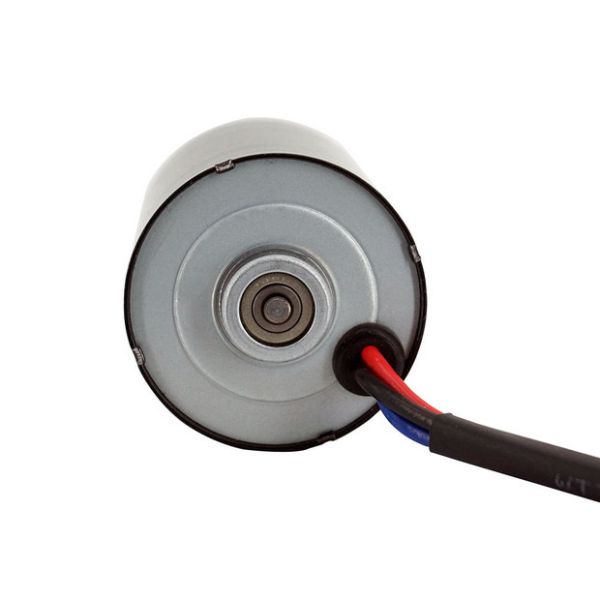

BLDC 3650 DC Brushless Motor

NOTICE :

The yellow and green wires are the speed signal output line, and they can't be connected any power supply, or it will be burnt.

Positive and negative power supply of encoder do not allow connect wrong;voltage is 3.3-5V.

Control CW or CCW of motor by changing the positive and negative power supply of encoder (change Red Wire and White Wire connect)

Red Wire - positive power supply of motor(+)

White Wire - negative power supply of motor(-)

Black Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrongly; voltage is3.3-5V)

Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrongly; voltage is 3.3-5V)

Yellow Wire - signal feedback (11 signals per motor turns a circle)

Green Wire - signal feedback (11 signals per motor turns a

circle)

FAQ

Q:1.What kind of motors you can provide?

A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 6~80mm and also Dia10~80mm size gear motors.

Q:2. Can you send me a price list?

A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?

A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?

A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5. Can I get some sample?

A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
