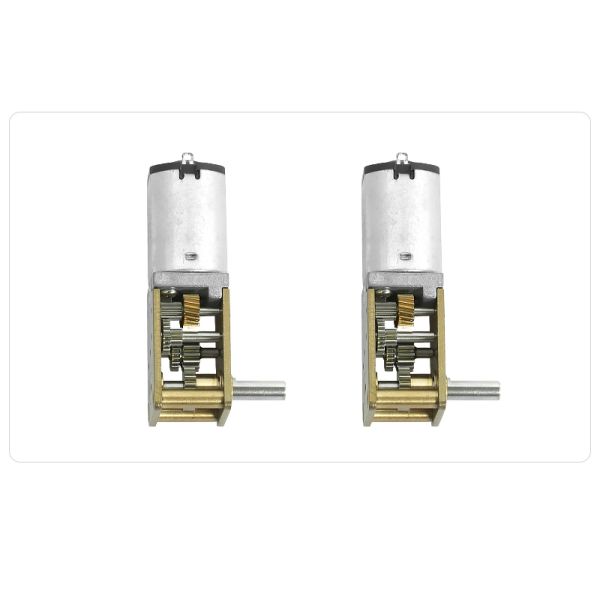

FT-12SGMN20 N30 Brushed DC Worm Gear Motor For Electronic Locks
FT-12SGMN20 N30 Brushed DC Worm Gear Motor For Electronic Locks
FT-12SGMN20 N30 Brushed DC Worm Gear Motor For Electronic Locks
FT-12SGMN20 N30 Brushed DC Worm Gear Motor For Electronic Locks
FT-12SGMN20 N30 Brushed DC Worm Gear Motor For Electronic Locks
FT-12SGMN20 N30 Brushed DC Worm Gear Motor For Electronic Locks
FT-12SGMN20 N30 Brushed DC Worm Gear Motor For Electronic Locks
FT-12SGMN20 N30 Brushed DC Worm Gear Motor For Electronic Locks
Specifications
Model Number :
FT-12SGMN20
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Name :
DC Worm Gear Motor
Continuous Current(A) :
about 1150mA
Efficiency :
48%-81%
Commutation :
Brush
Construction :
Permanent Magnet
Rated Power :
1-48w
Rated voltage :
3V-24V
Speed Rpm :
5rpm-450rpm
Torque :
1-10kgf.cm
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-12SGMN20
Reduction ratio :
59,118,236(K)
Gearbox diameter :
1 2mm worm gear
Gear box length L :
18(mm)
Gearbox efficiency :
30%
Gear stages :
4
Dimensions :
10*12*18
Description

Factory Customized FT-12SGMN20 N30 Brushed Motor DC Worm Gear Motor

FT MOTOR

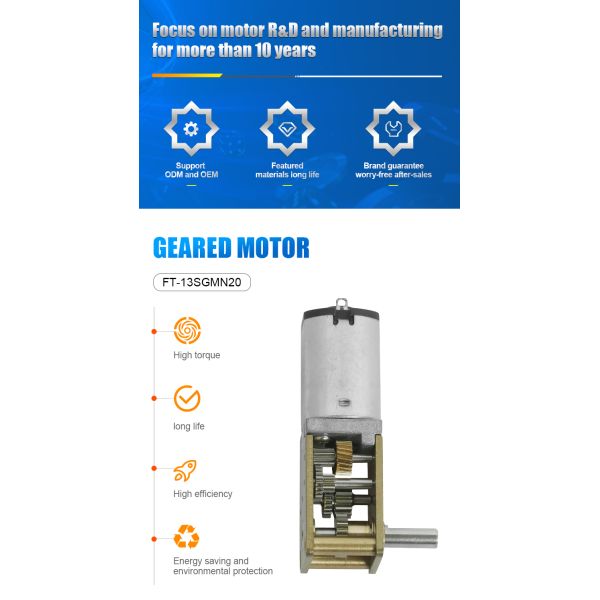

Geared motor model: FT-13SGMN20 Gear box size: 12mm Voltage: 1-24V Speed: 3rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc. .

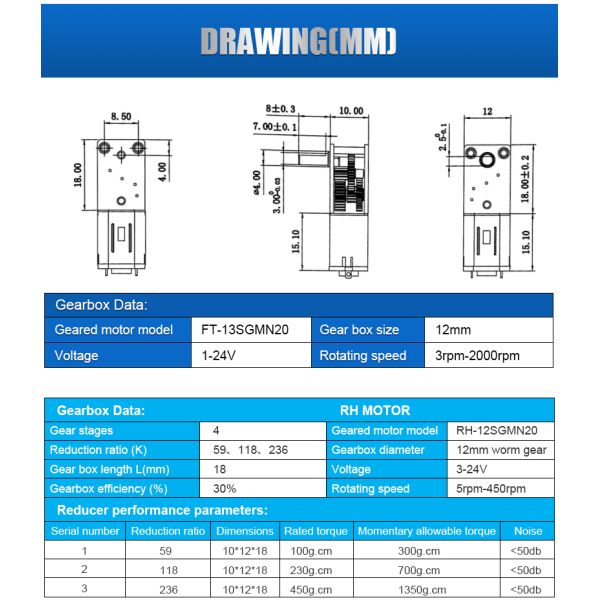

Gearbox Data

RH MOTOR

Gear stages
4
Geared motor model
RH-12SGMN20
Reduction ratio (K)
59,118,236
Gearbox diameter
12mm worm gear
Gear box length L(mm)
18
Voltage
3-24V
Gearbox efficiency (%)
30%
Rotating speed
5rpm- 450rpm
Reducer performance parameters:





Serial number
Reduction ratio
Dimensions
Rated torque
Momentary allowable torque
noise
1
59
10*12*18
100g.cm
300g.cm
<50db
2
118
10*12*18
230g.cm
700g.cm
<50db
3
236
10*12*18
450g.cm
1350g.cm
<50db
