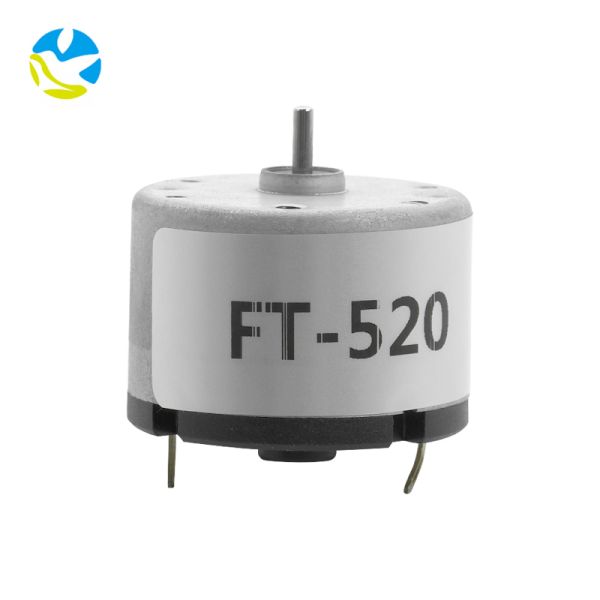

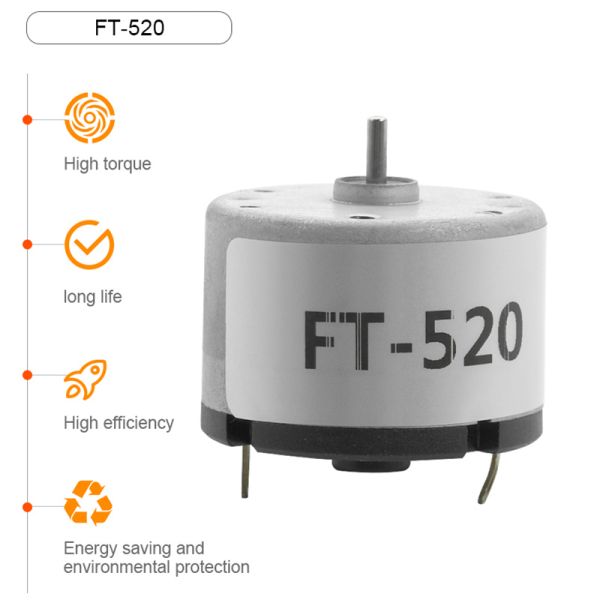

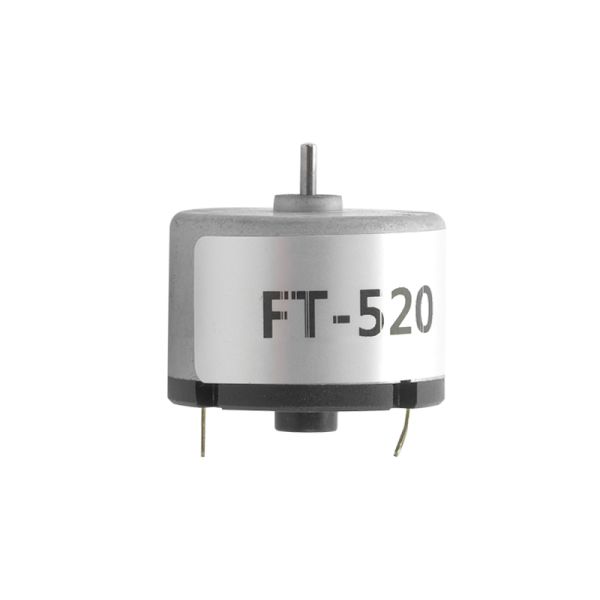

Custom 3-24V DC Motor 32.8mm 2500-10000 Rpm FT-520 Micro DC Motor for LCD Dispenser
Custom 3-24V DC Motor 32.8mm 2500-10000 Rpm FT-520 Micro DC Motor for LCD Dispenser
Custom 3-24V DC Motor 32.8mm 2500-10000 Rpm FT-520 Micro DC Motor for LCD Dispenser
Custom 3-24V DC Motor 32.8mm 2500-10000 Rpm FT-520 Micro DC Motor for LCD Dispenser
Custom 3-24V DC Motor 32.8mm 2500-10000 Rpm FT-520 Micro DC Motor for LCD Dispenser
Custom 3-24V DC Motor 32.8mm 2500-10000 Rpm FT-520 Micro DC Motor for LCD Dispenser
Custom 3-24V DC Motor 32.8mm 2500-10000 Rpm FT-520 Micro DC Motor for LCD Dispenser
Custom 3-24V DC Motor 32.8mm 2500-10000 Rpm FT-520 Micro DC Motor for LCD Dispenser
Specifications
Model Number :
FT-520
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Continuous Current(A) :
about 1150mA
Efficiency :
48%-81%
Commutation :
Brush
Construction :
Permanent Magnet
Rated Power :
1-48w
Rated voltage :
3-24v, 12V
Torque :
1-13 g.cm, 20/18(g.cm)
Type :
Micro Motor
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-520
Gear box size :
32.8mm
Speed :
2000rpm-15000rpm
Rotating speed :
3500/4000(rpm)
Current :
18/22(mA)
Output :
0.75/0.69(w)
Name :
DC Electric Motors
Description

VR
Custom 3-24V DC Motor 32.8mm 2500-10000 Rpm FT-520 Micro DC Motor for LCD Dispenser

FT MOTOR

Geared motor model: FT-520 Gearbox diameter: Ø32.8mm Voltage: 1-24V Speed: 2000rpm-15000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.
Motor Data









Motor Model

No Load

Load



Stall

Motor Model
Rated Voltage
Speed
Current
Speed
Current
Output
Torque
Current
Torque

V
(rpm)
(mA)
(rpm)
(mA)
(w)
(g·cm)
(mA)
(g·cm)
FT-520-11640
12
3500
18
2942
95
0.75
20
460
134
FT-520-12570
12
4000
22
3225
96
0.69
18
380
100
