220V 4mm Rod SWT-NS600F Extrusion Welding Gun Single Heating For Fish Tank
220V 4mm Rod SWT-NS600F Extrusion Welding Gun Single Heating For Fish Tank
Specifications
Brand Name :
MM-Tech
Model Number :
SWT-NS600F
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$1300-1500/set
Payment Terms :
T/T, Western Union
Supply Ability :
10 sets / day
Delivery Time :
5-8 days
Packaging Details :
Aluminium alloy Box
Product Name :
Extrusion Welder
Welding Rod Diameter :
3.0-4.0mm
Motor :
Feiji
Welding Thickness :
1-10mm
Welding Speed :
2.5kg/h
Warranty :
2 years
Power :
3400w
Color :
Green
Weight :
7.0KG
Description

220V 4mm Rod SWT-NS600F Extrusion Welding Gun Single Heating For Fish Tank

Extrusion Welder Description:

This extrusion welder uses a single-stage heating system, supports at least eight hours of work per day, and can weld PE, PP, PVC and other material.

Extrusion Welder Specifications:

Model
SWT-NS600E
SWT-NS600F
SWT-NS610E
Voltage:
220V/110V
Frequency:
50/60HZ
Exruding Motor Power:
800W
1200W
1300W
Hot Air Power
3400W
Air temperature:
20-620°c
Extruding volume
2.0kg/h
2.5kg/h
2.5kg/h
Welding Rod Diameter
3-4mm
Net Weight:
6.5kg
7.0kg
7.0kg
Driving Motor
HITACHI
FEIJI
METABO
Material thickness
1-10mm

Operation Procedure:

1) Put the hand extruder on the shelf, install the handle, plug in the mains plug.
2) Open the control box switch, welding temperature is generally set at 300°C, when the
temperature reach 270°C, the motor switches off, you can not start, when the temperature reaches
270°C, the motor switch is turned on, you can start properly. Open the hot air machine power
switch, thermostat knob, heated a few minutes to operate.
3) the right hand pull the motor switch, the motor starts to rotate. The new tool noise, probably it
mostly is relevant to the resonance between the tool and the base or the close of the parts inside
the tool.If the motor is very smooth, and the internal sound disappears after sending welding rods.
4) It is better to re-standby 5 to 6 minutes after ensuring the motor can be started.Then put welding
rod into machine to operate.Adjust the temperature carefully depending on the thermoplastic case.
5)motor’s rotating speed is fast without thermoplastic and will become heavier when sending
welding rod, if become very difficult, please stop, probably screw heating time is too short or low
temperature.
6) different welding methods require different welding nozzles, our company provides a standard
nozzle.

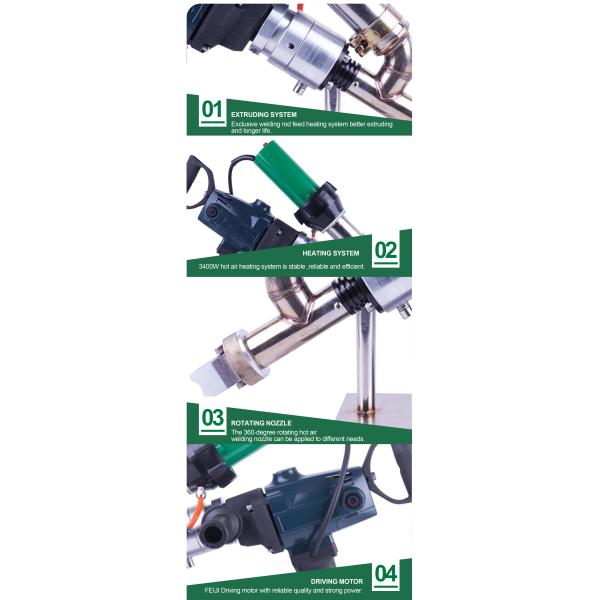

Decomposition of image:

220V 4mm Rod SWT-NS600F Extrusion Welding Gun Single Heating For Fish Tank

220V 4mm Rod SWT-NS600F Extrusion Welding Gun Single Heating For Fish Tank

Extrusion Welder Application:

220V 4mm Rod SWT-NS600F Extrusion Welding Gun Single Heating For Fish Tank

Accessories:

220V 4mm Rod SWT-NS600F Extrusion Welding Gun Single Heating For Fish Tank

Services:

We always provide high quality products and workable price for every clients and have won the confidence and approval.

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
