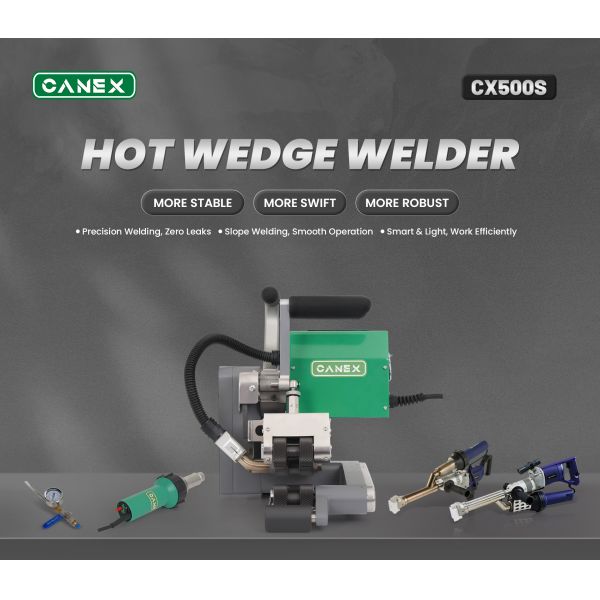

Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
Specifications
Brand Name :
MM-Tech
Model Number :
CX500S
Place of Origin :
China
MOQ :
1set
Price :
US$2,100/set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
20sets per day
Delivery Time :
5-8 work days
Packaging Details :
Aluminum box + carton
Input voltage :
220V, 50Hz
Power :
1800W
Welding speed :
0-6m/min
Heating temperature :
0-450℃
Welding material thickness :
0.8-3.0mm

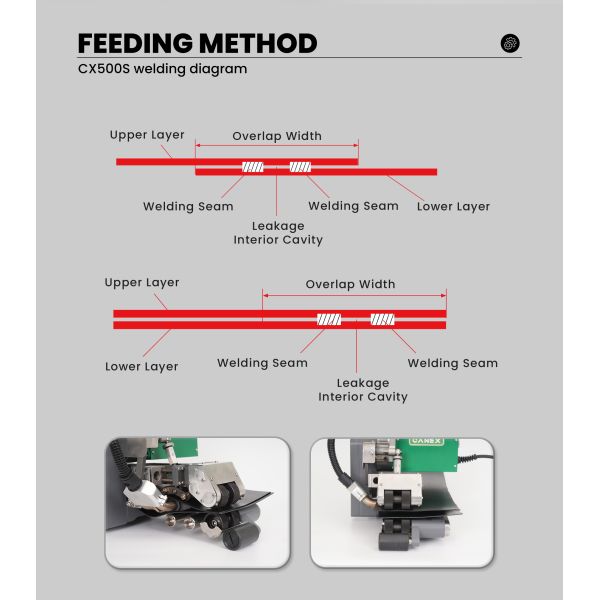

Welding seam width :
16mm×2, inner cavity 16mm
Welding seam strength :
≥85% of original material
Overlap width :
110mm
Description

Geomembrane Welder CX500S

Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder

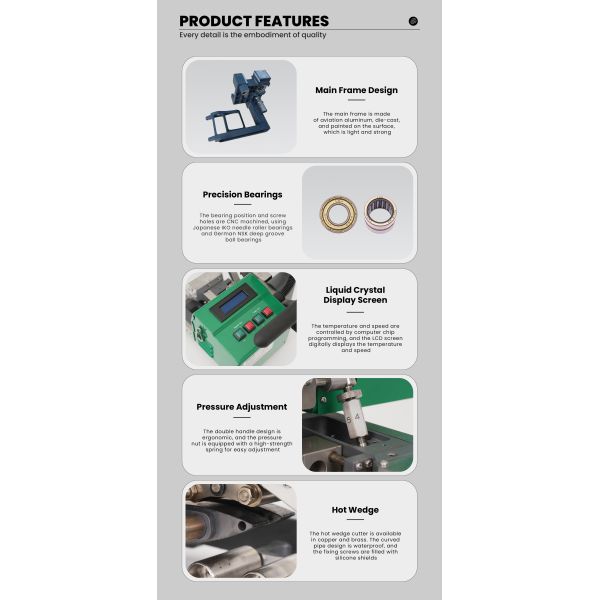

Product Features

  1. Main Frame Design
    The main frame is made of aviation aluminum, die-cast, and painted on the surface, which is light and strong.

  2. Precision Bearings
    The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.

  3. Liquid Crystal Display Screen
    The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.

  4. Pressure Adjustment
    The entire bearing of the machine is imported from Germany.

  5. Hot Wedge
    Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times that of brass. Copper has good viscosity and the fixing screws are not loose.

  6. Heating Cartridge
    The wading depth of the machine is 50mm (water less than or equal to 50mm will not burn the machine). The heating cartridge adopts a curved tube design.

Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder
