HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
HDPE Geomembrane Full Power Welding Machine CX600
Specifications
Brand Name :
MM-Tech
Model Number :
CX600
Place of Origin :
China
MOQ :
1set
Price :
US$2,100/set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
20 sets per day
Delivery Time :
5-8 work days
Packaging Details :
Aluminum box + carton
Input voltage :
220V, 50Hz
Power :
2100W
Welding speed :
0-8m/min
Heating temperature :
0-450℃

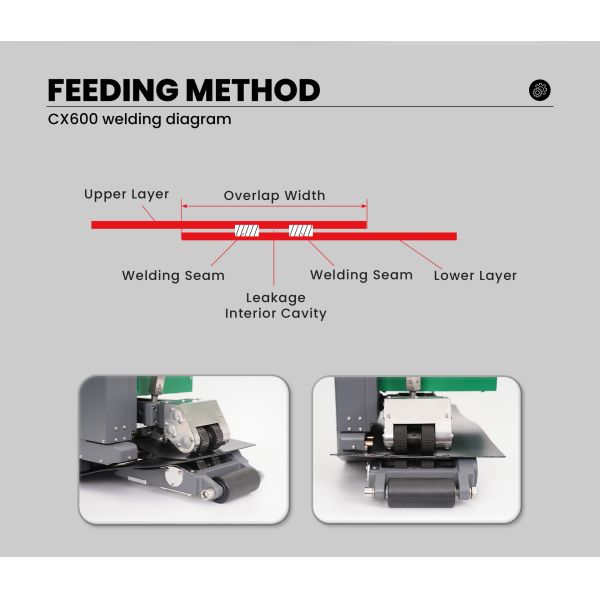

Welding material thickness :
0.8-4.0mm
Welding seam width :
16mm×2, inner cavity 16mm
Welding seam strength :
≥85% of original material
Overlap width :
120mm
Description

HDPE Geomembrane Full Power Welding Machine CX600

HDPE Geomembrane Full Power Welding Machine CX600 HDPE Geomembrane Full Power Welding Machine CX600 HDPE Geomembrane Full Power Welding Machine CX600

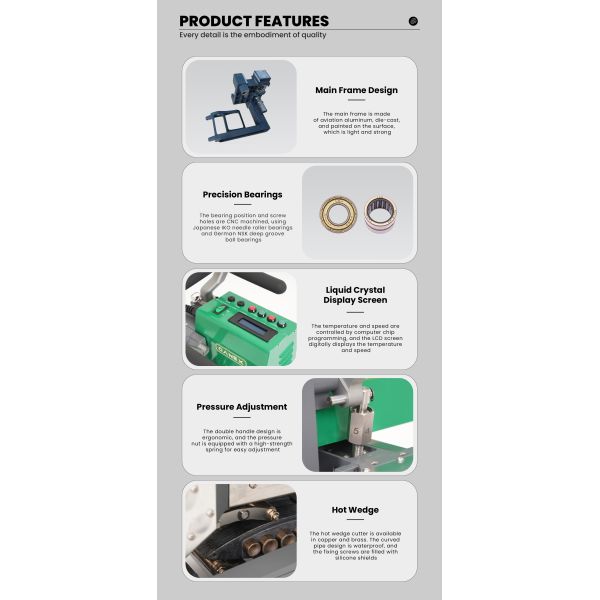

Product Feature

  1. Main Frame Design
    The main frame is made of aviation aluminum, die-cast, and painted on the surface, which is light and strong.

  2. Precision Bearings

    The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.

  3. Liquid Crystal Display Screen

    The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.

  4. Pressure Adjustment

    The double handle design is ergonomic, and the pressure nut is equipped with a high-strength spring for easy adjustment.

  5. Hot Wedge

    The hot wedge cutter is available in copper and brass. The curved pipe design is waterproof, and the fixing screws are filled with silicone shields.

HDPE Geomembrane Full Power Welding Machine CX600

Application


The Hot Wedge Machine CX600 is commonly used in multiple fields. In civil engineering, it is essential for constructing roads, railways, airports, etc., providing reliable welding to ensure the stability and waterproofing of pond liner.

For water conservancy projects, it helps in building canals, reservoirs and other hydraulic structures, preventing water leakage. In the environmental protection field, it is widely used in landfill sites to prevent pollutants from seeping into the soil and groundwater.

In mining, it offers an effective solution for welding geomembrane in mines and tailings ponds, ensuring safety.

Additionally, it serves well in agriculture for constructing irrigation systems and ponds. Its efficient and high - quality welding plays a significant role in the success of various projects.

HDPE Geomembrane Full Power Welding Machine CX600 HDPE Geomembrane Full Power Welding Machine CX600
