CX900 Pondline Hot Wedge Welding Machine with Temperature Control PID Copper Hot Wedge and German Imported Bearings
CX900 Pondline Hot Wedge Welding Machine with Temperature Control PID Copper Hot Wedge and German Imported Bearings
CX900 Pondline Hot Wedge Welding Machine with Temperature Control PID Copper Hot Wedge and German Imported Bearings
CX900 Pondline Hot Wedge Welding Machine with Temperature Control PID Copper Hot Wedge and German Imported Bearings
Specifications
Brand Name :
MM-Tech
Model Number :
CX900
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
US$1350-US$1400/set
Payment Terms :
T/T,Western Union
Supply Ability :
1000set a week
Delivery Time :
5-8 working day
Packaging Details :
aluminum box
Product name :
CX900 Hor Wedge Welder
Welding width :
15mm×2，interior cavity 16mm
Overlap width :
120mm
Voltage :
220v
Frequency :
50HZ
Power :
1800w
Welding speed :
0-6m/min
Welding material thickness :
0.8mm-3mm
Heating temeperature :
0-450℃
Net Weight :
11kg
Description

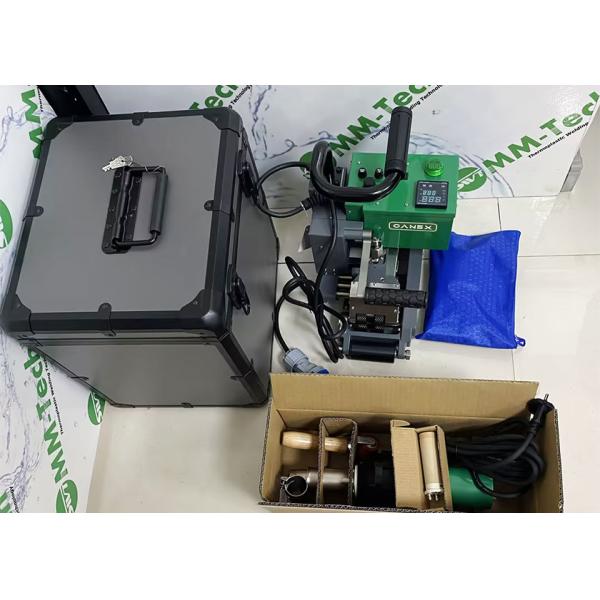

CX900 Pondline Hot Wedge Welding Machine
Temperature Control CX900 Geomembrane Welding Machine For Fishpond

CX series geomembrane welding machines feature copper or brass hot wedges to ensure efficient and accurate welding processes, meeting the requirements for membranes of different materials. The entire machine utilizes German-imported bearings for excellent stability and durability, extending equipment service life and ensuring long-term stable operation. Suitable for welding geomembranes with thicknesses of 0.3-4.0mm, these machines are easy to operate with excellent performance, making them ideal for geomembrane welding projects.

Hot air guns come with replaceable welding nozzles to adapt to different welding needs, and feature imported heating elements that ensure long-term stable operation at high temperatures.

Technical Specifications
Voltage 220V
Frequency 50HZ
Power 1800W
Welding Speed 0-6m/min
Heating Temperature 0-450℃
Welding Material Thickness 0.8mm-3mm
Welding Seam Strength ≥85% original material
Overlap Width 120mm
Net Weight 11kg
Certificate CE
Key Features
  • Computer chip programming controls temperature and speed with digital LCD display
  • Copper hot wedge provides 4x better thermal conductivity than brass with excellent viscosity and secure screw fixation
  • 50mm wading depth capability (water ≤50mm won't damage machine) with curved tube heating cartridge design
  • German-imported bearings throughout the machine
  • Advanced helical gear transmission technology in gearbox
  • Stainless steel armored shell temperature sensor resistant to acid and alkali corrosion
Product Advantages
Main Frame Design

The main frame is constructed from die-cast aviation aluminum with surface painting, providing lightweight yet strong construction.

Precision Bearings

Bearing positions and screw holes are CNC machined, utilizing Japanese IKO needle roller bearings and German NSK deep groove ball bearings.

Digital Display Screen

Computer chip programming controls temperature and speed with digital LCD display for precise monitoring.

Pressure Adjustment

Ergonomic double handle design with high-strength spring pressure nuts for easy adjustment.

Hot Wedge

Copper hot wedge provides 4x better thermal conductivity than brass with excellent viscosity and secure screw fixation.

Heating Cartridge

50mm wading depth capability with curved tube heating cartridge design for reliable operation in wet conditions.

CX900 Pondline Hot Wedge Welding Machine with Temperature Control PID Copper Hot Wedge and German Imported Bearings
Applications
  • Mining: Mine wastewater treatment, waste residue treatment, tailings leakage prevention
  • Environmental Engineering: Landfill sites, sewage treatment plants
  • Aquaculture: Aquaculture ponds, fish ponds, shrimp ponds, and similar applications
