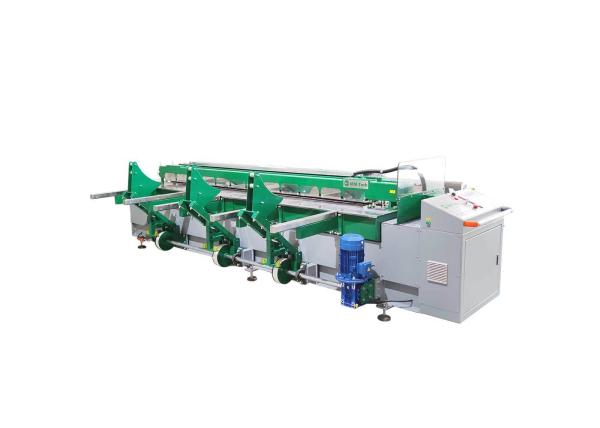

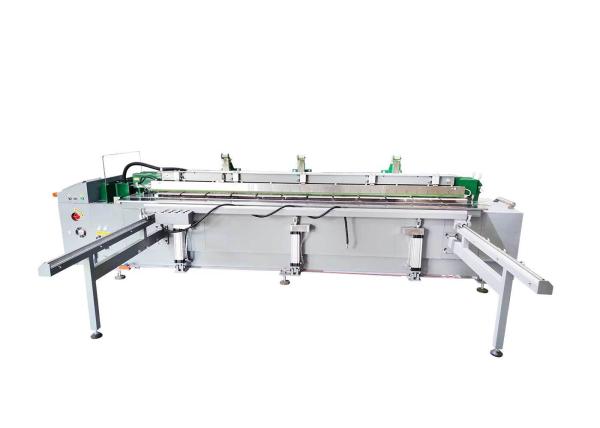

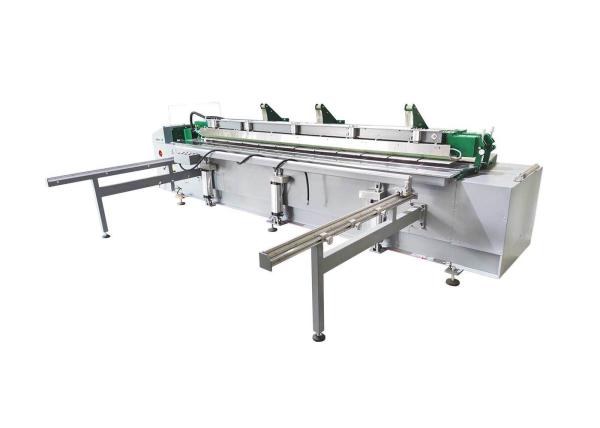

2In1 Plastic Sheet Bending Machine For PVDF Sheet Length Max 3000mm
2In1 Plastic Sheet Bending Machine For PVDF Sheet Length Max 3000mm
2In1 Plastic Sheet Bending Machine For PVDF Sheet Length Max 3000mm
2In1 Plastic Sheet Bending Machine For PVDF Sheet Length Max 3000mm
2In1 Plastic Sheet Bending Machine For PVDF Sheet Length Max 3000mm
2In1 Plastic Sheet Bending Machine For PVDF Sheet Length Max 3000mm
Specifications
Brand Name :
MM-TECH
Model Number :
SWT-PZ3000
Certification :
CE
Place of Origin :
HEBEI,CHINA
MOQ :
1
Price :
USD 20,000 - USD 24,000 / SET
Payment Terms :
Western Union, T/T, PayPal
Supply Ability :
600 SETS / MONTH
Delivery Time :
within 7 days
Packaging Details :
Plywood Case
Model :
SWT-PZ3000
Roll circle diameter min :
500
Rated current :
60A
Bending heating power :
9kW
Welding heating power :
6kW
N.W :
1400KG
G.W :
1500KG
Brand :
MM-TECH
Weldable sheet Thickness :
3 - 25mm
Max working length :
3000mm
Bending angle :
0 - 100°
Rated voltage :
380V, 50/60Hz
Air pressure(kg.f/cm²) :
6.0-8.0
Drum institutions motor power :
1.5kW
External dimensions :
3850*1100*1100mm
Packing dimensions :
3950*1230*1220mm
Description

2 in 1 Bending Machine Butt Fusion Welding Equipment for PVDF Sheet Length Max 3000mm

Sheet Bending Machine Advantages

  • 2 in 1 sheet bending and sheet butt fusion welding
  • Working length up to 3000mm
  • Weldable sheet thickness from 3mm to 25mm
  • Suitable for thermoplastic material such as PE PP PVC PVDF

Sheet Bending Machine Technical Specifications

Model SWT-PZ3000
Weldable sheet thickness 3 - 25mm
Max working length 3000mm
Bending angle 0 - 100°
Roll circle diameter min 500
Air pressure(kg.f/cm²) 6.0 - 8.0
Rated voltage 380V, 50/60Hz
Rated current 60A
Bending heating power 9kW
Welding heating power 6kW
Drum institutions motor power 1.5kW
External dimensions 3850*1100*1100mm
Packing dimensions 3950*1230*1220mm
N.W 1400KG
G.W 1500KG

Finished products by SWT-PZ3000

2In1 Plastic Sheet Bending Machine For PVDF Sheet Length Max 3000mm

Supreme Quality Guarantee

24 months. If any parts broken or doesn't work under normal operating, we are free to offer.
