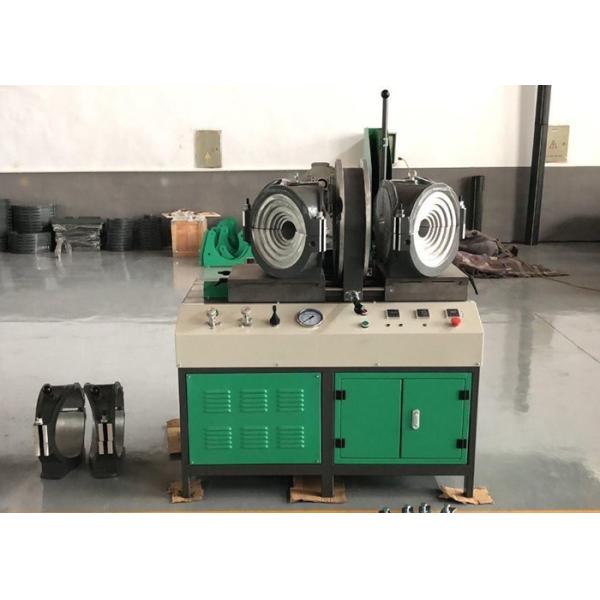

Automatic PE Fitting Oil Pipe Fabrication Welding Machine SWT-MA800/450
Automatic PE Fitting Oil Pipe Fabrication Welding Machine SWT-MA800/450
Automatic PE Fitting Oil Pipe Fabrication Welding Machine SWT-MA800/450
Automatic PE Fitting Oil Pipe Fabrication Welding Machine SWT-MA800/450
Automatic PE Fitting Oil Pipe Fabrication Welding Machine SWT-MA800/450
Automatic PE Fitting Oil Pipe Fabrication Welding Machine SWT-MA800/450
Specifications
Brand Name :
MM-Tech
Model Number :
SWT-MA800/450
Certification :
ISO,CE,
Place of Origin :
China
MOQ :
1set
Price :
$72580-$86280 per set
Payment Terms :
T/T, Western Union,
Supply Ability :
100 sets per week
Delivery Time :
5-8 work days
Packaging Details :
Plywood Case With Pallet
Product Name :
Fabrication Welding Machine
Pipe Sizes :
450,500,560,630,710,800
Working voltage :
380V ±10%,50/60Hz
Packing Cases :
4 Plywood Cases
Heating Plate Max. Temp :
270 Degree
Total Power :
47.23KW
Volume :
23.3CBM
Weight :
4900kg
Pressure adjustable ranges :
0~14MPa
Description

Automatic PE Fitting Oil Pipe Fabrication Welding Machine SWT-MA800/450

Fabrication Welding Machine Introduction:
Fabrication welding machine is suitable for fabricating HDPE workshop fitting welding welding used for butt fusion segmented bends,tee,cross, 45°and 60°branch tee.
And it soldering pe water/gas pipe system, and is primarily designed for welding in the field.

Workshop Fitting Fusion Machine Specification:

ModelSWT-MA630SWT-MA800
Pipe Sizes(mm)315,355,400,450,
500,560,630		450,500,560,630,
710,800
Application0~90°℃ Elbow, tee, cross,45°℃ and 60°℃ wyes (optional parts should be used)
Heating Plate Max.Temp270°℃270°℃
Temp. deviation in
surface(170~270°C)		士7℃士7℃
Pressure adjustable
ranges		0-14MPA0-14MPA
Working Voltage380V,50Hz380V,50Hz
Heating Plate Power22.25KW39.23KW
Hydraulic Unit Power4KW4KW
Planning Tool Power3KW4KW
Total Power29.25KW47.23KW
Weight3510Kg4900Kg
Packing Cases9 Plywood Cases11 Plywood
Cases
Packing Volume22.7CBM23.3CBM


Fabrication Welding Machine Worksops:

Automatic PE Fitting Oil Pipe Fabrication Welding Machine SWT-MA800/450

Fabrication Welding Machine Advantages:
* High accuracy temperature controller
** Difference in heating plate surface temperature ≤±5°
*** Environment temperature:-10° ～ 45°

* Electronic count-down timer for heating and cooling time;PLC control system.
** Removable PTFE coated heating plate.
*** Electric planing tool with safety limit switch.

* Low starting pressure and high reliable seal structure.
** Separate two-channel timer records time in soaking and cooling phases with alert.
*** High and accurate and shockproof pressure meter indicates clearer readings.

* Digital pressure meter is installed on machines.
** Reliable performance, easy control.
*** Optional parts: 45°, 60°Y Tee clamp.

Sofa Factory:

Automatic PE Fitting Oil Pipe Fabrication Welding Machine SWT-MA800/450



Service:

Standard:Approved by ISO9001, CE,SGS,ROSH,EMC standard
Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.


Fabrication Welding Machine Introduction:
