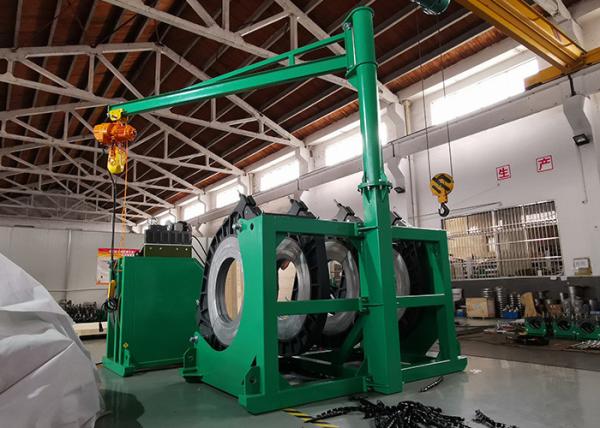

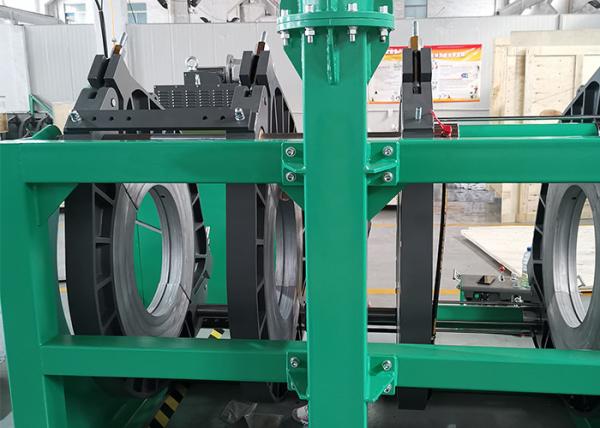

SWT-V1200/630H Automatic Field Hydraulic Butt Fusion Welder 2 Years Warranty
SWT-V1200/630H Automatic Field Hydraulic Butt Fusion Welder 2 Years Warranty
SWT-V1200/630H Automatic Field Hydraulic Butt Fusion Welder 2 Years Warranty
SWT-V1200/630H Automatic Field Hydraulic Butt Fusion Welder 2 Years Warranty
SWT-V1200/630H Automatic Field Hydraulic Butt Fusion Welder 2 Years Warranty
SWT-V1200/630H Automatic Field Hydraulic Butt Fusion Welder 2 Years Warranty
Specifications
Brand Name :
MM-Tech
Model Number :
SWT-V1200/630H
Certification :
CE
Place of Origin :
China
MOQ :
10 Sets
Price :
US$31000-US$35000
Payment Terms :
T/T, Western Union
Supply Ability :
100 Sets Per Month
Delivery Time :
5-8 work days
Packaging Details :
Plywood Case
Product Name :
Butt Fusion Welding Machine
Pipe Size :
630,710,800,900,1000,1100,1200
STD Conformity :
ISO12176-1 DVS2208-11
Volume :
19.54CBM
Total Cylinder Area :
50.7cm²
Total Power :
28.5KW
Voltage :
220V
Working Pressure Range Bar :
0-160
Optional Size :
No
Support Customized :
Yes
Description
SWT - V1200 / 630H 2 Years Warranty Automatic Field Hydraulic Butt Fusion Welder
Butt Fusion Welder Description:
Butt Fusion Welder joining of plastic pipes and fittings such as Polyethylene HDPE SWT-V1200/630H
polyethylene pipe butt fusion machine for WASTEWATER TREATMENT SWT-V1200/630H

Butt Fusion Welder Detailed:

Model SWT-V1200/630H
Pipe size (mm) 630,710,800,900,1000
Heating plate Max. temp. 270℃
Temp. deviation in surface(170-250) ≤±10℃
Max working pressure hydraulic station 0-16Mpa
Working voltage 220V
Working frequency 50-60HZ

Features:

FEATURES
1.Used to fusion joint PE/PP/PVDF pipes/fittings in a jobsite or workshop.
2.Four main clamps made of light weight alloy.
3.Removable heating plate with high quality non-stick PTFE coating
4.Low temperature difference in heating plate surface,within 5 degree
5.Imported oil seal & hydraulic couplers
6.A mechanical lock excludes the disengagement of the trimmer during the
operation

Job Site:

SWT-V1200/630H Automatic Field Hydraulic Butt Fusion Welder 2 Years Warranty

All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
