Plastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor For Surge Protection
Plastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor For Surge Protection
Plastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor For Surge Protection
Plastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor For Surge Protection
Plastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor For Surge Protection
Plastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor For Surge Protection
Specifications
Brand Name :
Tianrui
Model Number :
3225 4032
Certification :
ROHS/UL
Place of Origin :
China
MOQ :
5000pcs
Payment Terms :
100% TT,Paypal
Supply Ability :
5000pcs every day
Delivery Time :
10 days
Operating Temperature :
-40 to 125C
Maximum AC Volts :
750V
Varistor Voltage :
200V to 750V
Current Max :
1200A
Rated Power :
0.25W
Withstand Voltage :
≥2.5 KV
Description
Product
Plastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor for Surge Protection
Series
4032 3225
Structure
Zinc Oxide Varistor
Voltage
200V to 750V
Withstand Voltage
≥2.5 KVRMS
Operating Temperature
-40 ~ +125 ℃
Insulation Resistance
≥100 MΩ
Type
SMD
Approval
UL/ROHS

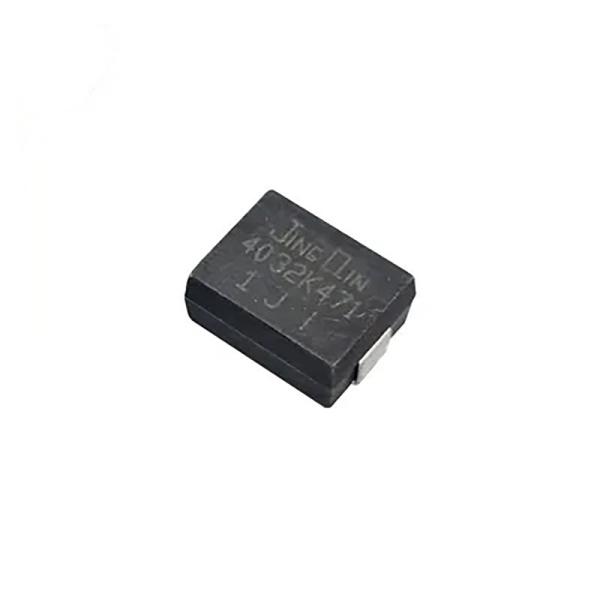

Photos of Plastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc

Metal Oxide Varistor for Surge Protection

Plastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor For Surge ProtectionPlastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor For Surge ProtectionPlastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor For Surge Protection

Size(mm) of 3225

Plastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor For Surge Protection

Size(mm) of 4032

Plastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor For Surge Protection

Features
3225 4032 series varistors (Plastic SMD Type) is an innovative products instead of the leads acording to customers’ demands such as big size SMD components. It is widely used in LED driving power supply, communication equipment, carrier module,security equipment etc. In which reflow welding process is adopted. 3225 SMD Varistor replace 07D plug in varistor and 4032 SMD Varistor replace 10D dip varistor.
1. RoHS compliant
2. Available for SMT flow/reflow soldering
3. Low profile and space saving
4. Large capability to withstand high surge current
5. Low inductance construction with excellent response
6. Encapsulation material according to UL94-V0
7. Operating temperature range: -40°C ~ +125°C
Storage temperature range: -40°C ~ +125°C
8. Agency recognition: UL

Application
1. Power supply
2. Home appliance
3. Industrial equipment
4. Telecommunication or telephone system

Related types of varistors
Plastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor For Surge Protection

FAQ

1Q:What can I do if I got a broken product from DONGGUAN TIANRUI?

A:First of all please tell us as soon as possible after we send a new one to you immediately but please send the broken product to us.You don't have to worry about the carriage charge we will pay for that.

2Q:Are we a trader or manufacturer?

A:Both

3Q:Why do you have choose us?

A:High quality. Competive price. Fast shipping.

4Q:What is approval?

A:ROHS/UL of Plastic Encapsulated 4032 3225 SMT Surface Mount SMD Chip Zinc Metal Oxide Varistor for Surge Protection
