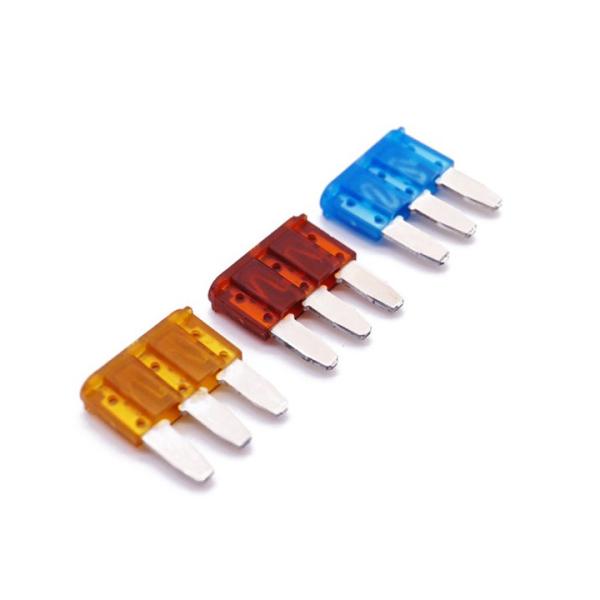

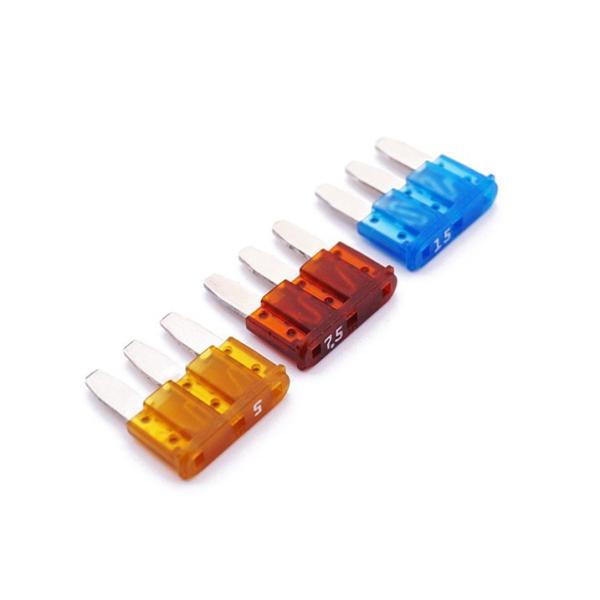

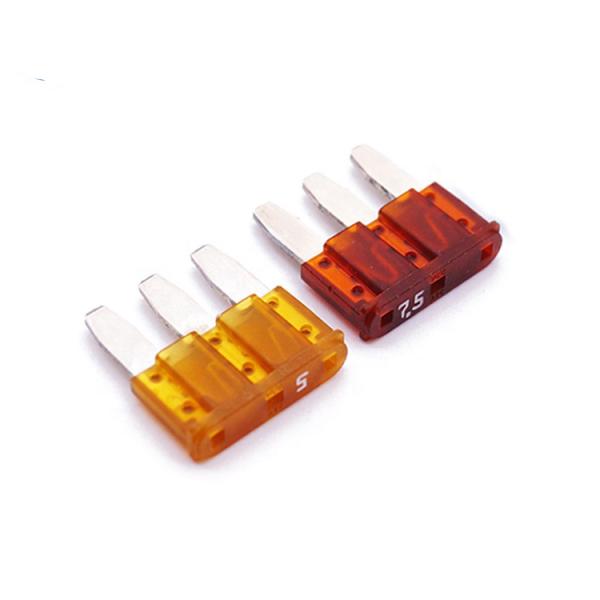

Littelfuse Micro3 Blade Fuse 3-15A 32V SAE ISO Compliant
Littelfuse Micro3 Blade Fuse 3-15A 32V SAE ISO Compliant
Littelfuse Micro3 Blade Fuse 3-15A 32V SAE ISO Compliant
Littelfuse Micro3 Blade Fuse 3-15A 32V SAE ISO Compliant
Littelfuse Micro3 Blade Fuse 3-15A 32V SAE ISO Compliant
Littelfuse Micro3 Blade Fuse 3-15A 32V SAE ISO Compliant
Specifications
Brand Name :
littelfuse
Model Number :
337
Certification :
UL,ROHS
Place of Origin :
China
MOQ :
1000
Payment Terms :
100% TT,Paypal
Supply Ability :
5000pcs every day
Delivery Time :
7 days
Voltage Rating :
32V
Material :
Copper And Plastic
Application :
Car,truck,SUV Etc
Current Rating :
3A to 15A
Product Name :
Blade fuse
Complies :
SAE 2741 And ISO 8820-3
Interrupting Ratings :
1000A @ 32 VDC
Description

Details of Littelfuse Automtive Auto Tripod Micro3 Blade Fuse 0337 337 Series 0337005 0337010.LXS 0337015.LXS

Product Name
Littelfuse Automtive Auto Tripod Micro3 Blade Fuse 0337 337 Series 0337005 0337010.LXS 0337015.LXS
Material
Silver plated zinc alloy,copper,PA66
Rated
5A to 15A,32V
Environmental Temperature
-40 to 125deg C
Complies with
SAE 2741 and ISO 8820-3

The MICRO3 Fuse has 3 terminals and 2 fuse elements with a common center terminal. Its sub-miniature design meets the need for more circuits to be protected while utilizing less space and its ability to cope with high temperatures in adverse environments makes the MICRO3 Fuse of recommended choice for protection.

Part Number Current Rating (A) Housing Material Color Test Cable
Size
(mm2)		 Typ. Voltage Drop
(mV)		 Typ. Cold
Resistance
(mΩ)		 Typ.I2t
(A2s)
0337003._ 3 0000 176 113 31.7 9
0337005._ 5 0000 141 116 17.4 17
033707.5_ 7.5 0000 137 106 10.8 47
0337010._ 10 0000 136 102 7.8 89
0337015._ 15 0000 128 94 4.9 189
0337900._ SHUNT 0000 - - - -

Dimension(mm)

Littelfuse Micro3 Blade Fuse 3-15A 32V SAE ISO Compliant

Time-Current Characteristics

% of Rating Opening Time Min / Max (s)
110 360,000 / ∞
135 0.75 / 120
160 0.3 / 50
200 0.15 / 5
350 0.04 / 0.5
600 0.02 / 0.1

Related types of blade auto fuses

Littelfuse Micro3 Blade Fuse 3-15A 32V SAE ISO Compliant

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time of 58Vdc Yacht Square Battery Fuse?

A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is approval ?

A: ROHS of Littelfuse Automtive Auto Tripod Micro3 Blade Fuse 0337 337 Series 0337005 0337010.LXS 0337015.LXS
