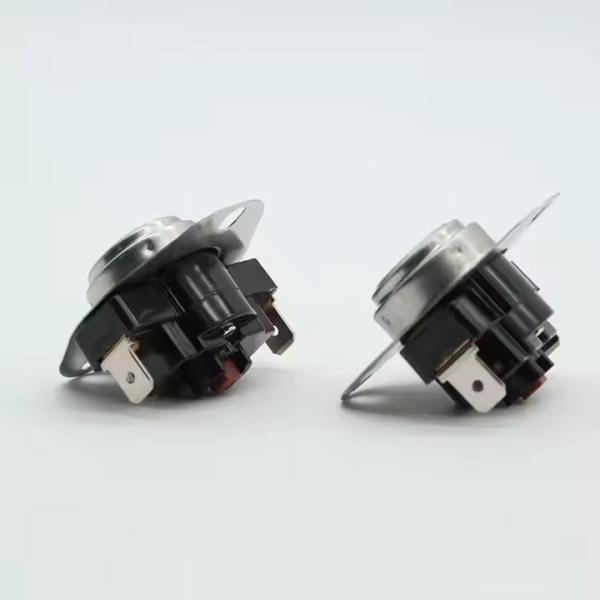

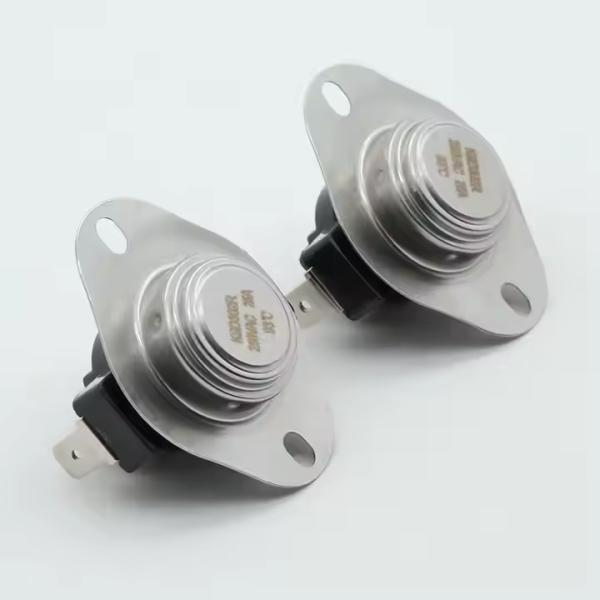

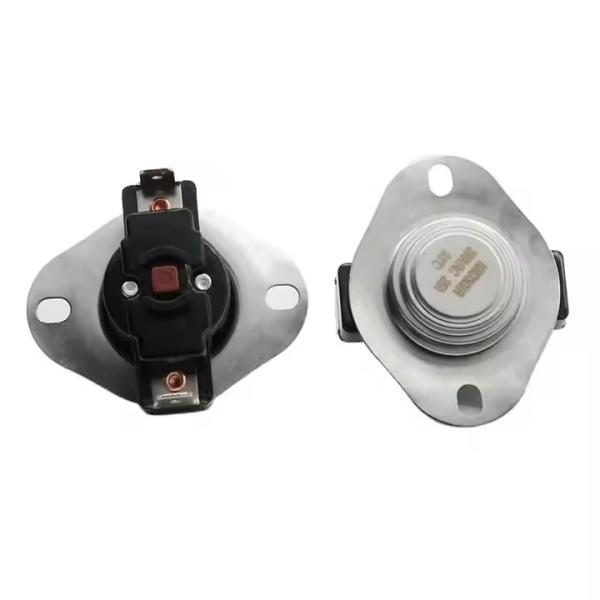

KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector
KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector
KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector
KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector
KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector
KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector
KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector
KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector
KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector
KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector
Specifications
Brand Name :
Tianrui
Model Number :
KSD302R
Certification :
ROHS
Place of Origin :
Guangdong,China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
15000pcs per month
Delivery Time :
Stock available
Packaging Details :
Carton
Ir :
45A
Ur :
250V
Rated temp. :
50-150℃
Insulation Resistance :
Under Normal≥100MΩ
Contact Resistance :
≤50M Ω
Description
Product Name
KSD302R 25A 45A High ampere current SPST Snap Action Trip Bimetal Thermostat thermal protector
Shell
Plastic
Ir and Ur
45A 250V
Rated temperature
50℃ to 150℃
Contact
Normally closed
Insulation Resistance
Under Normal≥100MΩ
Contact Resistance
≤50M Ω
Approval
ROHS

KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector

KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector

Size(mm)

KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector

Working Principle of KSD302R 25A 45A High ampere current SPST Snap Action Trip Bimetal Thermostat thermal protector

Bipolar jump thermostat is a bimetal thermostat with a shell. The use of disc-type bimetallic film in the role of the moment under
the principle of instantaneous beating, through the role of mechanical structure, so that the two groups of contacts quickly
action to achieve the same time to disconnect or turn on the purpose of bipolar circuit.
Instruction of KSD302R 25A 45A High ampere current SPST Snap Action Trip Bimetal Thermostat thermal protector
1. Grounding: The metal cover of the temperature controller is connected to the ground metal parts of the device.
2. The thermostat should work in the general indoor environment where the relative humidity of the air is not greater than 90%,
non -corrosive gas, flammable gas and electric conductive dust exist.
3. When the thermostat uses contact with the temperature, the cover should be covered with the heating part of the charged
appliance, and the thermal conductivity of the heating silicon grease or other performance should be applied on the cover of the
temperature.
4. The top of the cover cannot be crushed or deformed to avoid changing the temperature or other performance.
5. Do not let the liquid penetrate inside the thermostat! The shell must avoid excessive power to prevent cracks; the shell should
be kept clean to prevent pollution of conductive substances, so as to avoid short -circuit penetration due to the reduction of
insulation performance.
6. The use process cannot bend the wiring terminal, otherwise it will affect the reliability of electrical connection.

Related types of Bimetal Thermostat Thermal Protector

FAQ:
Q1. What is your terms of packing?

A: Generally, we pack our goods in PE bag and brown carton.

Q2. What is your terms of payment?

A: T/T 50% deposit, and 50% balance before delivery.

Q3. What is your trade terms?

A: EXW, FOB, CIF, DDU, DDP, etc.

Q4. What is your approval?

A: ROHS/UL of KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector
