PEC SBFW-L Midi ANS Slow blow fuse 58Vdc M6
PEC SBFW-L Midi ANS Slow blow fuse 58Vdc M6
PEC SBFW-L Midi ANS Slow blow fuse 58Vdc M6
PEC SBFW-L Midi ANS Slow blow fuse 58Vdc M6
Specifications
Brand Name :
PEC pacific
Model Number :
SBFW-L
Certification :
ROHS
Place of Origin :
Japan
MOQ :
1000
Price :
Negotiable
Payment Terms :
100% TT,Paypal
Supply Ability :
5000pcs every day
Delivery Time :
7 days
Current Rating :
30A to 200A
Voltage Rating :
58vDC
Size :
Midi/ANS
Brand :
PEC pacific
Material :
Copper And Plastic
Mounting :
M6
Description

Product Description:

Item name Specification
Porduct PEC SBFW-L Midi ANS Slow blow fuse 58Vdc M6
Material PC,copper
Voltage 58Vdc
Current 30A to 200A
Breaking capacity 1000A
Environmental temperature -40℃ to100℃
Standard ISO8820-5
Package 500pcs/bag

Dimension(mm):

PEC SBFW-L Midi ANS Slow blow fuse 58Vdc M6

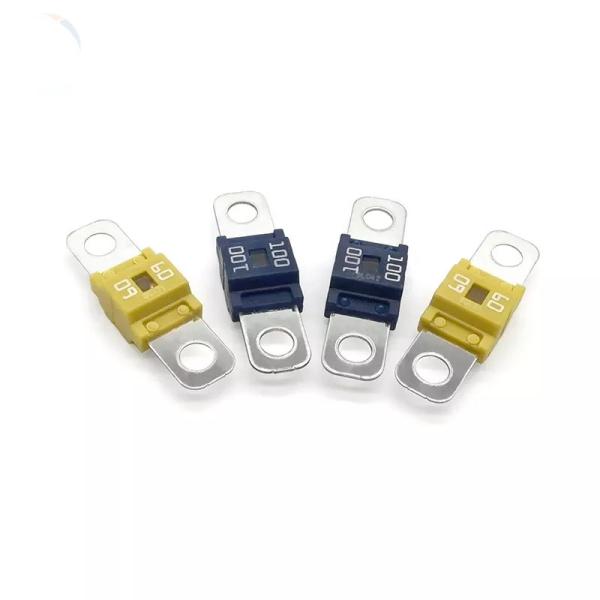

Product photos:

PEC SBFW-L Midi ANS Slow blow fuse 58Vdc M6PEC SBFW-L Midi ANS Slow blow fuse 58Vdc M6PEC SBFW-L Midi ANS Slow blow fuse 58Vdc M6

Time-Current Characteristic Curves:

PEC SBFW-L Midi ANS Slow blow fuse 58Vdc M6
30A to 125A Time-Current Characteristic
% of Ampere Rating(A) Operating Time (Min / Max)
100% More than100hrs / -
110% More than 4hrs / -
150% 90 s / 3600 s
200% 3 s / 100 s
300% 0.3 s / 3 s
500% 0.1 s / 1 s

150A to 200A Time-Current Characteristic
% of Ampere Rating(A) Operating Time (Min / Max)
75% More than100hrs / -
200% 1 s / 15 s
350% 0.5 s / 5 s
600% 0.1 s / 1s

Related types of Mid/Mega/ANL fuse:

PEC SBFW-L Midi ANS Slow blow fuse 58Vdc M6

Company:

DongGuan TianRui Electronics Co., Ltd. is specialized in developing, manufacturing and marketing PEC SBFW-L Midi ANS Slow blow fuse 58Vdc M6 and fuse holders with different performance, types and specifications since year 2000. Our products are widely used for the household electric appliances and auto industry.
