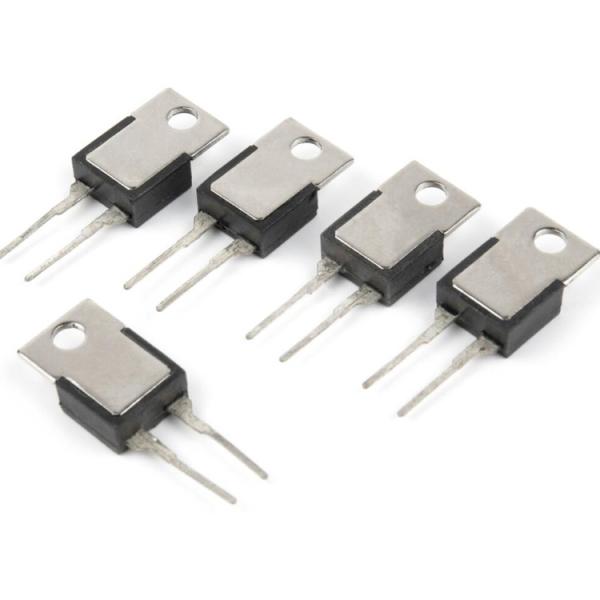

PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
Specifications
Model Number :
KSD-01F
Certification :
CQC
Place of Origin :
China
MOQ :
1000
Price :
USD $0.5~$0.8 per piece
Payment Terms :
T/T
Supply Ability :
50K pieces per month
Delivery Time :
15 days
Packaging Details :
100pcs per bag
Item Name :
thermal switch, bimetal thermostat, thermal protector
Part No. :
ksd-01F
Voltage Rating :
220V AC
Current Rating :
1.5A
Action temp :
15~125 Celsius Degree
Reset Type :
automatic
Terminal Type :
PCB
Closing type :
normally closed, normally open
Life :
10000 cycles
RoHS Compliant :
Yes
Halogen free :
Yes
MPQ :
100pcs
MOQ :
1000pcs
Description

KSD01F PCB Mount Thermal Switch Temperature Controller KSD-01F Bimetal Thermostat Protectors With Pins

KSD-01F Description

Bi-metal Snap-Action temperature controller switch. Flexible and reliable.
Suitable for thermal overload protection at the minimum space on printed circuit boards, computers, medical equipment, electrical appliance and other elec.tronic products.
1.Using condition
1) Relative humidity: up to 95% under ambient temperature of +20 degrees celsius
2) Atmospheric pressure:86-106 k pa
3) Work position: random
2.Technical parameters
1) Contact form:1D or 1H (D:normally closed; H:normally open)
2) Contact load: 220AVC 1.5A or 24VDC 1.5A
3) Insuilation resistance:250mΩ
4) Contact resistance:100mΩ
5) Electric strength:≥500VAC
6) Weight:2g

KSD-01F temperature table

Action temperature Reset temperature
15±3℃ ≥5℃
20±3℃ ≥10℃
30±3℃ ≥20℃
35±3.5℃ ≥25℃
40±4℃ ≥30℃
45±4.5℃ ≥33℃
50±5℃ ≥35℃
55±5℃ 42±10℃
60±5℃ 45±6℃
65±5℃ 48±10℃
70±5℃ 50±12℃
75±5℃ 53±14℃
80±5℃ 55±10℃
85±5℃ 60±15℃
90±5℃ 65±15℃
95±5℃ 70±15℃
100±5℃ 70±15℃
105±5℃ 75±15℃
110±5℃ 75±15℃
115±5℃ 80±15℃
120±5℃ 85±15℃
125±5℃ 95±15℃

KSD-01F Features

Power : 220VAC 1.5A /24VDC 1.5A; Contact: N.C(Normally Closed), N.O(Normally Open)
Technical parameters: system touch temperature controller.Sensitive and reliable.
Suitable for circuit board for temperature control or thermal overload protection.
Stable performance, high precision, small size, light weight, high reliability, long life

PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins

PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins

KSD-01F Drawing

PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins

Standard Package

100pcs per bag

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Test Equipment

  • PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
  • Company warehouse
  • PCB Mount Temperature Thermal Control Switch Bimetal PCB 2g With Pins
A thermal switch (sometimes thermal reset or thermal cutout (TCO)) is a device which normally opens at a high temperature (often with a faint "plink" sound) and re-closes when the temperature drops. The thermal switch may be a bimetallic strip, often encased in a tubular glass bulb to protect it from dust or short circuit. Another common design uses a bimetallic shallow dome-shaped cap which "clicks" to an inside-out inverted cap shape when heated, such as the "Klixon" brand of thermal cutouts.
Unlike a thermal fuse, a thermal switch is usually reusable and is therefore suited to protecting against temporary situations which are common and user-correctable. Thermal switches are used in power supplies in case of overload, and also as thermostats, and overheat protection in some heating and cooling systems. They are found in virtually every refrigerator, microwave, clothes dryer, space heater, and many more appliances found throughout the home.
FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance, T/T.

250Vac
