5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance
Specifications
Model Number :
PTF-78 FH1
Certification :
UL VDE
Place of Origin :
China
MOQ :
1000
Price :
USD $0.1~$0.15 per piece
Payment Terms :
T/T
Supply Ability :
10K pieces per week
Delivery Time :
10 work days
Packaging Details :
Inner Box, Outer Carton
Item Name :
Fuse Holder , Fuse Block
P/N :
PTF-78
Mounting Type :
PCB
Ur :
250V
Ir :
6.3A
Body Length :
24.4mm
Pin Distance :
22.6mm
Suitable for :
5x20 fuses
RoHS Compliant :
Yes
Body :
PA66, UL 94V-0
Terminal :
tin plated brass
Max Temperature :
260°C
Power :
1.6W
Description

UL VDE 5x20 PCB Fuse Holder 22.6mm Pin Distance Fuse Block UL94V-0 250V 6.3A

Product Description

Item Name PCB Mount Fuse Holder
Part No. PTF-78
Electrical Rating 6.3A 250V
Body Color green
Body Material PA66 94V-0
Terminal material tinned brass
Length 24.4mm
Wdth 9.4mm
Height 10.5mm
Pin Distance 22.6mm
Pin Length

3.5mm
Pin Thickness 0.5mm

Electrical Characteristics:
Rated Current:6.3A
Rated Voltage: 250Vac
Power: 1.6W
Contact Resistance: <5mΩ
lnsulation Resistance: >100mΩ
Dielectric Strength: >1000Vac/60sec.
Operation temperature: -10C~120C
Solder dwell time: <10s (Wave Soldering)

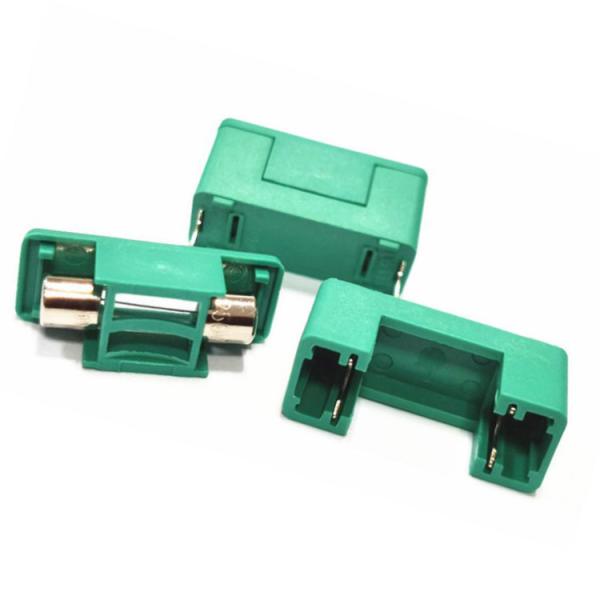

This pcb mount fuse holders is compatible with 5x20mm glass and ceramic fuses for overcurrent protection in electronics equipment, appliances, and lighting circuits. They are used with glass fuses for protecting low-current circuits or ceramic fuses for protecting high-current circuits. They are easy to install on the printed circuit boards.
