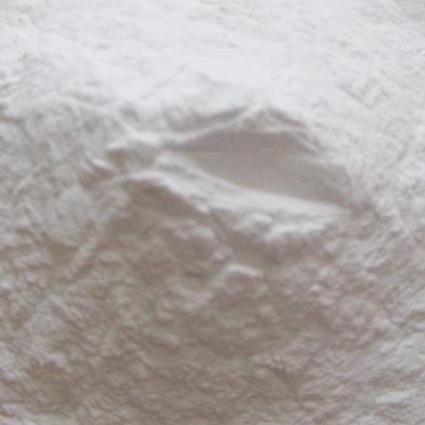

GB Al2O3 P240 White Aluminum Oxide For Precision Treatments
GB Al2O3 P240 White Aluminum Oxide For Precision Treatments
Specifications
Brand Name :
KMN
Model Number :
P240-P2500
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
5 Metric Tons
Price :
Negotiation
Supply Ability :
Plenty
Delivery Time :
Depending on quantity
Packaging Details :
1 ton Jumble bag;25kg*40 bags in one Jumble bag
Material :
Al2O3
Color :
White
Other Names :
White Fused Alumina,WA,White Corundum
Specification :
P240,P280,P320,P400,P500;P600;P800;P1000;P1200;P1500;P2000,P2500
Particle size Standard :
GB,ISO,JIS,ANSI,FEPA
Payment Terms :
T/T,L/C
Description
Physical and Chemical Properties
Item Value Item Value
Main Material Al2O3 Color White( Blue after calcining)
True Gravity(g /cm3) ≧3.90 Melting point(℃) 2250
Bulk Density(g /cm3) 1.5-2 Max using Temperature(℃) 1900
Mosh Hardness 10 Linear Expansivity(0-1600℃) 7-9
Knoop Hardness(kg/mm²) 2000-2200 Crystal Structure Trigonal System
Size Available(FEPA) F280-F2500

Powder Abrasive particle size control table: (Unit: um.)

China

GB9258-88

Japan

JIS(91)

USA

ANSI (97)

Germany

DIN (85)

Europe

FEPA(84)

International

ISO (96)

d 50

Median Size

d 50

Median Size

d 50

Median Size

d 50

Median Size

d 50

Median Size
W63 63-50 240 60.4±4.0 　 　 　 　 　 　 P240 58.2±2
W50 50-40 280 52.0±3.0 240 53.5-50 os53 53±3 F230/53 53±3 P280 52.2±2
W40 40-28 320 46.0±2.5 　 　 os45 44.5±2 F240/45 44.5±2 P320 46.2±1.5
W28 28-20 360 40.0±2.0 280 44-40.5 　 　 　 　 P360 40.5±1.5
W20 20-14 400 34.0±2.0 320 36-32.5 os37 36.5±1.5 F280/37 36.5±1.5 P400 35.0±1.5
W14 10-14 500 28.0±2.0 360 28.8-25.8 os29 29.2±1.5 F320/29 29.2±1.5 P500 30.2±1.5
W10 10-7 600 24.0±1.5 400 23.6-20.6 　 　 　 　 P600 25.8±1
W7 7-5 700 21.0±1.3 　 　 os23 22.8±1.5 F360/23 22.8±1.5 P800 21.8±1
W5 5-3.5 800 18.0±1.0 500 19.7-16.7 os17 17.3±1 F400/17 17.3±1 P1000 18.3±1
W3.5 3.5-2.5 1000 15.5±1.0 600 16-13 　 　 　 　 P1200 15.3±1
W2.5 2.5-1.5 1200 13.0±1.0 　 　 os13 12.8±1 F500/13 12.8±1 P1500 12.6±1
W1.5 1.5-1.0 1500 10.5±1.0 800 12.3-9.8 　 　 　 　 P2000 10.3±0.8
W1.0 1.0-0.5 2000 8.5±0.7 1000 9.3-6.8 os9 9.3±1 F600/9 9.3±1 P2500 8.4±0.5
W0.5 0.5 and finer 2500 7.0±0.7 　 　 os7 6.5±1 F800/7 6.5±1 　 　
　 　 3000 5.7±0.5 1200 6.5-4.5 os5 4.5±0.8 F1000/5 4.5±0.8 　 　
　 　 　 　 　 　 os3 3±0.5 F1200/3 3±0.5 　 　

White Fused Aluminium Oxide Micro Grits is a finer grade White Fused Alumina Powder with main content

Aluminium Oxide(Al2O3) made sieved by water pressure. It's a single crystal, self-sharpening, abrasion resistant

abrasives for precision grinding, polishing, cutting etc. White Fused Alumina finer grades are further graded into

FEPA sizes F280-F2500 for precision abrasives, cutting, blasting or polishing. It's also used for precision abrasive

tools for special equipment.

Applications of White Fused Aluminium Oxide Micro Grits

  • Grinding and Polishing on Precision Component, Semi-conductor Parts

  • Cutting and Etching on Metal and Non-metal Parts

  • Sand Blasting of Tooth Mold, Silicon Crystal, Semi-conductor Screen

  • Frosted Effect on Glass or Acrylic Surface

  • Precision Ceramics, Precision Casting/Foundry Sand

  • Fillings into Cosmetic Products

  • Aluminium Oxide Coating
