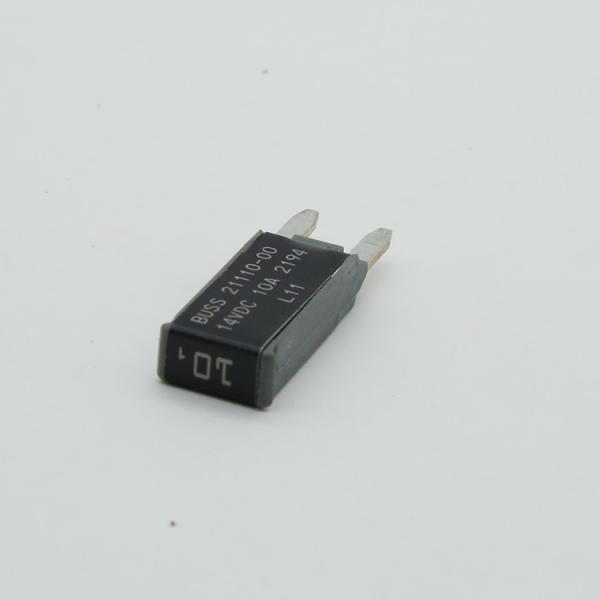

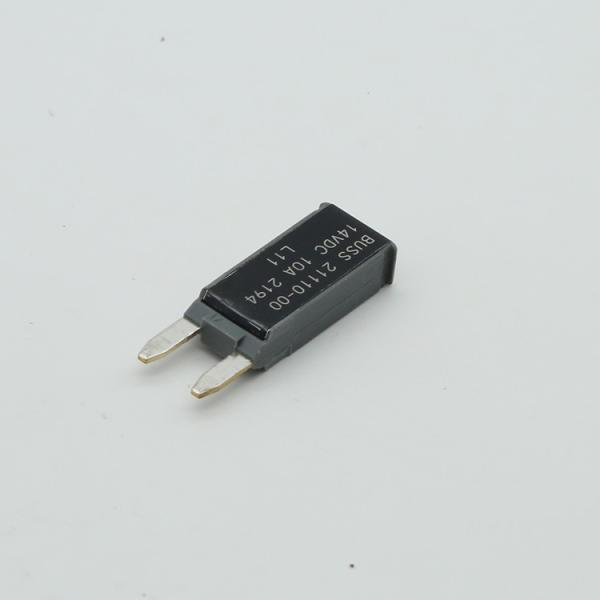

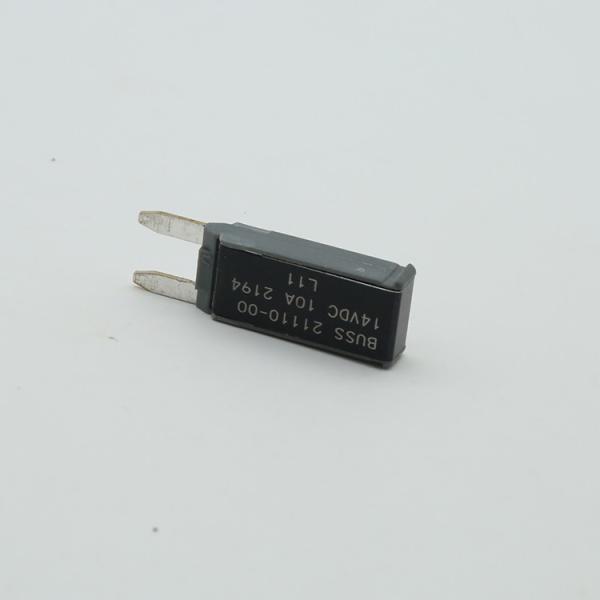

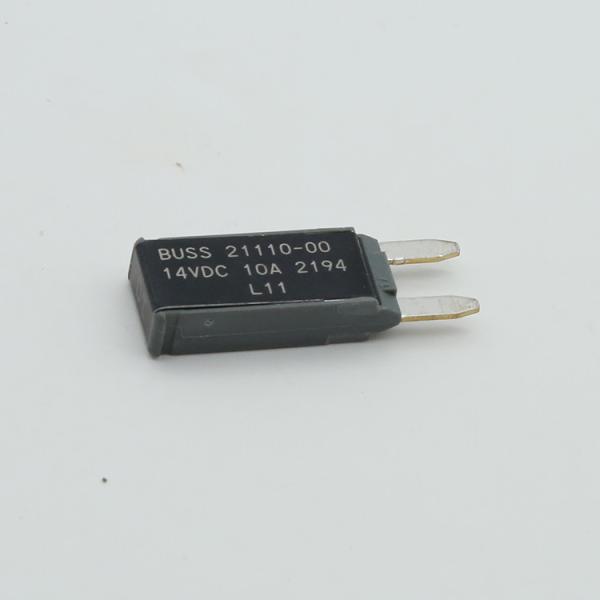

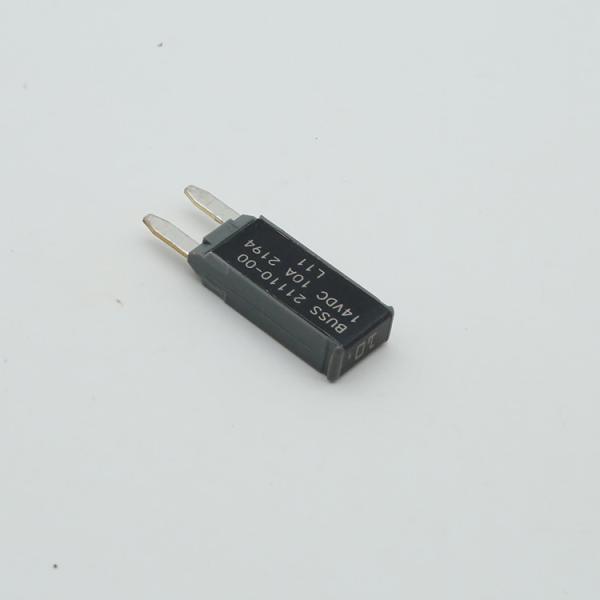

Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Specifications
Brand Name :
Tian Rui
Model Number :
210 Series
Certification :
ROHS
Place of Origin :
China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Western Union
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
100PCS/Bag
Rated Current :
10A-25A
Rated Voltage :
14V DC
Reset Type :
Modified Reset,
Type :
Thermal Circuit Breaker
Standard :
SAEJ553; SAEJ1171
Operating Temperature :
-40C to 85C
Pole :
Single Pole
Interrupt Rating :
150A -450A@ 14 Vdc
Application :
Car, Automotive
Packing :
Bulk, plastic bag
Description

Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A

Typically used in auxiliary and accessory circuits in truck, bus', RVs and marine systems . Others include battery chargers and DC audio systems. engine compartment and bilge area applications. Modified reset is available.

Specification

• Single pole thermal type circuit breakers.


• Rating:10-25A , 14 Vdc.


• Interrupt Rating: 150A -450A@ 14 Vdc.


• Operating Temperature Rating: -40 "C to 85 "C.


• Storage Temperature Rating: -40"C to 125 °C .


• Materials: UL-Rated 94VO thermoplastic body.Tin-plated copper alloy terminals.


• Marking: Standard marking includes amp/volt ratings. part number and date code.


• Termination: Compatible with 280 Type fuse blocks using 8.1mm centerline.


• Compliances: : Complies with SAE standard J553 Type I and Type II Circuit Breakers.

Electrical Characteristics

Over-load Percentage 100% No trip with 60 minutes
Over-load Percentage 160% Trip within 20 minutes
Over-load Percentage 200% Trip within 60 sec

Drawing (inch/mm)

Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A

Part Number System

Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A

Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
Bussmann 210 Series Automotive Modified Reset Thermal Mini Circuit Breaker 10A 15A 20A 25A
