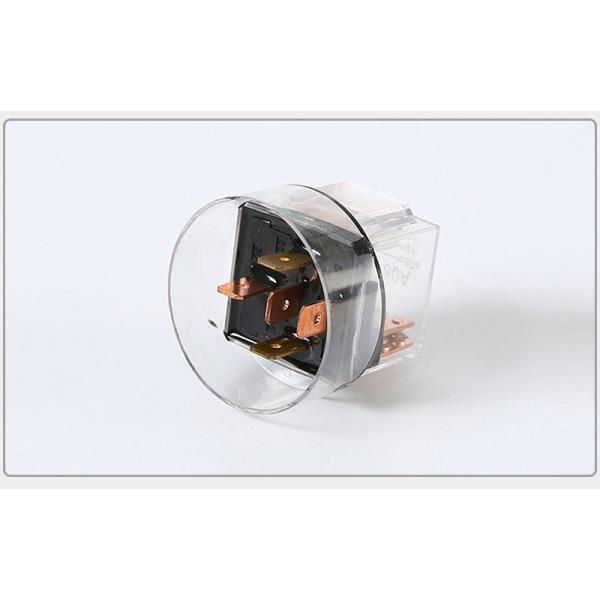

Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay
Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay
Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay
Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay
Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay
Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay
Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay
Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay
Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay
Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay
Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay
Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay
Specifications
Brand Name :
TIAN RUI
Model Number :
TR9108
Certification :
ROHS
Place of Origin :
China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
Supply Ability :
1000000PCS per Month
Delivery Time :
5-7 work days
Packaging Details :
PE bag, Bulk
Product Name :
Dual Contact Relay
Rated Current :
40A
Rated Voltage :
12V 24V
Contact Form :
1Z/1H
Operating Temperature :
-40 to +85℃
Power :
2.4W 4.8W
Insulation Resistance :
100MΩ min (at 500VDC)
Dielectric Strength :
50Hz 500V
Lifespan :
100000 Times
Application :
Automotive
Description

Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay

Product name: 40A double contact transparent housing relay
Model: TR9108
Contact material: AgSnO2
Contact form: 1Z/1H
Contact load: 40A/12VDC

Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay

Round Transparent Cover 40A 80A 12V 14V 24V 5PIN SPDT Automotive Dual Contact Relay

Contact Data
Contact Form 1Z/1H
Contact Material AgSnO2
Contact Ratings NO/NC : 40A/30A 14VDC
Max Switching Voltage 30VDC
Max Switching Current 40A
Max Switching Power 560W
Contact Resistance 100MΩ
Electrical Life 1x105
Mechanical Life 1x107

General Data
Insulation Resistance 100MΩ Min.(500VDC)
Dielectric Strength Between coil and contacts AC 500V, 50/60Hz 1Min
Between open contacts AC 500V, 50/60Hz 1Min
Operate Time Max 10ms
Release Time Max 5ms
Temperature Range -40℃ to +85℃
Shock Resistance Functional 98m/s2
Destructive 980m/s2
Vibration Resistance 10- 50Hz Double amplitude 1.5mm
Weight 41g
Lead Type Quick Connect

Coil Data 23℃
Nominal Voltage (VDC) Rated Current(mA)±10% (Ω) Coil Resistance ±10%(Ω) Operate Voltage(Max.) Release Voltage(Min.) Max.Permissible Voltage Coil Power
12 150 80 70% of rated voltage 10% of rated voltage 150% of Rated voltage 1.8
24 75.00 320
