Composite PTC Thermistor Varistor 30-50 OHM 115C 390V SPMZ11-10E300-500R/14D391
Composite PTC Thermistor Varistor 30-50 OHM 115C 390V SPMZ11-10E300-500R/14D391
Composite PTC Thermistor Varistor 30-50 OHM 115C 390V SPMZ11-10E300-500R/14D391
Composite PTC Thermistor Varistor 30-50 OHM 115C 390V SPMZ11-10E300-500R/14D391
Composite PTC Thermistor Varistor 30-50 OHM 115C 390V SPMZ11-10E300-500R/14D391
Composite PTC Thermistor Varistor 30-50 OHM 115C 390V SPMZ11-10E300-500R/14D391
Specifications
Brand Name :
TIAN RUI
Model Number :
SPMZ11-10E300-500R/14D391
Certification :
ROHS
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
Supply Ability :
1000000PCS per Month
Delivery Time :
5-7 work days
Packaging Details :
PE bag, Bulk
Part Name :
Composite PTC Thermistor
Curie Temperature :
115±7℃
R25 :
30-50Ω±2%
Varistor Voltage :
390 ±10% VDC
Non-action Current :
70mA
Max Operating Voltage :
275VAC
Color :
Green

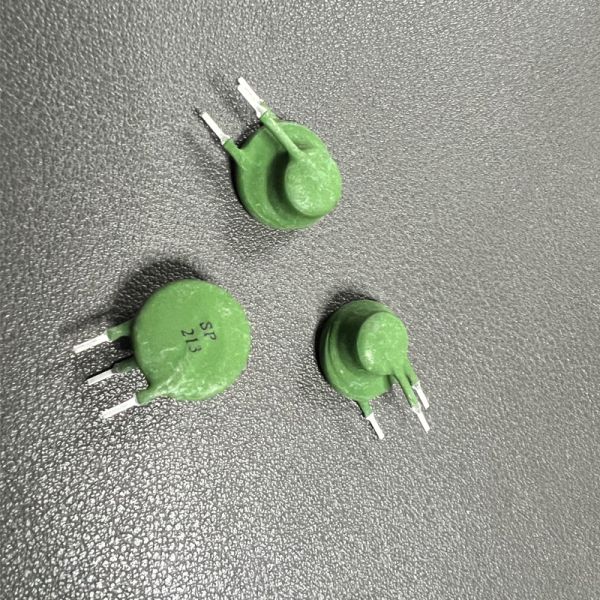

Marking :
SP 213
Coating :
Silicone Resin
Package :
PE bag, 250pcs/bag
Description

Composite PTC Thermistor Varistor 30-50 OHM 115C 390V SPMZ11-10E300-500R/14D391

Description

The SPMZ11-10E300-500R/14D391 is a multifunctional circuit protection component that integrates a Positive Temperature Coefficient (PTC) thermistor with a Varistor (Metal Oxide Varistor, MOV) into a single composite package. With a resistance range of 30-50 Ω and a threshold temperature of 115°C, this device is designed to provide both overtemperature and overvoltage protection. It features a high voltage rating of 390V, making it suitable for use in compact electronic assemblies where space efficiency and reliable safety protection are critical.

Product Name Composite PTC Thermistor
Curie Temperature 115±7℃
R25 30-50Ω±2%
Varistor Voltage 390 ±10% VDC
Non-action Current 70mA
Max Operating Voltage 275VAC
Color Green
Marking SP 213
Coating Silicone Resin
Package PE bag, 250pcs/bag
Composite PTC Thermistor Varistor 30-50 OHM 115C 390V SPMZ11-10E300-500R/14D391

Features

•Composite Design: Combines PTC thermistor and varistor functions in one package for streamlined assembly and reduced component count.

•Resistance Range: Offers a cold resistance between 30Ω and 50Ω for precise circuit operation.

•High Cut-off Temperature: Features a nominal cutoff (curie) temperature of 115°C, ensuring reliable overtemperature protection.

•Superior Voltage Handling: Rated for 390V to effectively suppress voltage surges and transients.

•Compact Form Factor: Packaged in the SPMZ11 series form factor (comparable to 14D391), suitable for space-constrained applications.

Composite PTC Thermistor Varistor 30-50 OHM 115C 390V SPMZ11-10E300-500R/14D391

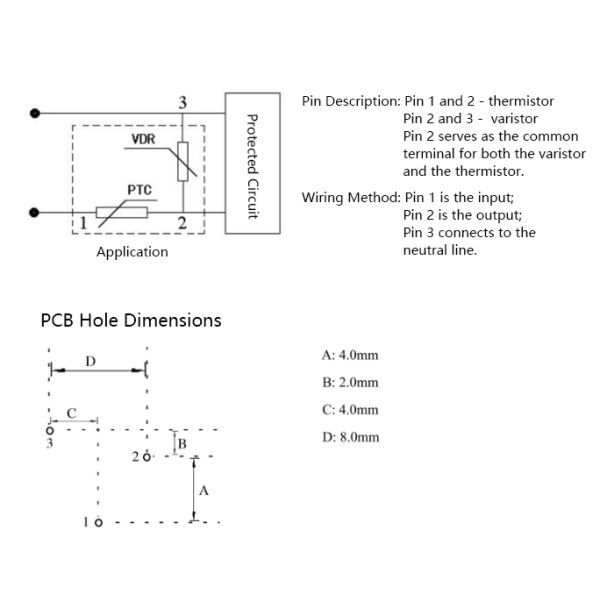

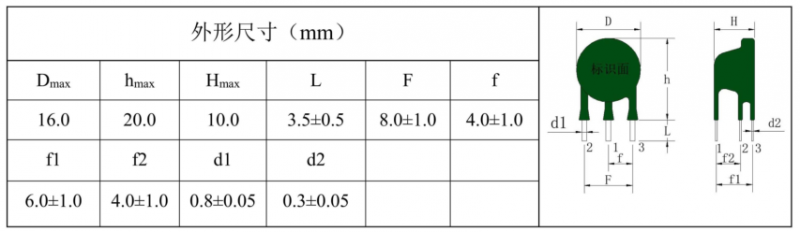

Dimensional Drawing

Composite PTC Thermistor Varistor 30-50 OHM 115C 390V SPMZ11-10E300-500R/14D391

Application

Power Supplies: Protection against overcurrent and overvoltage in switching power supplies and adapters.

Input Filter Circuits: Safeguarding sensitive electronics from thermal runaway and surge events.

Home Appliances: Used in motor protection circuits and control boards for products such as air conditioners and refrigerators.

Industrial Electronics: Providing reliable circuit protection in automation equipment and instrumentation where both voltage spikes and temperature fluctuations are concerns.

Composite PTC Thermistor Varistor 30-50 OHM 115C 390V SPMZ11-10E300-500R/14D391

Composite PTC Thermistor Varistor 30-50 OHM 115C 390V SPMZ11-10E300-500R/14D391
