Specifications
Supply Ability :
1000000PCS per Month
Breaking Capacity :
50A @ 250V AC
Storage Conditions :
+10℃ to +60℃
MOQ :
5000pcs
Standard :
UL248-14 IEC60127-3
Rated Current :
100mA~10A
Place of Origin :
China
Size :
2x7mm
Leads :
Axial Lead
Operating Temperature :
-55℃ to +125℃
Model Number :
212 Series
Payment Terms :
T/T, Paypal, Mastercard, Wetern Union, Alipay, etc

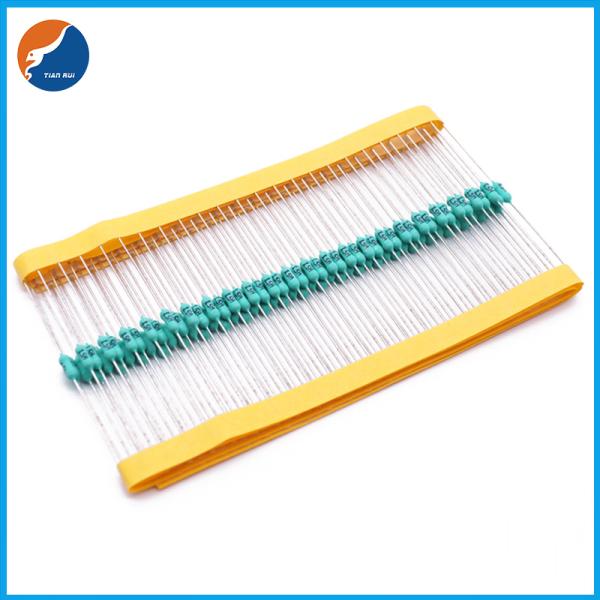

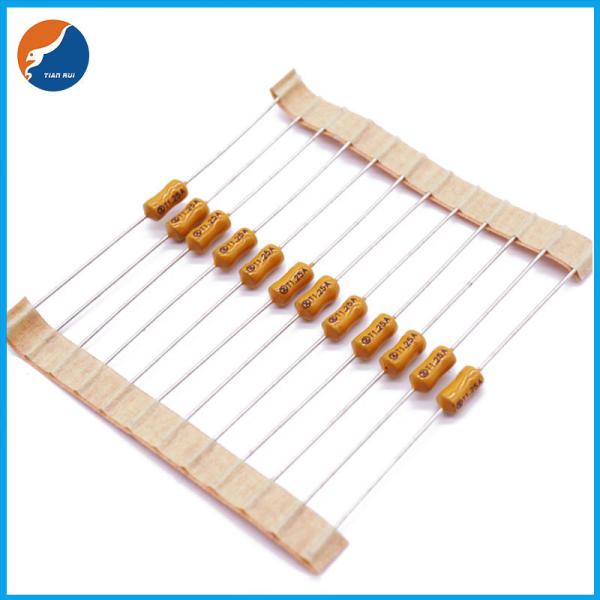

Packaging Details :
Tape/Reel
Rated Voltage :
125V 250V AC
Product Name :
Resistor Micro Pico Fuse
Type :
Time-Lag(T)
Brand Name :
Tianrui
Price :
Negotiable
Certification :
cULus、cURus、TUV、CQC、PSE、KC
Delivery Time :
5-7 work days
Description

Micro Pico Fuse 250V 100mA 125mA 160mA 200mA 250mA 300mA 315mA 350mA 400mA 500mA 630mA 750mA 800mA

Series:2mm Fuses

Keyword:No.212/2×7mm time-lag micro pico fuse

Time - current features:Time-Lag (T)
Breaking Capacity: 535A@150/250VAC,50A@150/250VAC
Standard:UL248-14
Approvals: cULus,cURus,TUV,CQC,PSE,KC

Materials:shell-ceramic tube, metal cap-nickel-plated brass, lead cap-nickel-plated cap, tin-plated copper wire
Operating Temperature:-55℃ to +150℃
Soldering Parameters:260℃.≤10 sec (Wave Soldering),350℃.≤2 sec (Hand Soldering)
Soldering Peak:260℃. 10 sec.,280℃. 5 sec.
Storage Conditions:+10℃ to +60℃
Relative humidity:≤75% yearly average Without dew, maximum 30 days at 95%

Application of Slow Blow Acting Pico Micro Fuse

Mainly used in emergency lights, battery protection, LED drive power, adapters, LCD displays, low-power medical equipment

Time vs Current Characteristics: UL248-14

Rated Current

100%

200%

300%

800%

100mA~10A

>4h

1s~60s

0.2s~3s

10ms~100ms

Electrial Characteristics at 25℃
Amp Code Rated Current Rated Voltage Nominal Melting I²T (A²sec) Typical Cold Resistance (mΩ) Breaking Capacity Approvals
cULus cURus TUV CCC PSE KC

0200

200mA

125VAC
250VAC

0.08

862

50A @ 125V AC
50A @ 250V AC

●

○

○

○

○

○

0250

250mA

0.08

650

●

○

●

○

○

○

0315

315mA

0.24

330

●

○

●

○

○

○

0375

375mA

0.32

390

●

○

○

○

○

○

0400

400mA

0.41

237

●

○

●

○

○

○

0500

500mA

0.44

242

●

○

●

●

○

○

0630

630mA

1.07

167

●

○

●

○

○

○

0750

750mA

1.06

124

●

○

○

○

○

○

0800

800mA

0.95

113

●

○

●

○

○

○

1100

1.00A

3.59

84.2

●

○

●

●

●

●

1125

1.25A

3.54

63.4

●

○

●

●

●

●

1160

1.60A

4.58

41.3

●

○

●

●

●

●

1200

2.00A

6.65

32.6

●

○

●

●

●

●

1250

2.50A

8.63

25.6

●

○

●

●

●

●

1315

3.15A

15.4

21.5

35A @ 125V AC
35A @ 250V AC

○

●

●

○

○

○

1400

4.00A

30.5

17.4

○

●

●

○

○

○

1500

5.00A

50.9

11.2

○

●

○

○

○

○

1630

6.30A

91.0

9.9

○

●

○

○

○

○

1800

8.00A

117

7.3

○

○

○

○

○

○

2100

10.0A

147

4.8

○

○

○

○

○

○

Note: (1) Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F)

(2) The cURus and cULus certification by 125V and 250V; the others certification only by 250V.

(3) The current values used for calculating I2T should be within the standard range of 8ms ~ 10ms.
