12V 250V ATV UTV Start Winch Control Relay Solenoid 9000 LB
12V 250V ATV UTV Start Winch Control Relay Solenoid 9000 LB
12V 250V ATV UTV Start Winch Control Relay Solenoid 9000 LB
12V 250V ATV UTV Start Winch Control Relay Solenoid 9000 LB
12V 250V ATV UTV Start Winch Control Relay Solenoid 9000 LB
12V 250V ATV UTV Start Winch Control Relay Solenoid 9000 LB
12V 250V ATV UTV Start Winch Control Relay Solenoid 9000 LB
12V 250V ATV UTV Start Winch Control Relay Solenoid 9000 LB
12V 250V ATV UTV Start Winch Control Relay Solenoid 9000 LB
12V 250V ATV UTV Start Winch Control Relay Solenoid 9000 LB
12V 250V ATV UTV Start Winch Control Relay Solenoid 9000 LB
12V 250V ATV UTV Start Winch Control Relay Solenoid 9000 LB
Specifications
Model Number :
4300
Contact Material :
Alloy
MOQ :
1000PCS
Delivery Time :
5-7 work days
Application :
Automotive
Payment Terms :
T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
Current :
250A
Contact Resistance :
50MΩ
Brand Name :
TIAN RUI
Max. Switching Power :
3000W
Packaging Details :
PE bag, Bulk
Contact Form :
2C(DPDT)
Place of Origin :
China
Mechanical Life :
100000 Cycle
Price :
Negotiable
Rated Voltage :
12V
Supply Ability :
1000000PCS per Month
Product Name :
Electric Winch Relay
Electrical Life :
1000 Cycle
Certification :
ROHS
Description

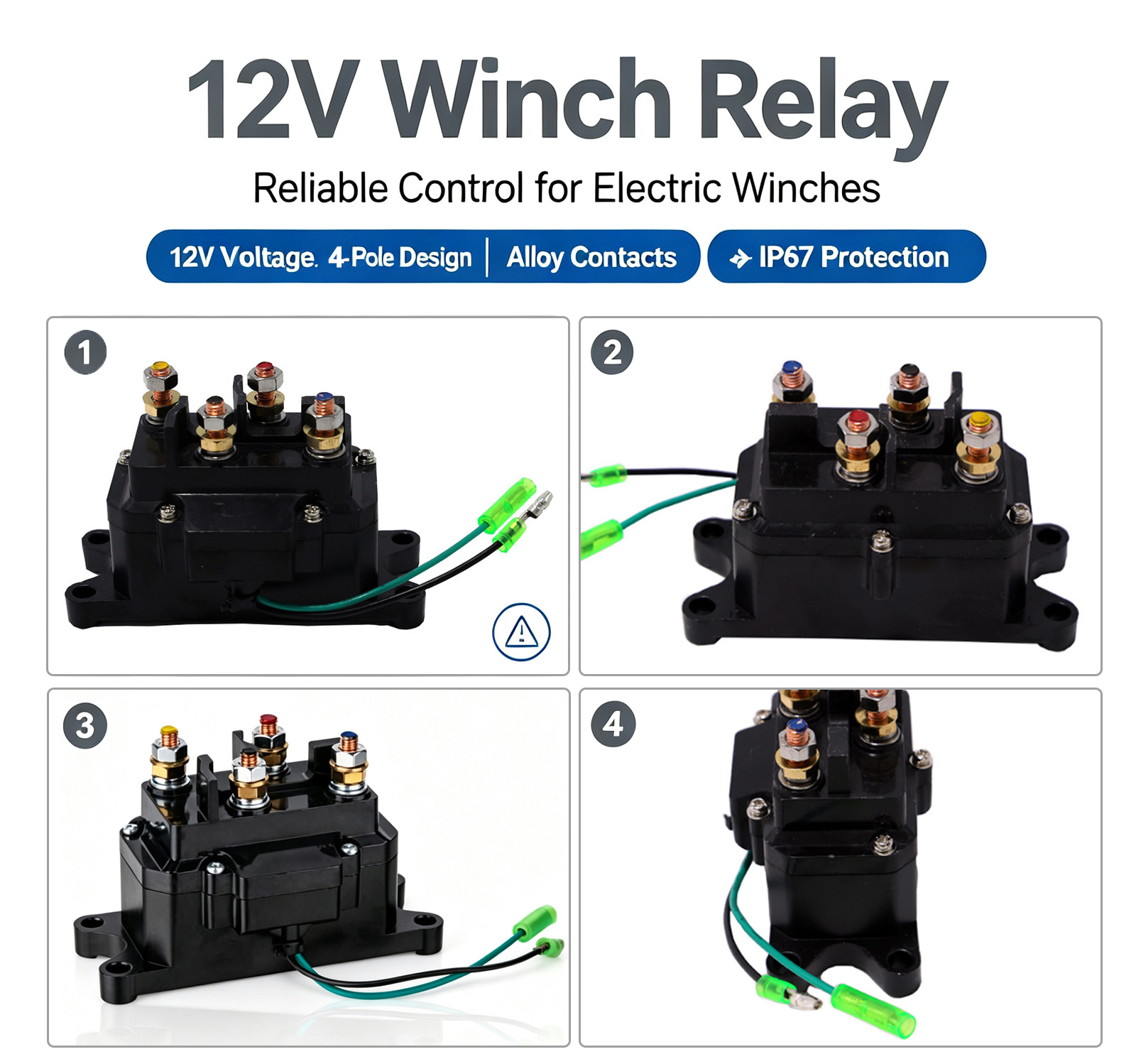

12V 250V ATV UTV Start Winch Control Relay Solenoid 9000 LB

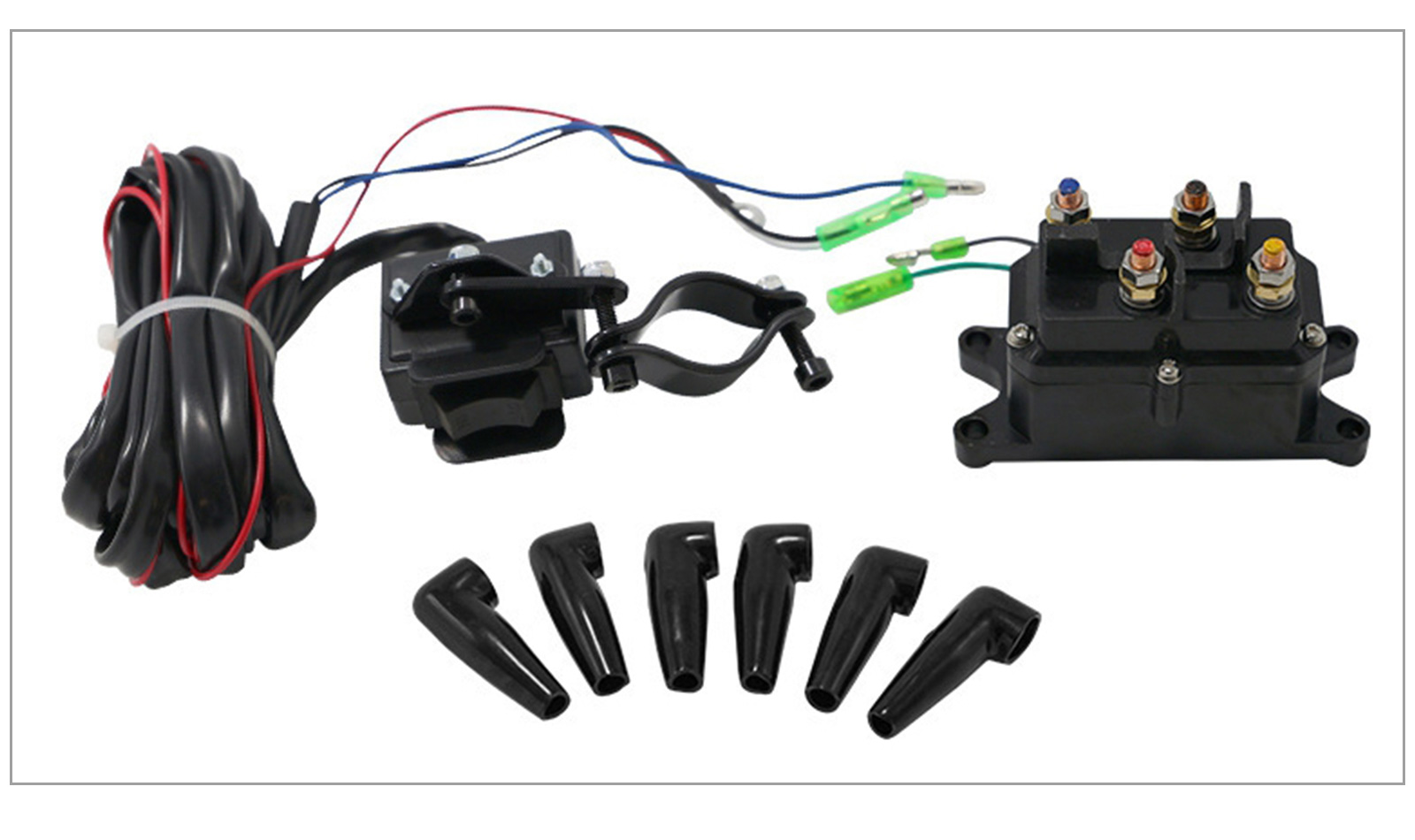

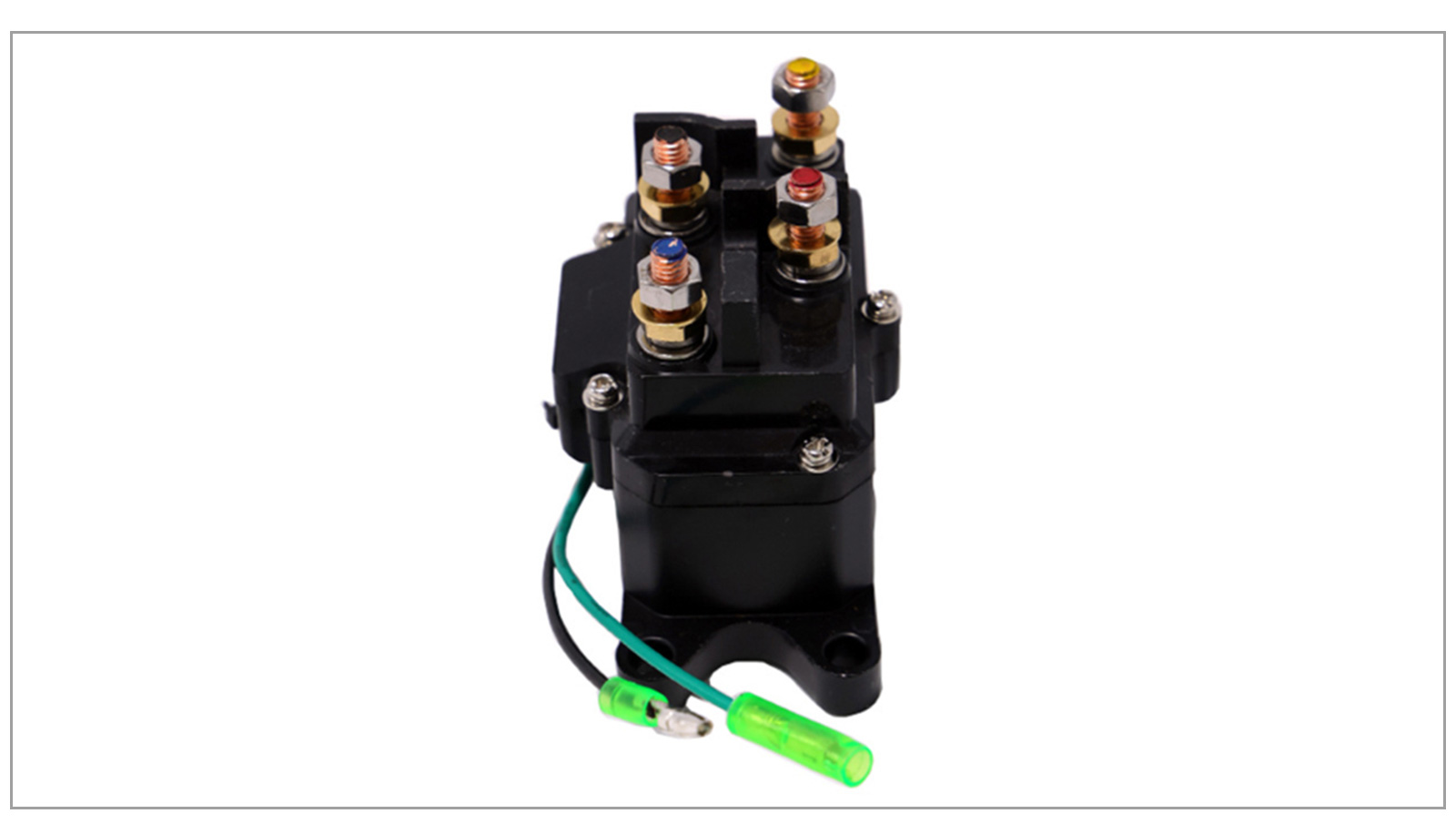

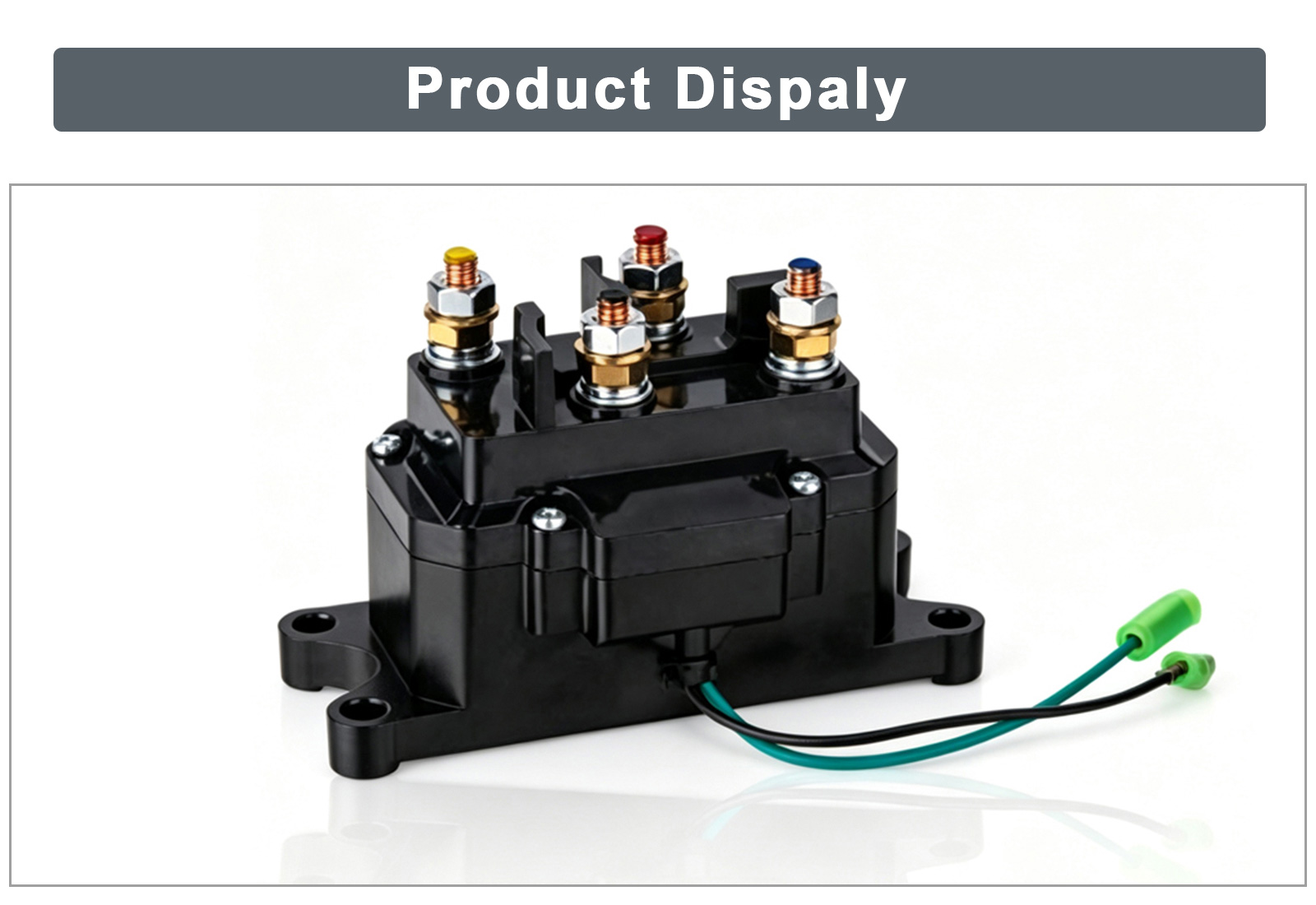

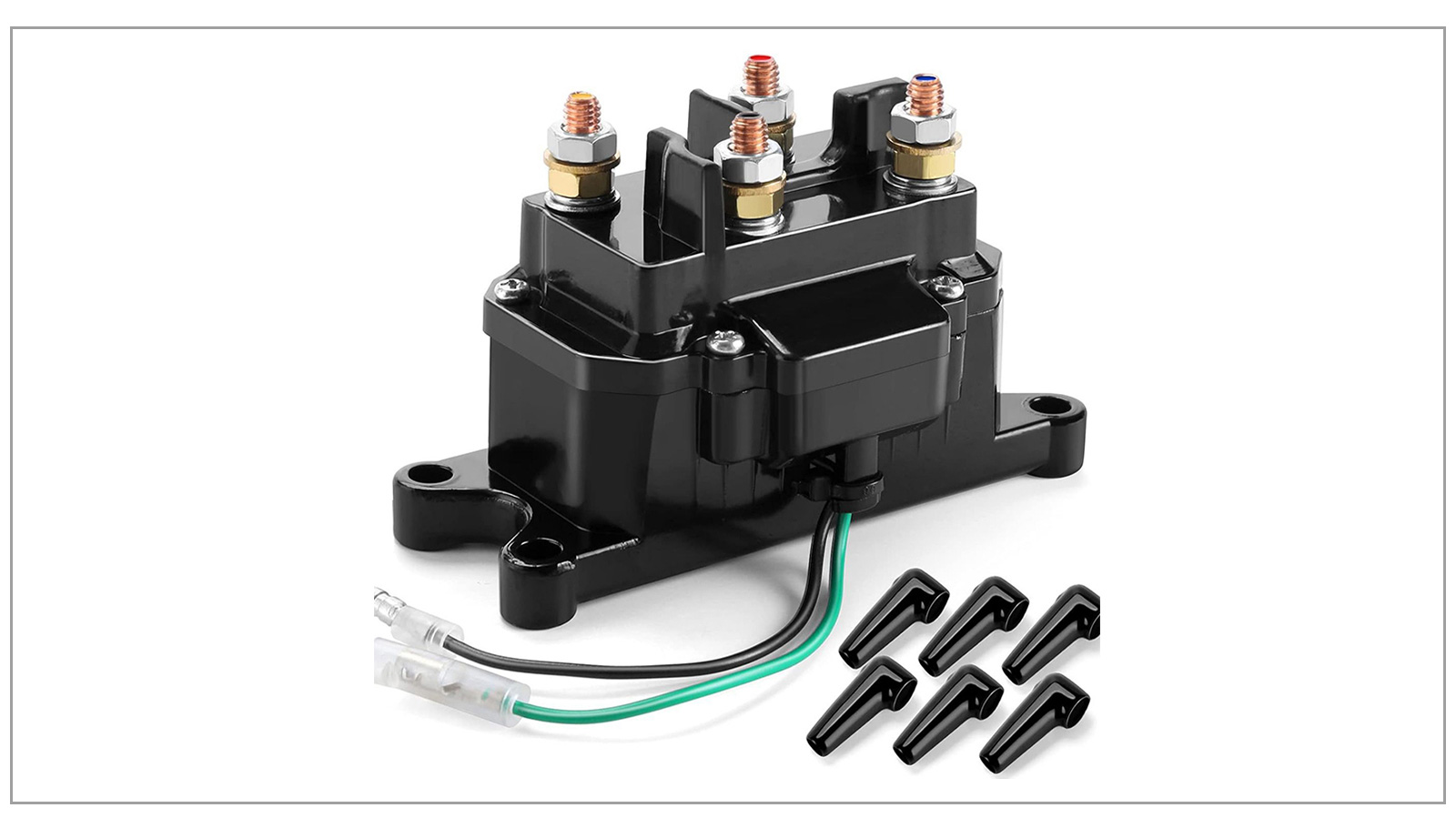

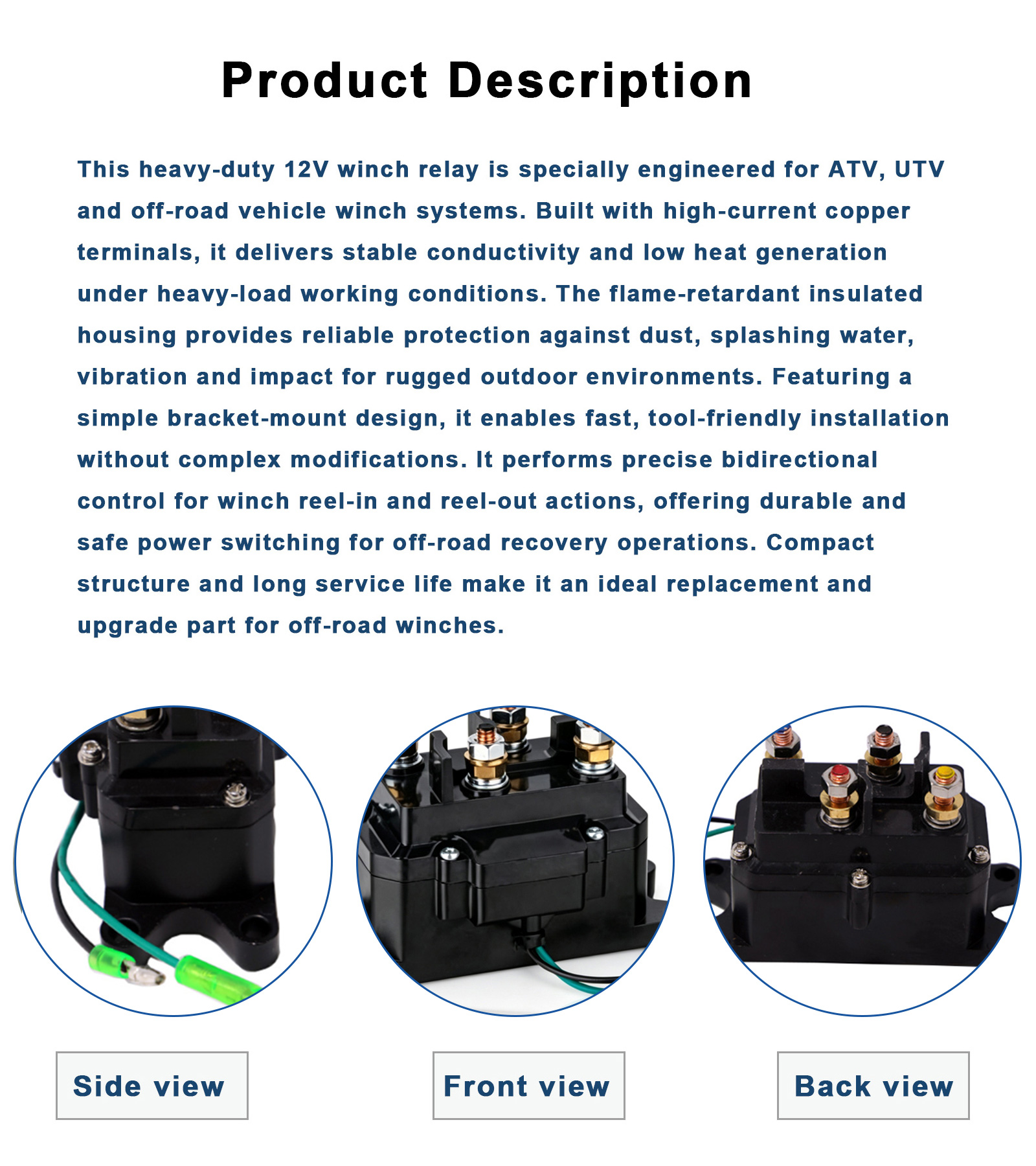

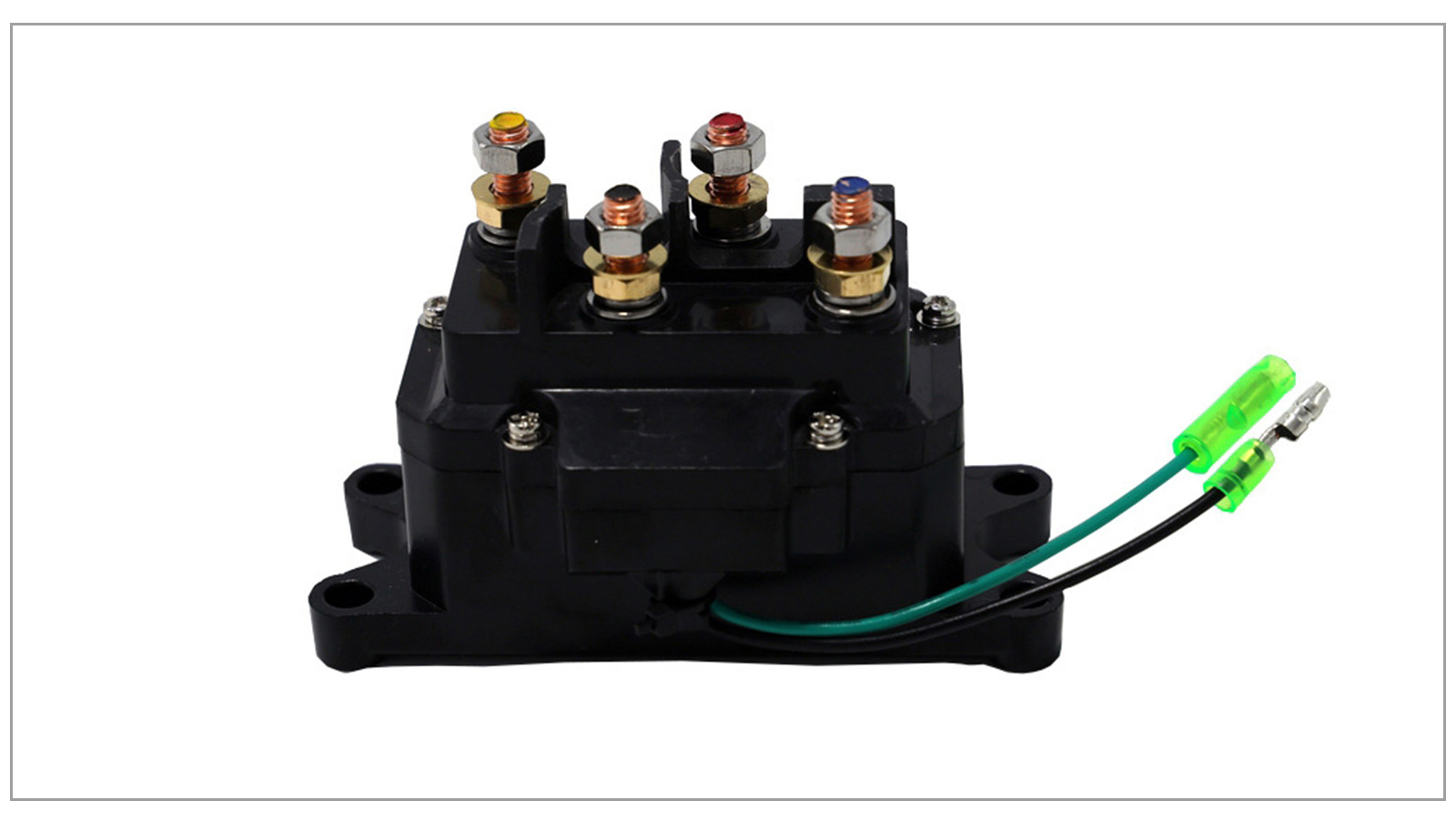

The ATV UTV Winch Solenoid Relay Contactor is a heavy-duty electrical switching component designed to control the power flow to your winch motor. Operating at 12V DC with a high current capacity of 250A, this solenoid contactor is engineered to handle winches rated up to 9000 LB, making it a reliable and essential part of your off-road recovery system. It acts as the main relay between your winch motor and battery, ensuring safe and efficient operation.

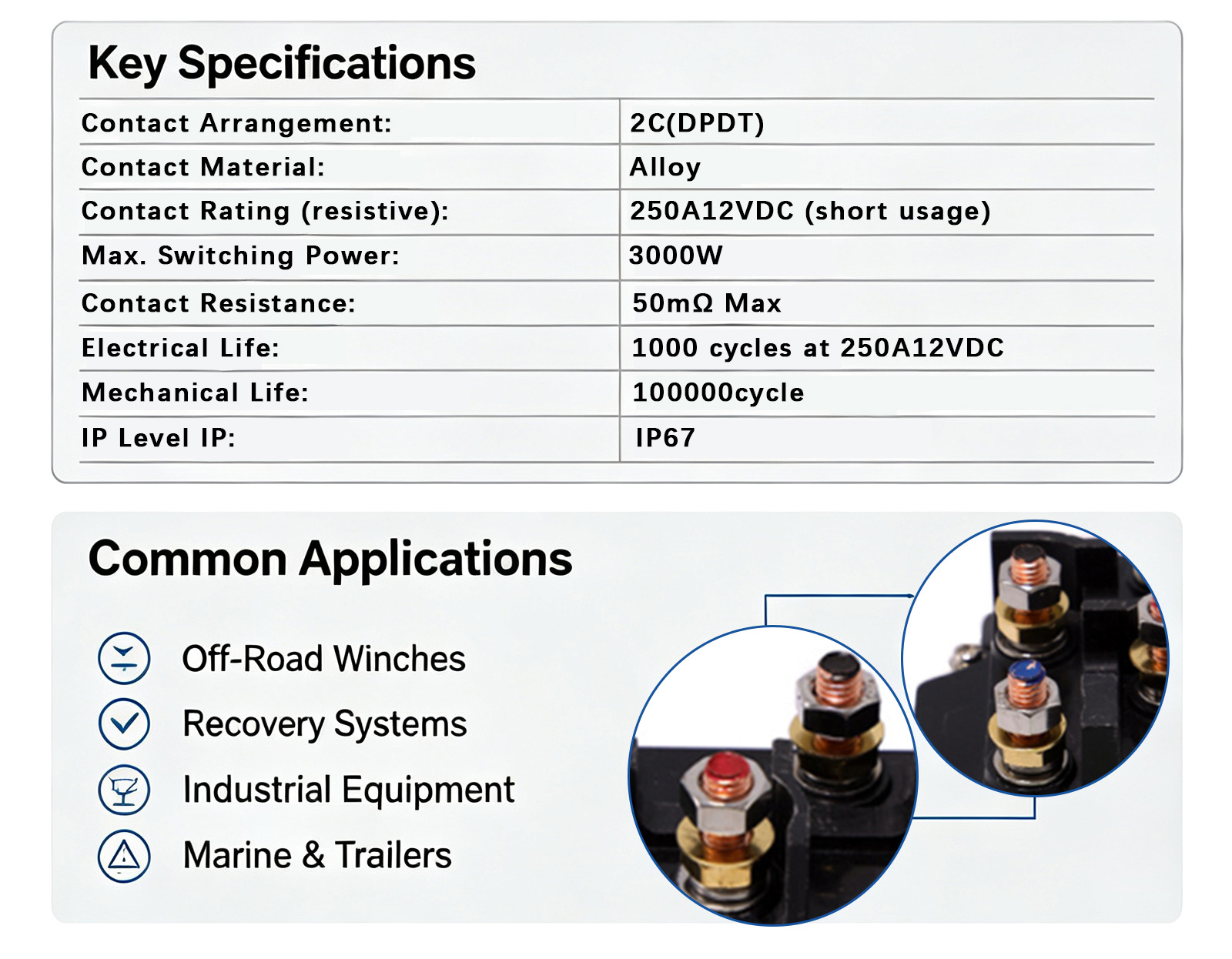

Specification

Features4300
Contact Arrangement2C(DPDT)
Contact MaterialAlloy
Contact Rating (resistive)250A12VDC (short usage)
Max. Switching Power3000W
Contact Resistance50mΩ Max
Electrical Life1000 cycles at 250A12VDC
Mechanical Life100000cycle
Nominal Voltage (VDC)12/24
Max continue Voltage (VDC)14.4 / 28.8
Coil Resistance Ω±10% at 20℃5.0 / 20
Pick up Voltage (VDC at 20℃)8.5 / 17
Release Voltage (VDC at 20 C)1.0 / 2.0
Coil Power (W)28.8
Insulation Resistance100MΩ min (at 500VDC)
Between contacts50Hz550VAC
Between contact and coil50Hz550VAC
Shock resistance10G
Vibration resistance10 to 50Hz at Double Amplitude of 1.5mm
IP Level IPIP67
Connection TypeConnector
Ambient Temperature-25 ~ +55℃
Relative Humidity98%(at 20℃)
Inner Packing size1308090mm
Each weight519g



Features


•High Current Capacity: Rated at 250A, providing robust power handling for demanding winching tasks.

•12V DC Operation: Compatible with standard 12-volt electrical systems found in most ATVs, UTVs, and off-road vehicles.

•Durable Construction: Built with high-quality materials to withstand harsh environments, including moisture, dust, and vibration.

•Corrosion-Resistant Terminals: Ensures long-lasting performance and reliable electrical connections.

•Compact & Universal Design: Easy to install and compatible with most winch brands and models up to 9000 LB.

•Reliable Switching: Provides consistent and safe engagement of the winch motor for both forward and reverse operation.

Application


•ATV and UTV winch systems

•Off-road vehicles, Jeeps, and SUVs

•Recovery and towing operations

•Utility winches for agricultural and industrial use

•Any 12V winch setup requiring a durable, high-amperage solenoid contactor
