Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan
Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan
Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan
Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan
Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan
Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan
Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan
Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan
Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan
Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan
Specifications
Supply Ability :
1000000PCS/Month
Pa :
192 231
Model Number :
35W 48W Stainless Steel Shell
Voltage :
220V
MOQ :
50
Delivery Time :
5-7 Days
Current :
0.27A 0.38A
Noise(dBA) :
50 60
Payment Terms :
D/P, T/T,Paypal, Western Union
Speed :
1953R/M 2541R/M
Price :
Negotiable
Wind Speed :
12M/S 15M/S
Certification :
ROHS
Input Power :
35W 44W
Brand Name :
TIAN RUI
Product Name :
Wall-Mounted Boiler Fan
Place of Origin :
China
Frequence :
50Hz
Packaging Details :
Plastic bag
Net Weight :
1.3kg 1.5kg
Description
Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan
Description

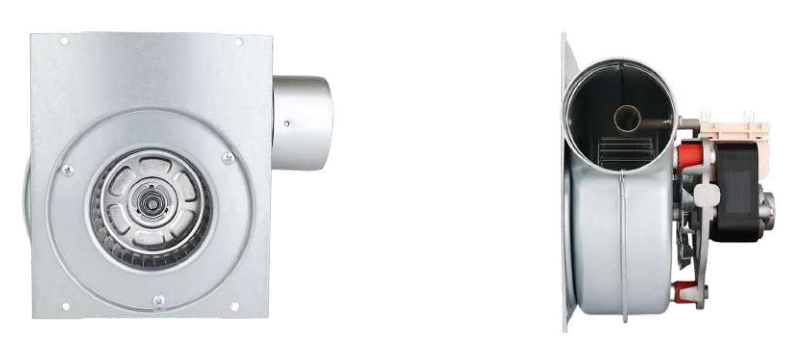

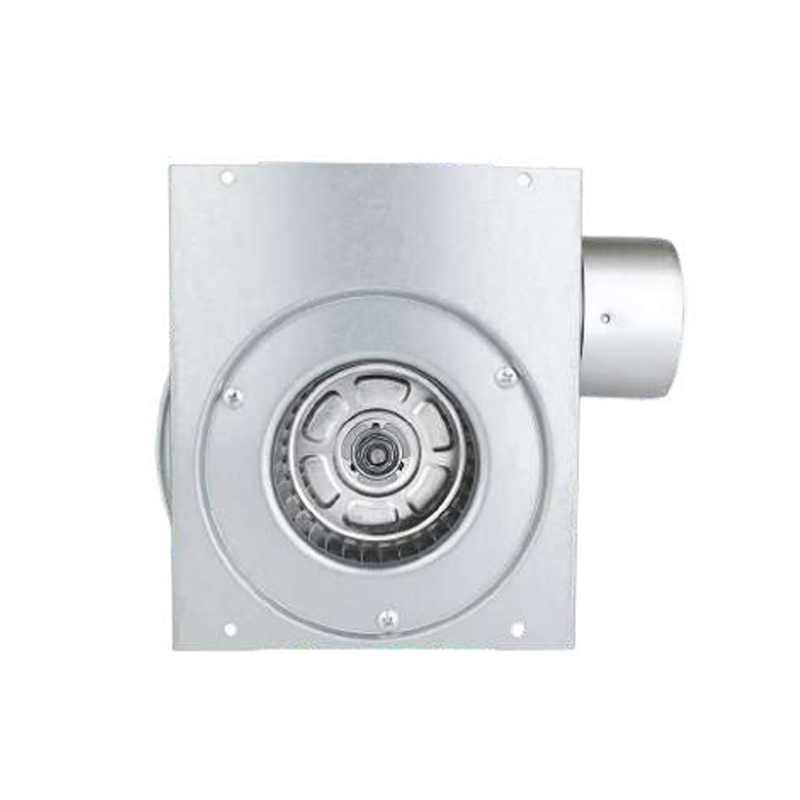

This shaded‑pole combustion fan is specially developed for wall‑hung boiler equipment, available in 35W, 44W, 48W power options. The product adopts galvanized metal housing, displayed from front assembly view and motor‑side structure view. It provides stable airflow for boiler combustion supporting and flue gas exhausting, featuring compact structure to fit the limited inner space of wall‑mounted heating boilers.

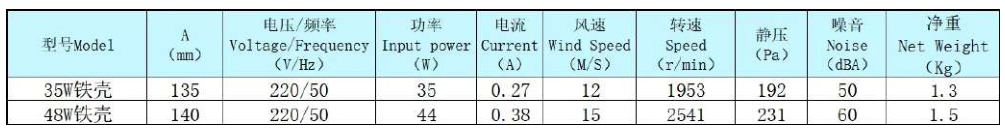

Specification
Product Name Wall-Mounted Boiler Fan
Voltage 220V
Input Power 35W 44W
Frequence 50Hz
Shell Material Stainless Steel
Current 0.27A 0.38A
Wind Speed 12M/S 15M/S
Speed 1953R/M 2541R/M
Pa 192 231
Noise(dBA) 50 60
Net Weight 1.3kg 1.5kg


Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan

Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan

Shaded Pole Combustion Fan 35W 44W 48W Wall-hanging Boiler Fan

Features

Multiple power options: 35W / 44W / 48W, meet different boiler power‑matching requirements

Shaded pole motor design, stable operation, low noise and low vibration

Galvanized metal casing, high temperature resistance and corrosion resistance, long service life

Square flange mounting plate, easy positioning and installation for wall‑hung boilers

Centrifugal air‑wheel structure, high air supply efficiency for combustion‑aid and smoke discharge

Compact overall size, perfectly adapted to internal assembly space of heating equipment

Mature structure, easy maintenance and replacement for aftermarket repair



Application

Mainly applied to various wall‑hung gas boilers, heating furnaces and thermal heating appliances. Used for combustion air supply and flue gas exhaust, widely used in household heating equipment and boiler aftermarket replacement market.
