KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder
KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder
KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder
KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder
KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder
KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder
KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder
KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder
KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder
KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder
KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder
KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder
Specifications
MOQ :
1000PCS
Delivery Time :
5-7 Days
Finish :
Tin Tinned Brass
Dielectric Strength :
Min .AC500V.
Certification :
ROHS
Rated Voltage :
32VDC/250VAC
Model Number :
KCD3
Electrical :
Max.30A
Payment Terms :
D/P, T/T,Paypal, Western Union
Fuse Size :
ATU/ATC/ATO/ATY/0257/0287 blade fuse
Price :
Negotiable
Color :
Black
Supply Ability :
1000000PCS/Month
Contact Resistance :
Max. 50mΩ
Brand Name :
Tian Rui
Product Name :
Blade Fuse Holder
Place of Origin :
China
Body :
Nylon
Packaging Details :
100PCS/Bag
Insluation Resistence At 500V DC :
100MΩ Min
Description

KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder

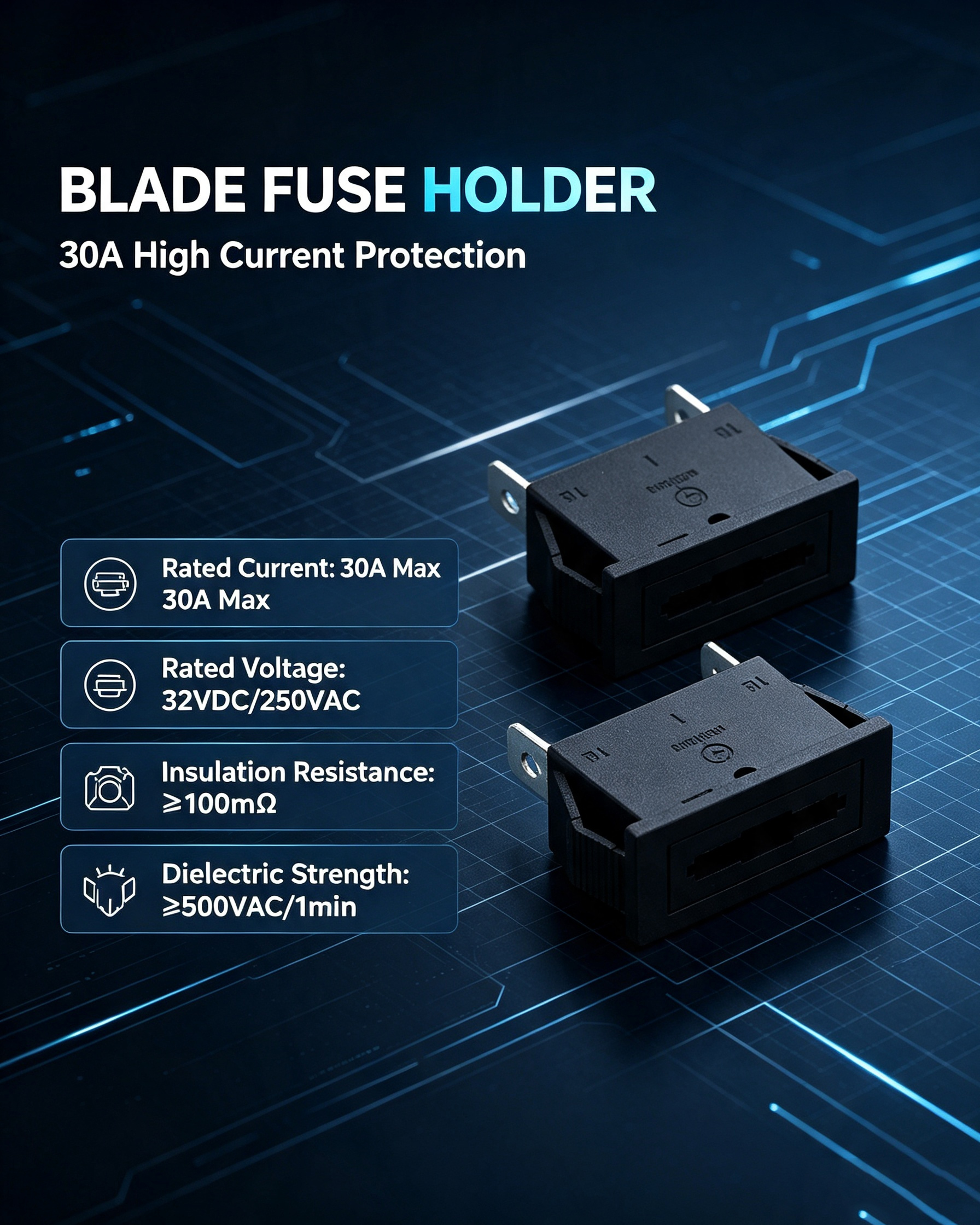

Specification

Name Blade Fuse Holder
Rated Current 30A Max
Rated Voltage 32VDC/250VAC
Housing Material PA66
Terminal Material Tinned Plated Brass
Color Black
Fits for ATU/ATC/ATO/ATY/0257/0287 blade fuse
Contact Resistance Max. 50mΩ
Insluation Resistence At 500V DC 100MΩ Min
Dielectric Strength Min .AC500V.

KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder

KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder

KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder

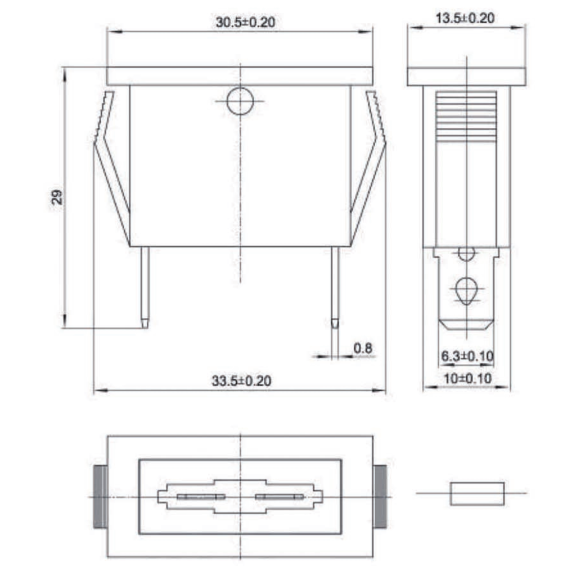

Dimension(mm)

KCD3 2PIN 15A 30A 32V DC 250V AC ATO ATC Blade Panel Mount Auto Fuse Holder

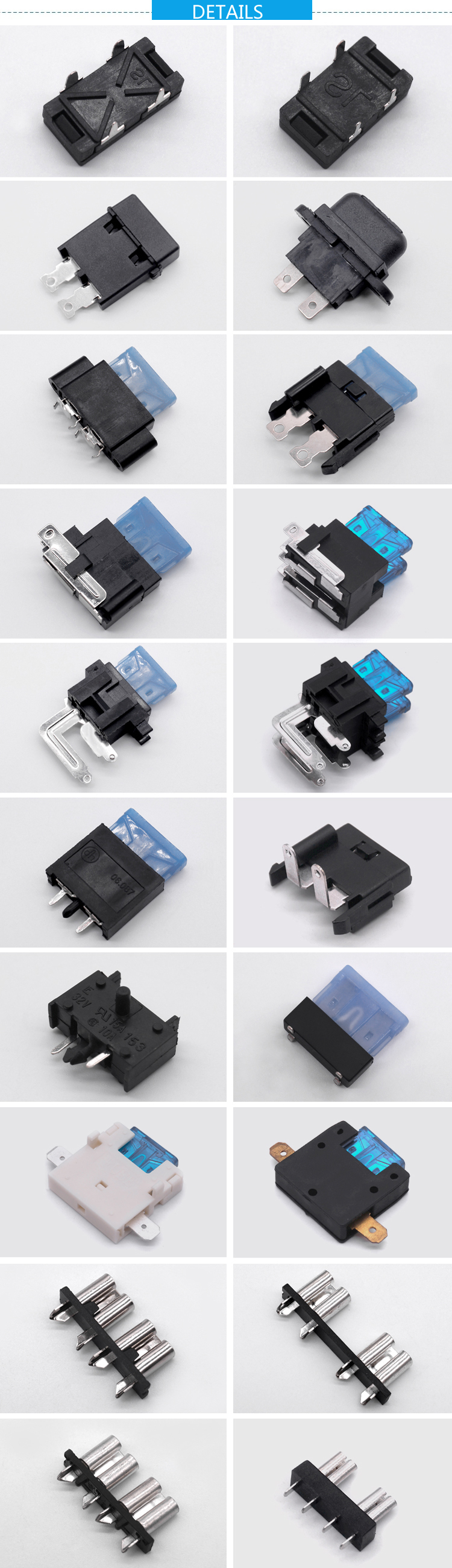

More Related Fuse Holders
