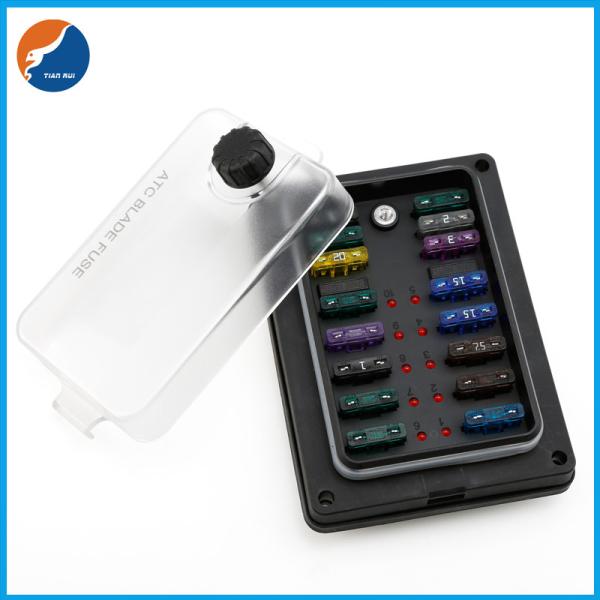

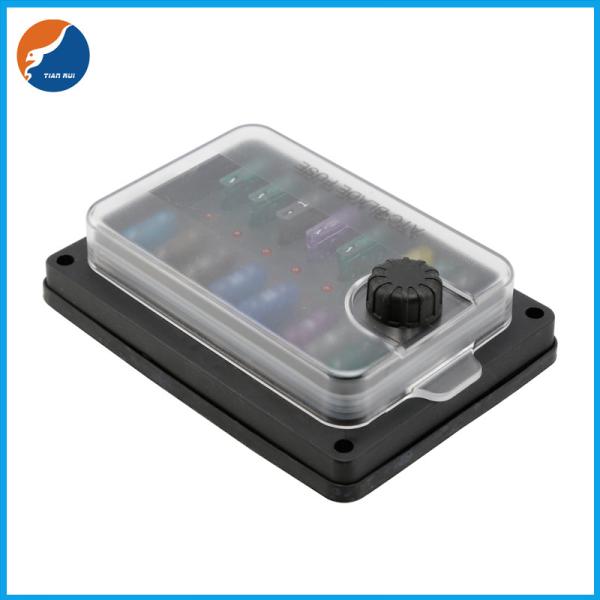

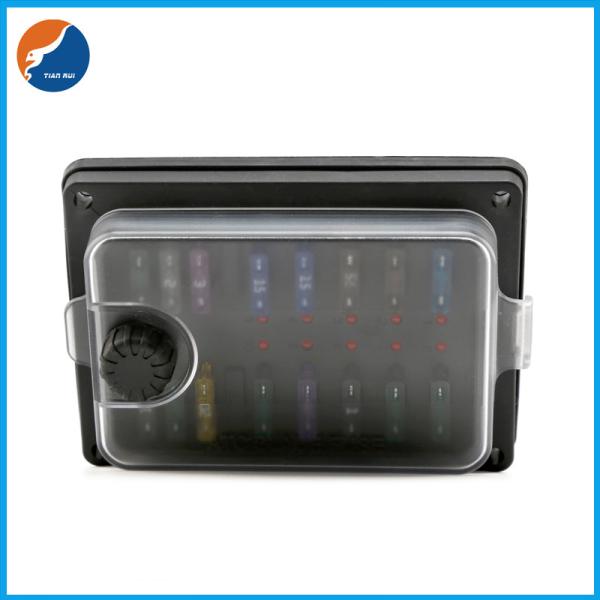

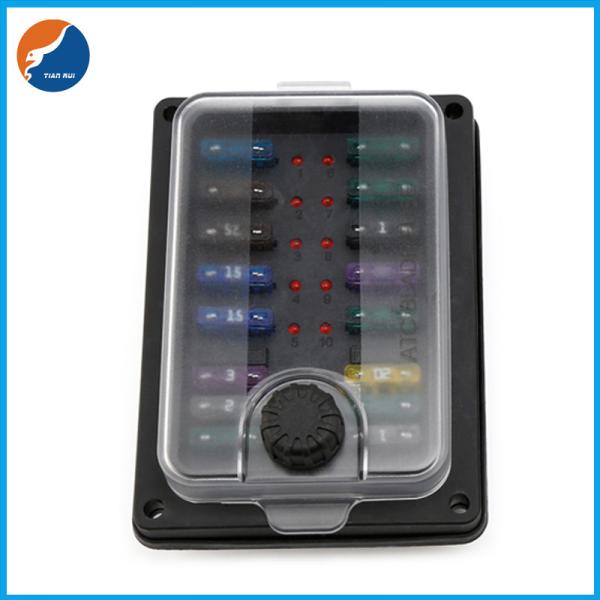

Marine Automotive Car Auto ATC ATO Blade Fuse Box Block LED Waterproof 10 Way Fuse Holder

●Rated voltage(Max): 32V DC

●Output Teminal Rating: 25A max. load per circuit

●Terminal Wire Size: #10-16 AWG

●Fuse Specifications: For ATC Blade Fuses Used Only

●Mounting Torque Rating: 8 in-lb (0.9Nm) max

●Environmental Rating: IP 56

●Temperature Rating: -25°C~85℃

●Fuse Insertion And Wthdrawal Forces Rating: Insection: 17Lb(76N) max. [1st]
Withdrawal: 17L(76N) max. [1st]

Description of LED Waterproof 10 Way Fuse Holder

WATERPROOF CONSTRUCTION - The included clear lens protects the circuits from dust and water while provide convenience for one to see the fuses and the LED indicator lights.

INDEPENDENT POWER INPUT - Each circuit has its own power input and is capable of handling a load of up to 25 amps at 12V DC. Maximum input voltage is rated at 32V.

RUGGED CONSTRUCTION - Waterproof grommet and clear lens included for maximum protection. Thumbscrew is included to keep the clear lens in position.

MARINE & EXTERIOR READY - A must have for moisture heavy environment such as any marine vehicles(boats), and perfect for applications that require exterior placement such as Polaris, Side-By-Side, sandrails, trailers, RVs and more.


Interchangeable/Compatible with
All automobiles and devices equipped with a 10-32 Volt DC power source.


Features of LED Waterproof 10 Way Fuse Holder

•10 way fuse box, 5A 7.5A 10A 15A 20A 25A fuses

•with red LED warning indicator,if a fuse blows the red LED next to the problem fuse,illuminates allowing for fast and hassle free idetification of a fault

•IP56 waterproof rating,has a clear pc cover and screw fastener to prtects the circuits and fuses from dust, sand,splashes and debris. waterproof grommet and clear lens are included for maximum protection

•Backside hook-up terminal design,allows you to mount it into any 2.4*3.7 sized panel hole,convenient for hiding all wires

•Widely used for car,boat,marine,caravan,yacht and so on


Applications of LED Waterproof 10 Way Fuse Holder

Cars, villas, RV, buses, yachts, boats, electrical appliances, new energy machines and other electrical appliances such as: roof lights, car headlights, width lights, fog lights, warning lights, Car refrigerator, car charger, car fan, car TV, etc.

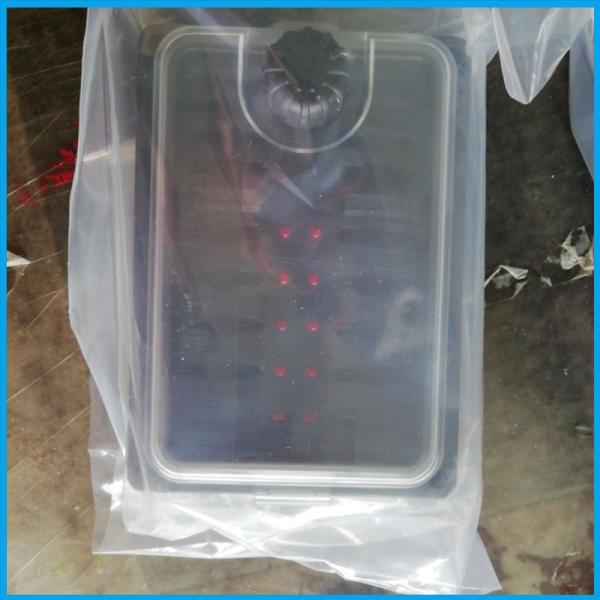

Product Content of LED Waterproof 10 Way Fuse Holder

1 x Fuse Box with Cover (Fuse not inculde)


Product Dimension(Unit:mm) of LED Waterproof 10 Way Fuse Holder




Wiring Schematic Diagram of LED Waterproof 10 Way Fuse Holder

Installation Diagram of LED Waterproof 10 Way Fuse Holder
