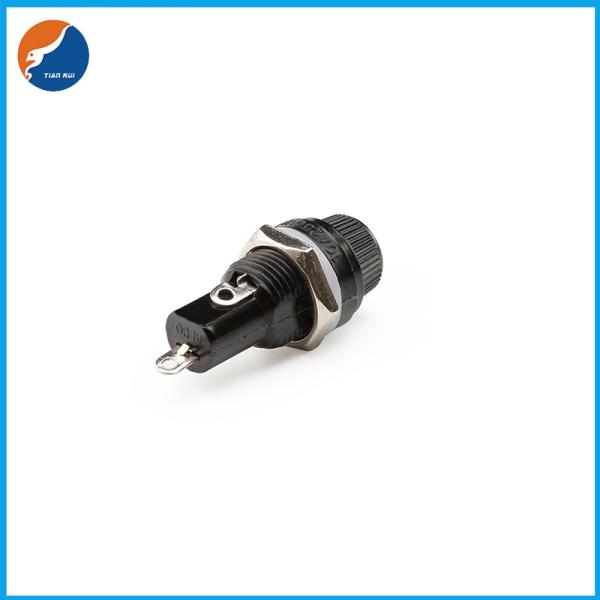

OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse
OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse
OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse
OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse
OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse
OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse
OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse
OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse
OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse
OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse
Specifications
Brand Name :
Tian Rui
Model Number :
OP520
Certification :
ROHS
Place of Origin :
China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Western Union
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
1000PCS/Bag
Electrical :
10A 250V
Fuse :
5.0x20mm
Insulating Body :
Nylon
Mounting :
Panel Mount
Terminal Material :
Nickel-plated copper alloy
Terminal Direction :
Right angle
Type :
Solder type
Color :
Black
Breaking Capacity :
High
Packing :
PE bag
Description

OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse

Model No. OP520

Rating: 10A 250VAC

Fuse Size: Φ 5.2 X 20 mm

Insulation resistance: DC 500V 100MΩ Min

Voltage breakdown AC 1500V 1 minute

Specification

Electrical Rated at 10A 250VAC
Fuse 5.0x20mm
Insulating Body NYLON
Konb

Screw-driver slot fuse extractor type with nickel-plated copper alloy insert. Spring loaded.
Terminals Nickel-plated copper alloy,right angle teminal,solder type.

Features

The durable PBT shell material is not easy to corrode
The metal clip has strong electrical conductivity and has an overload fuse protection function
Panel installation is simple and convenient to strictly follow safety standards

Application

Circuit overload protection, automotive electronics, household appliances, beauty equipment, medical equipment, instrumentation, consumer electronics, industrial controllers

OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse

OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse

OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse

Drawing

OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse
