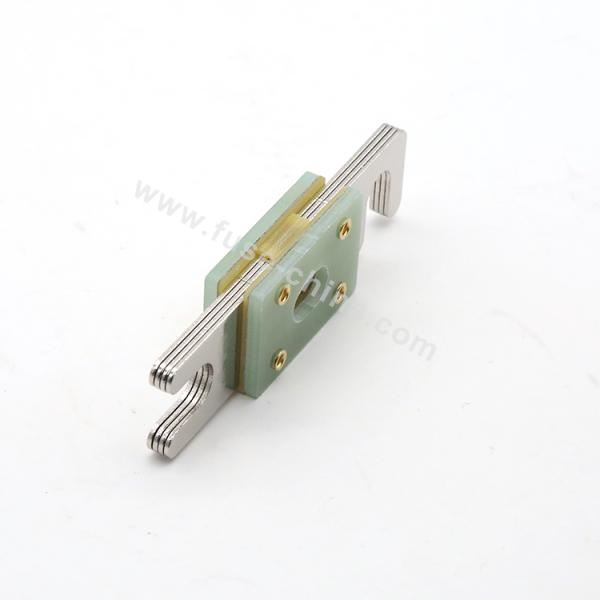

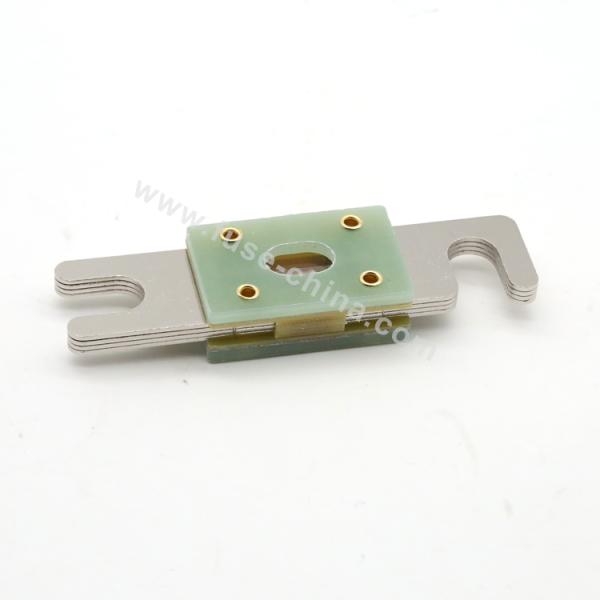

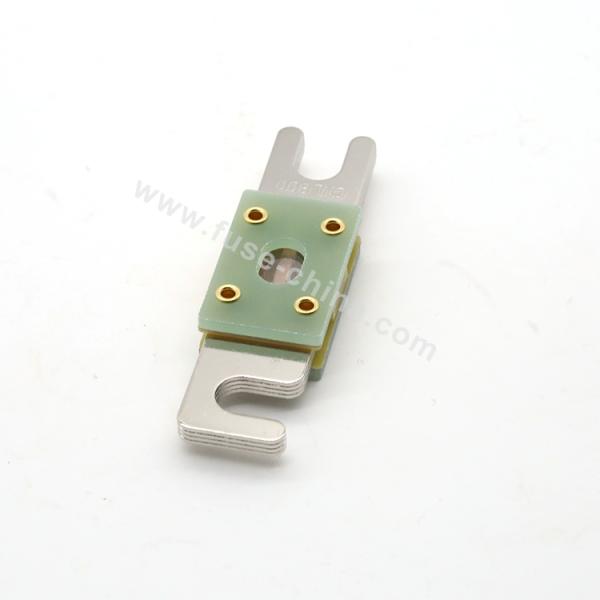

32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse
32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse
32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse
32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse
32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse
32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse
32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse
32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse
32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse
32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse
32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse
32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse
Specifications
Brand Name :
Tian Rui
Model Number :
CNL Series
Certification :
ROHS
Place of Origin :
China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Western Union
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
1000PCS/Bag
Product Name :
CNL Fuse
Rated Current :
35A-800A
Rated Voltage :
80VDC
lnsulating Case :
Bonded Fibreglass
Fusible :
Cooper Alloy with Ni Plated
Rivet :
Brass Alloy
Transparent Sheet :
MICA
Usage :
Automotive
Type :
Large Stud fuse
Color :
Green
Description

32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse

Non-time-delay low voltage limiter fuse for use in isolating faults in battery operated systems,Lift trucks, scissor lifts, pallet movers, and other low voltage battery operated equipment used to move hazardous materials.

Specification

Product Name: CNL Fuse

Rated Current: 35A to 800A

Rated Voltage: 80VDC

Insulating Case: Bonded Fibreglass

Fusible: Cooper Alloy with Ni Plated

Rivet: Brass Alloy

Transparent Sheet: MICA

32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse

32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse

32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse

32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse

32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse

32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse

32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse

Features

Element visible through clear window to easily identify open status
2,700 A interrupting rating @80VDC
6,000 A interrupting rating @32VDC
Compact size saves space
RoHS compliant and lead free
Volts 80Vdc or less
Amps 35-800A
Stud centers: D= 62mm

Functional Characteristics

TESTING CURRENT BLOW TIME LIMIT
160% I<300A 5Seconds Min
I>=300A 20seconds Min
200% I<300A 1sec-30sec
I>=300A 2sec-120sec

Catalogue Numbers and Resistance

P/N RATING Rm(20°C)mΩ
CNL-35 35A 3.43∽4.19
CNL-40 40A 2.88∽3.53
CNL-50 50A 2.21∽2.71
CNL-60 60A 1.80∽2.20
CNL-80 80A 1.31∽1.60
CNL-100 100A 0.77∽0.94
CNL-125 125A 0.61∽0.74
CNL-130 130A 0.51∽0.63
CNL-150 150A 0.45∽0.55
CNL-175 175A 0.39∽0.47
CNL-200 200A 0.33∽0.41
CNL-225 225A 0.29∽0.35
CNL-250 250A 0.25∽0.30
CNL-275 275A 0.22∽0.27
CNL-300 300A 0.20∽0.25
CNL-325 325A 0.18∽0.22
CNL-350 350A 0.15∽0.18
CNL-400 400A 0.12∽0.15
CNL-500 500A 0.11∽0.13
CNL-600 600A 0.08∽0.11
CNL-675 675A 0.06∽0.075
CNL-700 700A 0.058-0.072
CNL-750 750A 0.056∽0.07
CNL-800 800A 0.053∽0.067
