Product Description:

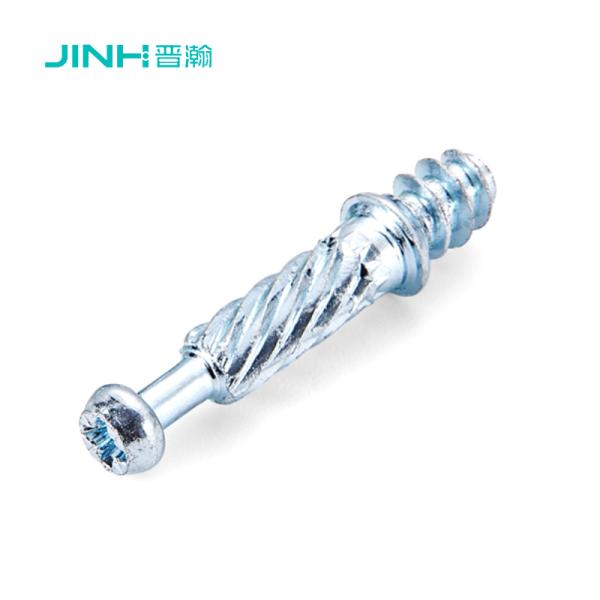

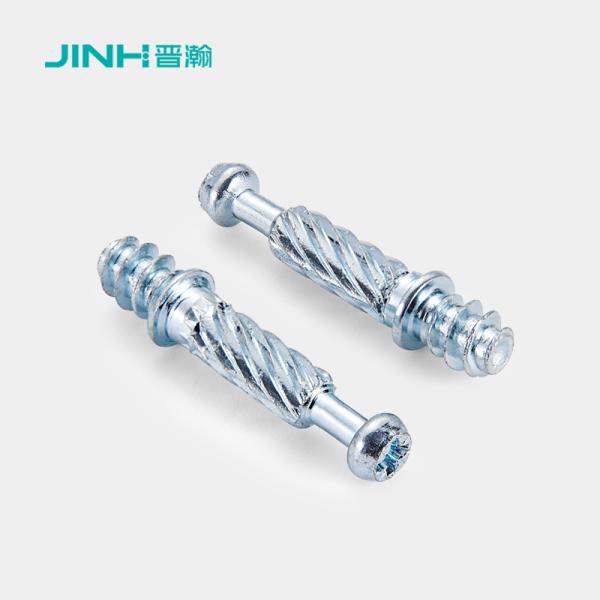

The JH-2170 Eccentric Connecting Screw​​ is an essential hardware component designed for robust and concealed assembly in flat-pack furniture, particularly cabinets and wardrobes. This high-strength bolt forms the critical link between panels, working seamlessly with the eccentric cam to create tight, durable joints. Manufactured by Jinhan, a trusted leader in OEM/ODM furniture hardware solutions, this screw meets stringent international quality standards.

​​Key Features:​​

• ​​Engineered for Strength:​​ Constructed from high-grade ​​cold drawn carbon steel​​ for superior tensile strength and resistance to stripping.
• ​​Enhanced Corrosion Resistance:​​ Features ​​blue zinc plating (electroplated)​​ surface treatment, providing a protective barrier against rust and tarnishing, essential for furniture longevity.
• ​​Optimal Length & Compatibility:​​ With a ​​32mm total length​​, it is ideally suited for connecting panels with a ​​minimum thickness of 15mm​​, a common standard in modern flat-pack furniture.
• ​​Reliable Performance:​​ Designed to withstand assembly torques ​​up to 12 Newton-meters (N.m)​​, ensuring a secure and wobble-free connection.
• ​​Salt Spray Protection:​​ Undergoes salt spray testing (24H/48H), demonstrating its effectiveness in resisting corrosion in challenging environments.
• ​​Concealed Connection:​​ Enables the popular hidden fastener design, contributing to a clean and aesthetically pleasing furniture finish.

​​Technical Specifications:​​

Jinhan Hardware operates under the stringent ​​ISO 9001:2015 certified quality management system​​, guaranteeing consistent product quality and reliable performance for every batch. This JH-2170 Eccentric Connecting Screw is backed by independent ​​SGS test certificates​​, validating its adherence to claimed specifications including strength and corrosion resistance.

As a long-term strategic partner to numerous leading high-end kitchen cabinet and wardrobe customization enterprises within China, Jinhan understands the exacting requirements of professional furniture manufacturing. We deliver OEM/ODM hardware solutions trusted by global brands for assembly efficiency and enduring quality.

Product Details:

JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf
