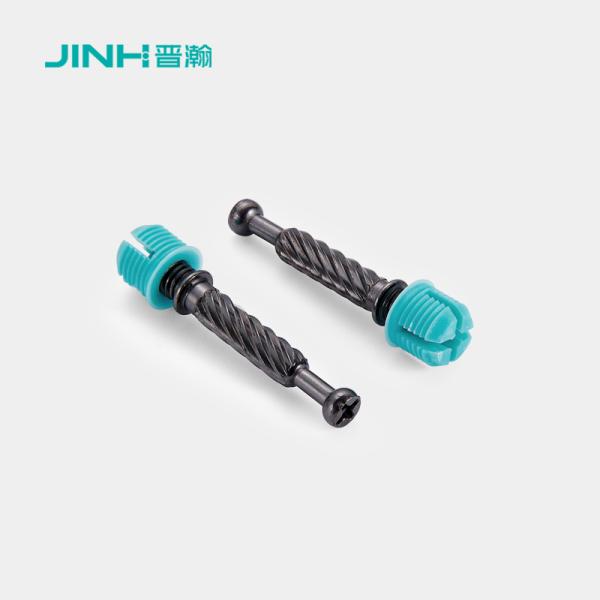

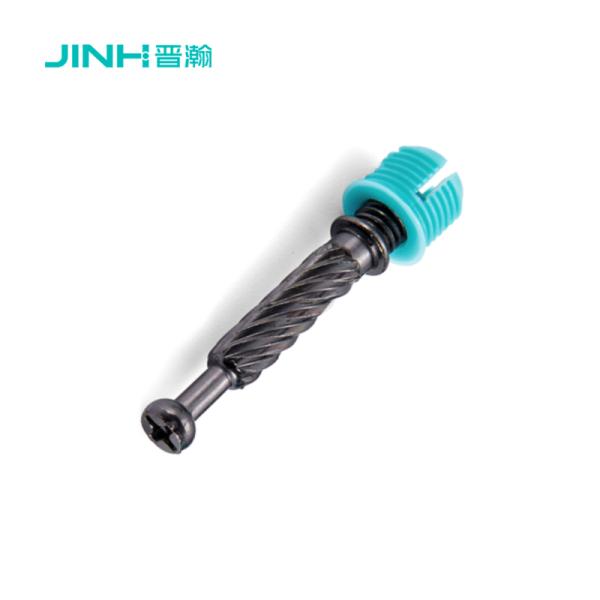

​​JH-2168 Furniture Cam Lock Screw Expansion Bolt Cold-Drawn Steel Nylon Black Nickel Plating 40mm Length for 15mm-40mm Panels
​​JH-2168 Furniture Cam Lock Screw Expansion Bolt Cold-Drawn Steel Nylon Black Nickel Plating 40mm Length for 15mm-40mm Panels
​​JH-2168 Furniture Cam Lock Screw Expansion Bolt Cold-Drawn Steel Nylon Black Nickel Plating 40mm Length for 15mm-40mm Panels
​​JH-2168 Furniture Cam Lock Screw Expansion Bolt Cold-Drawn Steel Nylon Black Nickel Plating 40mm Length for 15mm-40mm Panels
Specifications
Brand Name :
JINHAN
Model Number :
JH-2168
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
5000 Pieces
Price :
US$ 0.001-0.1/Piece
Payment Terms :
L/C, D/P
Supply Ability :
5000000 Pieces per Month
Delivery Time :
15 days
Packaging Details :
cartons
Fastening Type :
Cam Lock & Expansion Insert
Alternative Name :
Furniture Connector System
Core Material :
Carbon Steel / Engineering Nylon
Surface Coating :
Black Nickel Electroplating
Torque Tolerance :
12N·m Maximum
Fixation Principle :
Radial Expansion Locking
Compatible Board Thickness :
15mm - 40mm (Optimal at 18-25mm)
Commercial Type :
OEM/ODM Industrial Hardware
Description

Product Description:

Advanced Dual-Component Fastening Solution for Flat-Pack Furniture Assembly​​
Jinhan (JH-2168) provides a complete concealed connection system for modular furniture manufacturing. Engineered to withstand high-stress joints in cabinets, wardrobes, and shelving units.

​​Key Features​​

  • ​​Robust Dual Mechanism​​: Combines a steel cam screw with nylon expansion insert for load distribution and vibration resistance.
  • ​​Corrosion-Resistant Coating​​: Electroplated black nickel finish passes 24H/48H salt spray tests (ASTM B117), ideal for humid environments.
  • ​​Material Integrity​​: Grade-certified cold-drawn carbon steel bolt ensures structural stability under up to 12N·m torque loads.
  • ​​Friction-Lock Technology​​: Expansion insert grips panel bores securely when tightened, eliminating joint wobble.
  • ​​Streamlined Installation​​: Single-bore drilling compatibility with industry-standard 15mm-25mm board thicknesses.

​​Technical Specifications​​

Parameter Specification
Product Type Eccentric Cam Fastening System
Components Steel Screw Rod + Nylon Expansion Bolt
Total Length 40mm ±0.5mm
Material Bolt: Carbon Steel / Insert: Nylon PA6
Surface Finish Electroplated Black Nickel
Torque Resistance 12N·m Max
Panel Compatibility 15mm+ thickness
Salt Spray Test 24H (Base), 48H (Extended by request)

​​Quality Assurance​​
• ISO 9001:2015 certified manufacturing process
• SGS-tested for mechanical strength & corrosion resistance (Reports available upon request)
• Trusted by premium cabinet manufacturers for OEM/ODM solutions.
