Product Description:

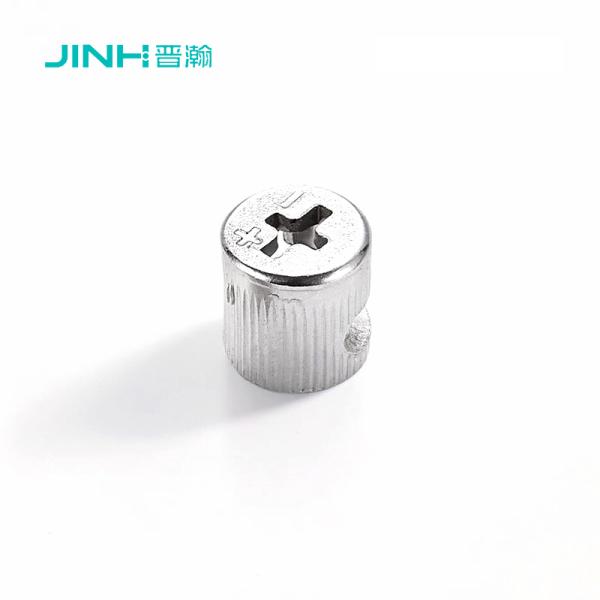

JINHAN JH-1045 Premium Minifix Cam Lock: The Strong & Secure Concealed Connection​​

Elevate your cabinet, wardrobe, and storage unit assemblies with the JINHAN JH-1045 Minifix Cam Lock. Engineered for superior strength and reliability, this eccentric connector component outperforms typical zinc alloy alternatives. Crafted from high-quality cold-rolled carbon steel and precision plated with nickel, the JH-1045 offers exceptional durability and resistance to wear, ensuring long-lasting connections in demanding furniture applications. Its innovative design guarantees secure and flush-mounting for a clean, professional finish.

​​Key Features & Advantages:​​

• ​​Superior Material:​​ Made from premium ​​cold-rolled carbon steel​​, offering ​​significantly higher strength and durability​​ than commonly used zinc alloy cam locks.
• ​​Enhanced Grip & Security:​​ Features ​​prominent vertical ribs on BOTH the inner and outer surfaces​​ of the cam, ​​maximizing friction​​ against the mating part (stud) to prevent loosening and ensure a ​​more reliable, long-lasting hold​​.
• ​​Flawless Aesthetics:​​ Designed for ​​concealed installation​​ within the panel hole, creating a ​​clean, professional appearance​​ without visible hardware.
• ​​Protective Finish:​​ High-quality ​​nickel plating​​ provides excellent ​​corrosion resistance​​ and a smooth, durable surface.
• ​​Optimized Dimensions:​​ Precisely designed with a ​​12mm diameter and 13.5mm height​​ for compatibility with standard ​​13.5mm drilling depth​​ in panels.
• ​​Wide Compatibility:​​ Ideal for connecting panels in a vast range of ​​cabinets, wardrobes, closets, storage units, and other built-in furniture​​.

​​Technical Specifications:​​

​​Quality & Reliability Assurance:​​
JINHAN is committed to manufacturing excellence. We are certified to ​​ISO 9001:2015​​ standards, ensuring stringent quality control throughout our production processes. Our products, including the JH-1045 Cam Lock, undergo rigorous independent testing, and relevant performance certifications are available upon request. As a trusted ​​long-term strategic partner to numerous leading high-end cabinet and wardrobe customizers across China​​, JINHAN delivers the quality and reliability demanded by professional manufacturers.

JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf

Product Details:
