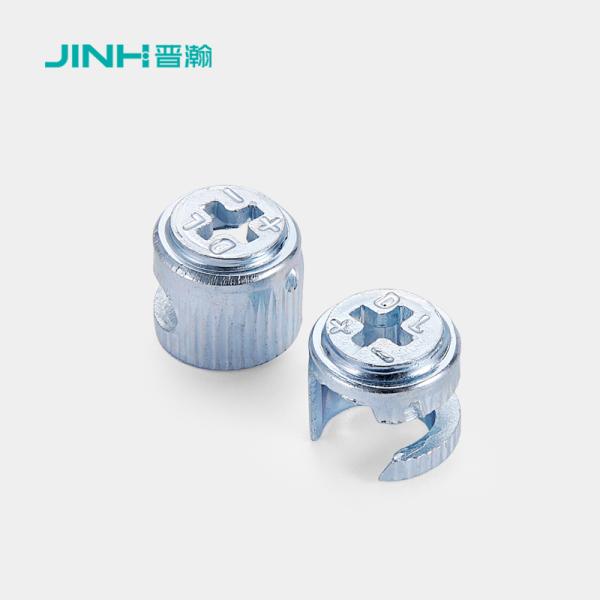

JH-1049 zinc plated cam lock | Ø12mm x H13.5mm | Cold Rolled Carbon Steel
JH-1049 zinc plated cam lock | Ø12mm x H13.5mm | Cold Rolled Carbon Steel
JH-1049 zinc plated cam lock | Ø12mm x H13.5mm | Cold Rolled Carbon Steel
JH-1049 zinc plated cam lock | Ø12mm x H13.5mm | Cold Rolled Carbon Steel
Specifications
Brand Name :
JINHAN
Model Number :
JH-1049
Certification :
ISO 9001:2015
Place of Origin :
Guangdong, China
MOQ :
5000 Pieces
Price :
US$ 0.001-0.1/Piece
Payment Terms :
T/T, L/C
Supply Ability :
5000000 Pieces per Month
Delivery Time :
15-30 days
Packaging Details :
by carton
Common Aliases :
Eccentric cam fastener, furniture lock cam
Material :
Cold rolled carbon steel SPCC
Coating Type :
Electroplated blue zinc
Friction Mechanism :
Anti-rotation vertical ridges
Installation Type :
Concealed (in-panel)
Load Capacity :
High shear strength for dynamic loads
​​Ideal Panel Thickness :
16-25mm (standard board)
Industry Standards :
EN 320, ASTM A1008
Description

Product Description:

The JH-1049 Minifix Cam Lock by JINHAN revolutionizes panel furniture assembly with its robust engineering. Crafted for seamless integration, this eccentric cam lock ensures superior durability and aesthetics. Ideal for modern furniture manufacturers seeking reliability and sleek design.

​​Key Features:​​

  • ​​Industrial-Grade Material:​​ Cold rolled carbon steel (vs. standard zinc alloy) for unmatched tensile strength and longevity.
  • ​​Secure Grip Technology:​​ Vertical ridges inside/outside the cam increase friction, preventing slippage under load.
  • ​​Hidden Installation:​​ Flush-mounted design maintains clean lines for premium furniture aesthetics.
  • ​​Corrosion Resistance:​​ Blue zinc plating protects against rust and wear in humid environments.
  • ​​Plug-and-Play Compatibility:​​ Optimized for 13.5mm pre-drilled holes in MFC, particleboard, or plywood panels.

​​Specifications:​​

Parameter Value
Model JH-1049
Material Cold rolled carbon steel
Surface Finish Blue zinc plated
Installation Depth 13.5mm
Dimensions (Ø x H) 12mm x 13.5mm
Applications Cabinets, wardrobes, storage units

​​Quality Assurance & Credentials​​
JINHAN is ISO 9001:2015 certified, and this component complies with SGS safety standards. Trusted by elite cabinetry brands across China for precision hardware solutions. Partner with us for industrial-grade connectors that elevate furniture performance.

Product Details:

JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf

JH-1049 zinc plated cam lock | Ø12mm x H13.5mm | Cold Rolled Carbon Steel

JH-1049 zinc plated cam lock | Ø12mm x H13.5mm | Cold Rolled Carbon Steel

JH-1049 zinc plated cam lock | Ø12mm x H13.5mm | Cold Rolled Carbon Steel

JH-1049 zinc plated cam lock | Ø12mm x H13.5mm | Cold Rolled Carbon Steel

Packing Method:

3000/4000/5000pcs per carton or as per your requirements.

JH-1049 zinc plated cam lock | Ø12mm x H13.5mm | Cold Rolled Carbon Steel


JH-1049 zinc plated cam lock | Ø12mm x H13.5mm | Cold Rolled Carbon Steel
